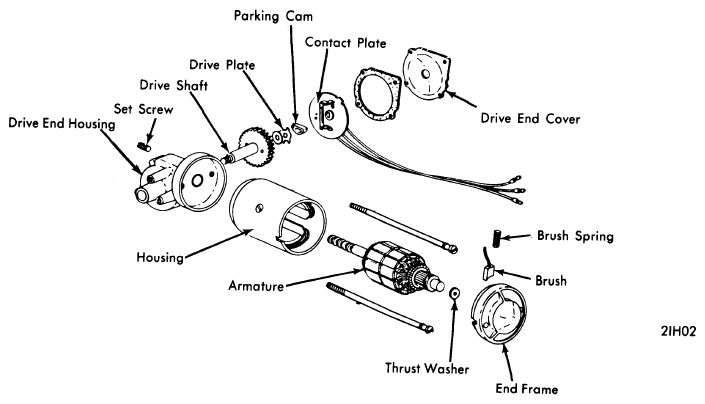

Cam Actuated Motor: Reassembly
- Solder coil leads to parking switch terminals. Position drive end housing on motor housing, then insert armature (worm gear end first) into motor housing. Insert thrust washer into commutator end frame bushing bore.NOTE: Both nylon and metal thrust washers should be assembled with metal disc at bottom of bore.
Install brush springs and brushes into brush holders.
NOTE: Brushes must move freely in holders. - Solder coil lead to insulated brush holder and position commutator end frame to motor housing. Install through bolts and tighten, while ensuring that armature retains end play as bolts are tightened. End play should be 0.002 - 0.007". If not within specifications, adjust at set screw and stake screw in place.
- Install spring washer to drive gear and shaft with convex surface facing drive gear. Install parking cam on shaft assembly with dotted end of cam in same direction as noted in disassembly. Place drive gear and shaft assembly in drive end housing bushing bore. Install spacer washer, crankarm and nut.CAUTION: Hold crankarm in vise before tightening nut to prevent stripping of gear teeth.
- Install gasket and parking switch contact plate. Install drive end housing cover on housing and tighten retaining screws. Install mounting bracket on housing.
