Exploded View

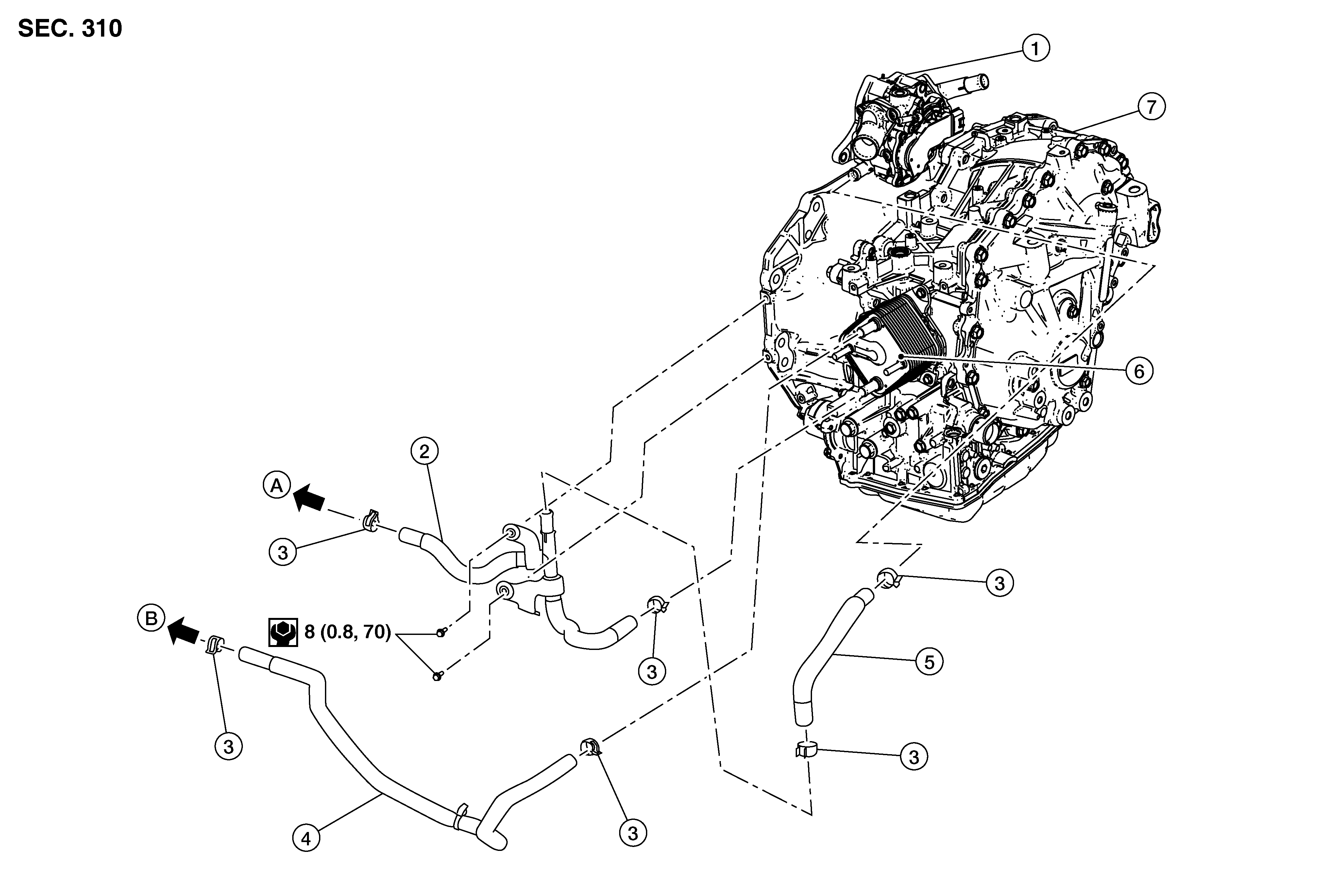

Fig 1: Water Hose With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Multi-way control valve	2.	CVT water hose A	3.	Hose clamp
4.	CVT water hose B	5.	CVT water hose C	6.	CVT oil warmer
7.	Transaxle assembly	A.	To oil cooler assembly. Refer to Exploded View .	B.	To water pump housing. Refer to Exploded View .
