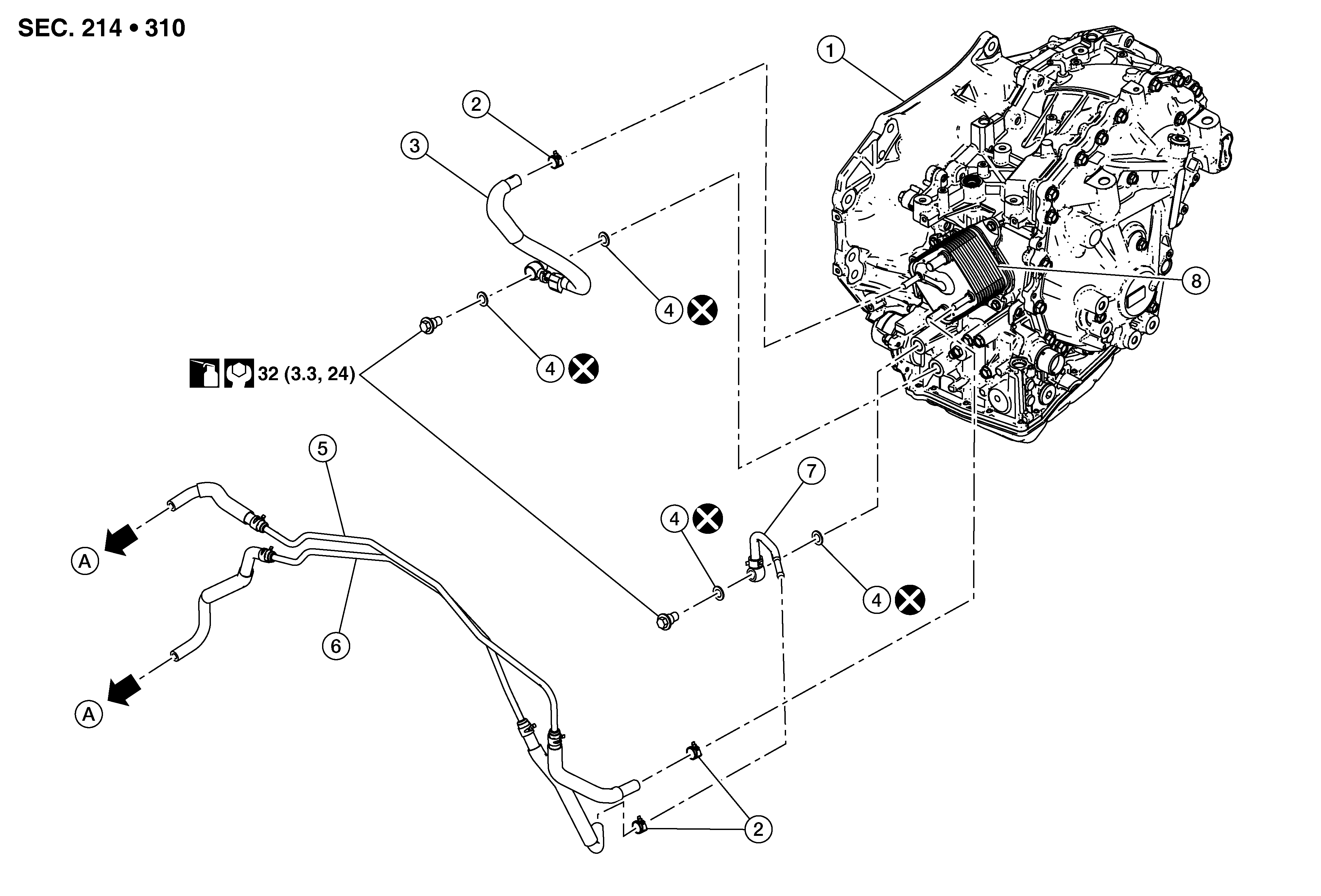

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Transaxle assembly |
2. |
Hose clamp |
3. |
CVT fluid cooler hose A |
| 4. |
Copper sealing washer |
5. |
CVT fluid cooler hose C |
6. |
CVT fluid cooler hose D |
| 7. |
CVT fluid cooler hose B |
8. |
CVT fluid warmer |
A. |
To radiator |
