Exploded View

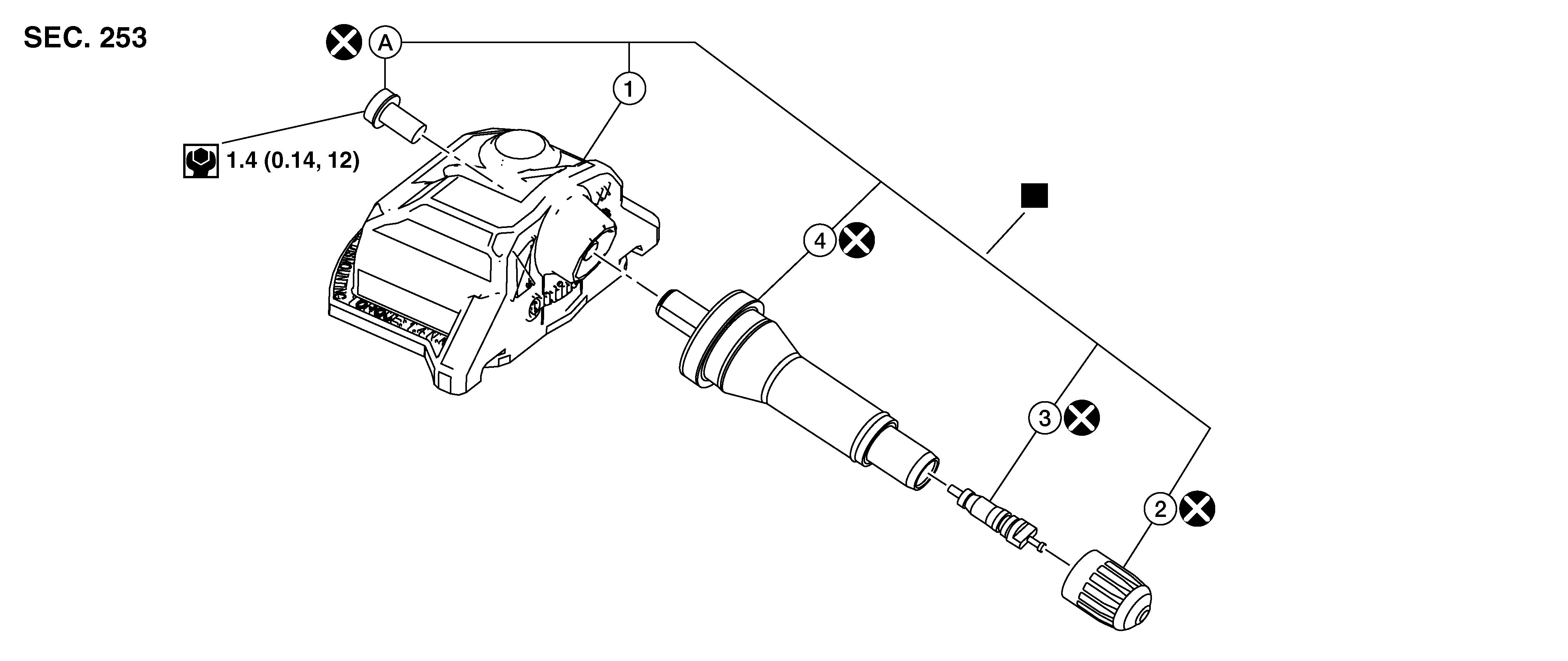

Fig 1: Tire Pressure Sensor With Torque Specifications
GNSDB127020Courtesy of NISSAN NORTH AMERICA, INC.
1. Tire pressure sensor 2. Valve cap 3. Valve core
4. Valve A. Screw
SYMBOL : Parts that are replaced as a set when the tire is replaced.
