Wheel And Tire Assembly: Adjustment

BALANCING WHEELS (ADHESIVE WEIGHT TYPE)

Preparation Before Adjustment

Remove inner and outer balance weights from the road wheel. Using releasing agent, remove double-faced adhesive tape from the road wheel.

Wheel Balance Adjustment

• If a balancer machine has an adhesive weight mode setting, select the adhesive weight mode setting and skip Step 2 below. If a balancer machine only has the clip-on (rim flange) weight mode setting, follow Step 2 to calculate the correct size adhesive weight.

1. Set road wheel on balancer machine using the center hole as a guide. Start the balancer machine.
2. For balancer machines that only have a clip-on (rim flange) weight mode setting, follow this step to calculate the correct size adhesive weight to use. When inner and outer imbalance values are shown on the balancer machine indicator, multiply outer imbalance value by 5/3 (1.67) to determine balance weight that should be used. Select the outer balance weight with a value closest to the calculated value above and install in to the designated outer position of or at the designated angle in relation to the road wheel.
   1. Indicated imbalance value x 5/3 (1.67) = balance weight to be installed

      Courtesy of NISSAN NORTH AMERICA, INC.

      Calculation example:  23 g (0.81 oz) x 5/3 (1.67) = 38.33 g (1.35 oz) → 40 g (1.41 oz) balance weight (closer to calculated balance weight value)

      NOTE: Note that balance weight value must be closer to the calculated balance weight value.

      Example:  37.4 → 35 g (1.23 oz)37.5 → 40 g (1.41 oz)

3. Install balance weight in the position shown in the illustration.

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION:

   • Do not install the inner balance weight before installing the outer balance weight.
   • Before installing the balance weight, be sure to clean the mating surface of the road wheel.

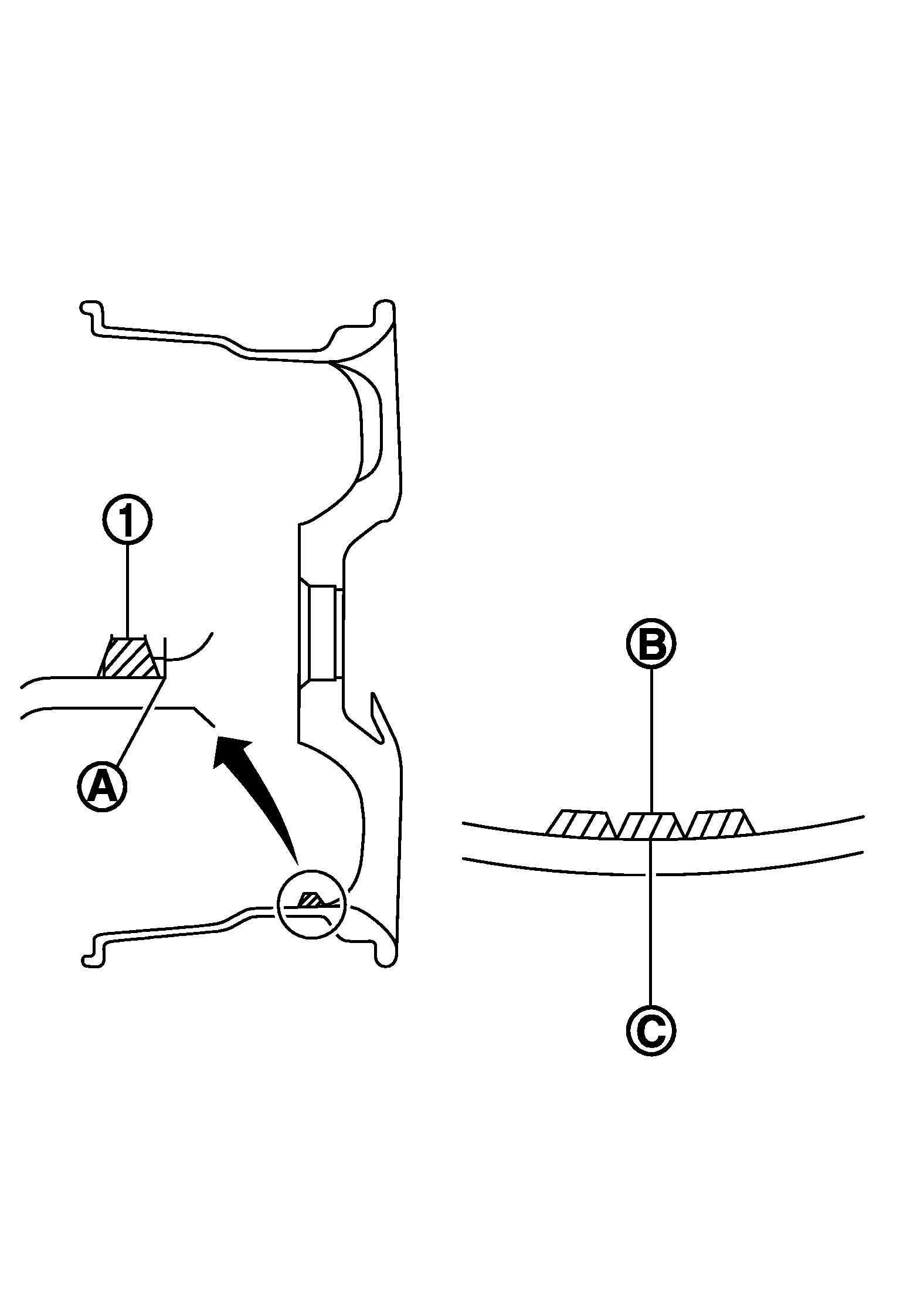

   • When installing balance weight (1) to road wheel, set it into the grooved area (A) on the inner wall of the road wheel as shown in the illustration so that the balance weight center (B) is aligned with the balancer machine indication position (angle) (C).
     CAUTION:

     • Always use Genuine INFINITI adhesive balance weights.
     • Balance weights are non-reusable; always replace with new ones.
     • Do not install more than three sheets of balance weights.
4. If calculated balance weight value exceeds 50 g (1.76 oz), install two balance weight sheets in line with each other as shown in the illustration.

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION:

   Do not install one balance weight sheet on top of another.

5. Start balancer machine again.
6. Install balance weight on inner side of road wheel in the balancer machine indication position (angle).
   CAUTION:

   Do not install more than two balance weights.

7. Start balancer machine. Make sure that inner and outer residual imbalance values are 5 g (0.17 oz) each or below.
8. If either residual imbalance value exceeds 5 g (0.17 oz), repeat installation procedures.

TIRE ROTATION

• Follow the maintenance schedule for tire rotation service intervals. Refer to Introduction of Periodic Maintenance .
  Fig 1: Tire Rotation Pattern

  Courtesy of NISSAN NORTH AMERICA, INC.
• Rotate the wheels and tires in the pattern as shown in the illustration.
• When installing the wheel, tighten wheel nuts to the specified torque.
  CAUTION:

  • Do not include the spare tire when rotating the tires.
  • When installing wheel nuts, tighten them diagonally by dividing the work two to three times in order to prevent the wheels from developing any distortion.
  • Be careful not to tighten wheel nuts to a torque exceeding the specification to prevent strain on the disc brake rotor.
  • Use genuine INFINITI wheel nuts for aluminum wheels.
  • When performing the tire rotation, perform the "ID REGISTRATION PROCEDURE". Refer to Description .

  Wheel nut tightening torque

  : Refer to Exploded View .
