Rear Suspension Arm
>>
Exploded View
Exploded View

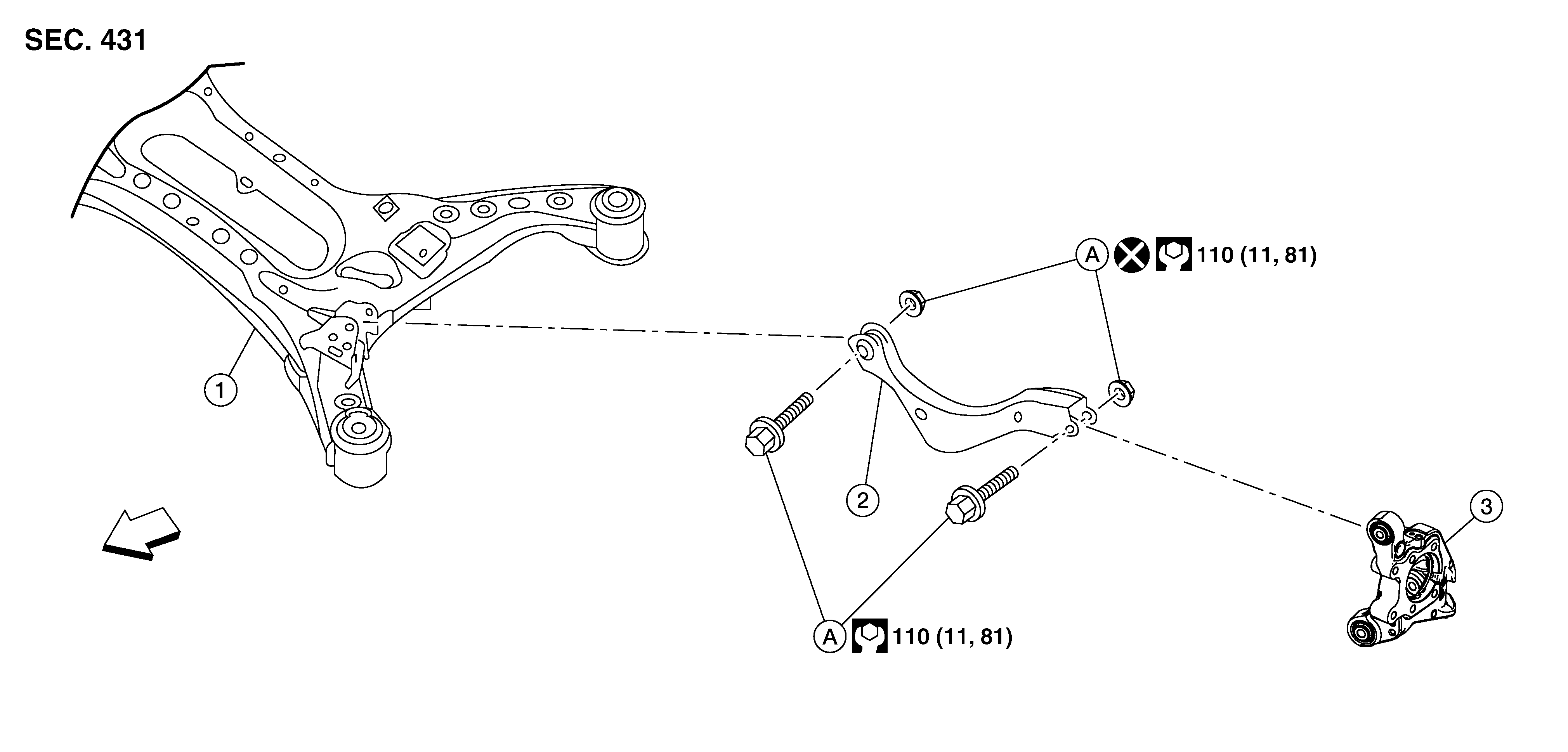

Fig 1: Rear Suspension Arm With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Rear suspension member
2.
Rear suspension arm
3.
Rear knuckle
Front
Courtesy of NISSAN NORTH AMERICA, INC.
