Rear Suspension Assembly: Inspection

Check the rear suspension for the following:

• Check each component for looseness or play.
• Inspect each component for abnormal wear or damage.

Oil Leakage Inspection

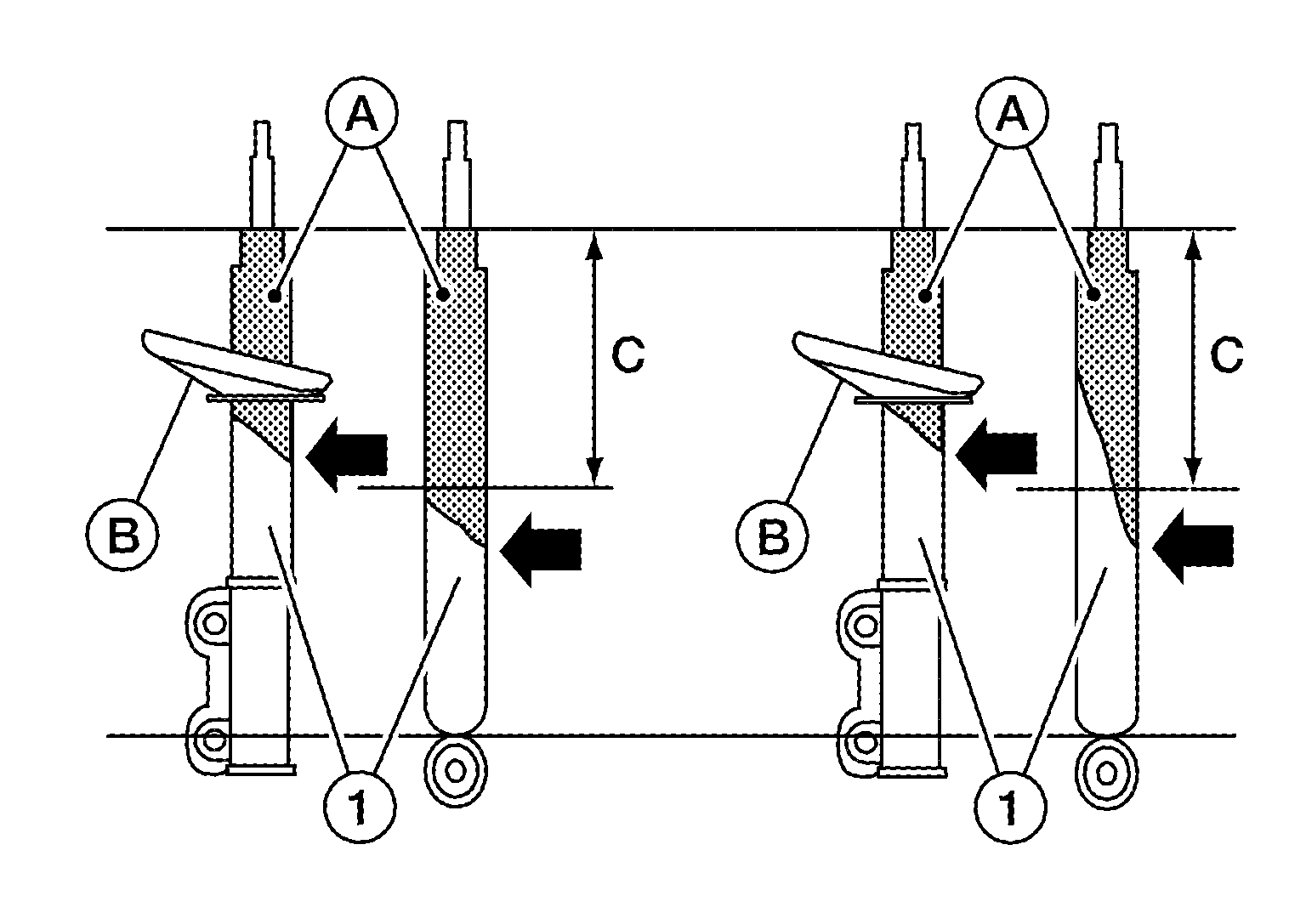

• If oil (A) does not extend beyond the spring seat (B) or upper half (C) of strut/shock absorber (1), this is slight oil seepage and the strut/shock absorber should not be replaced.

  Courtesy of NISSAN NORTH AMERICA, INC.

• If oil (A) does extend beyond the spring seat (B) or upper half (C) of strut/shock absorber (1) as shown in the illustration, perform the following.

  Courtesy of NISSAN NORTH AMERICA, INC.

  - Use a finger to touch the oil that has extended beyond the spring seat or upper half of strut/shock absorber.- If the oil layer is thick and contains large pieces of dust and debris, replace the strut/shock absorber.- If the oil is thin and does not contain large pieces of dust and debris, do not replace the strut/shock absorber.

  NOTE: If strut/shock absorber leakage is diagnosed in one strut/shock absorber, do not automatically replace both sides. Replace only the leaking strut/shock absorber.

SUSPENSION ARM

• Check the suspension arm for damage, cracks, deformation and replace if necessary.
• Check the rubber bushings for damage, cracks and deformation. Replace suspension arm if necessary.

FRONT LOWER LINK

• Check the front lower link for any deformation, cracks, or damage and replace if necessary.

UPPER AND LOWER RUBBER SEATS

• Check the upper and lower rubber seats for deterioration or cracks and replace if necessary.

REAR LOWER LINK AND COIL SPRING

• Check the rear lower link and coil spring for any deformation, cracks, or other damage and replace if necessary.

STABILIZER BAR

1. Check the stabilizer bar and clamps for any deformation, cracks or damage and replace if necessary.
2. Check the rubber bushings for deterioration or cracks and replace if necessary.
