Removal and Installation

REMOVAL

Set front wheels and tires to the straight-ahead position.
Remove driver air bag module. Refer to Removal and Installation .
Disconnect the harness connectors from the horn, heated steering wheel switch, and steering switches.
Remove steering wheel lock nut.
CAUTION:
Do not reuse steering wheel lock nut.
Remove steering wheel using suitable tool.
CAUTION:
Place a piece of tape across the spiral cable so it will not be rotated out of position.
Inspect steering wheel near the puller holes for damage. Replace as necessary.
Remove steering switches (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

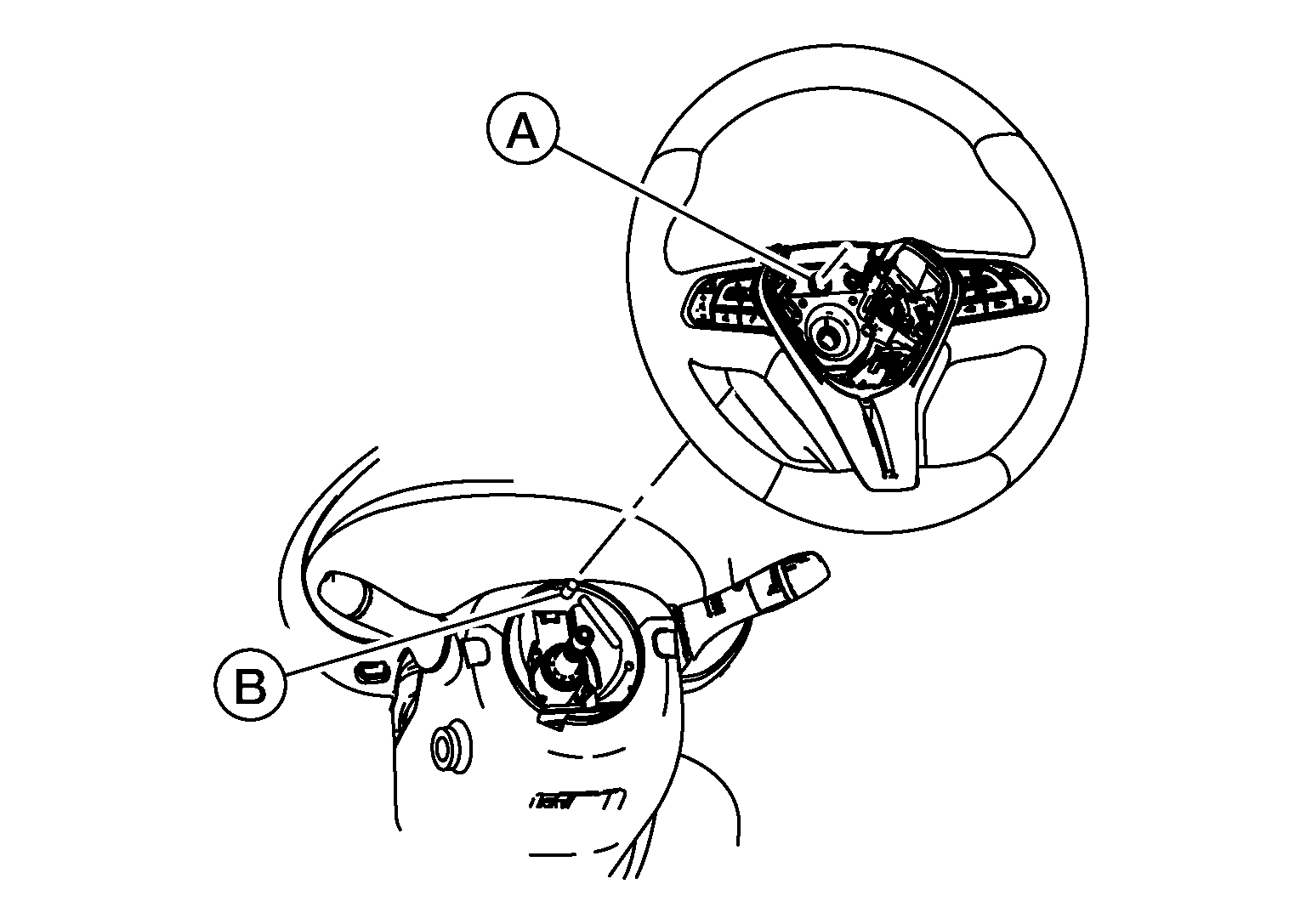

When installing steering wheel, ensure boss on spiral cable (B) engages hole in steering wheel (A).

Courtesy of NISSAN NORTH AMERICA, INC.
When installing steering wheel, ensure mark on steering wheel (A) aligns to mark on steering column shaft (B).

Courtesy of NISSAN NORTH AMERICA, INC.
Hand tighten steering wheel lock nut, then torque to specification.
CAUTION:
Do not reuse steering wheel lock nut.
Set the spiral cable neutral position by carefully turning the spiral cable clockwise to the end position. Turn the spiral cable counterclockwise 2.5 turns stopping when the locating pin (A) is at the top most position, the triangles (C) are pointing at each other as shown in the illustration and the clear window (B) appears white.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: If a new part is installed, the neutral position is already set with a stopper in place and should not be adjusted after the stopper clip is removed. Make sure the stopper clip is removed after the spiral cable/steering angle sensor assembly is installed but before the steering wheel is installed.
During steering wheel installation, make sure the locating pin hole (D) is aligned with the locating pin (A) of the spiral cable.
Perform the neutral position adjustment for the steering angle sensor. Refer to Description .

CAUTION:

The spiral cable may snap during steering operation if the spiral cable is installed in an improper position.
Do not overturn the spiral cable or go beyond the maximum number of turns allowed. This will cause the cable to snap.
The turn signal lever must be in the neutral position for spiral cable installation.
Do not apply lubricant to the spiral cable.
Do not allow oil, grease, detergent or water to come in contact with the spiral cable.
After installation is completed, check that no system malfunction is detected using CONSULT or the air bag warning lamp.
If no malfunction is detected using CONSULT or the air bag warning lamp after repair or replacement of the malfunctioning parts, perform the SRS Final Check. Refer to Description .
