Exploded View

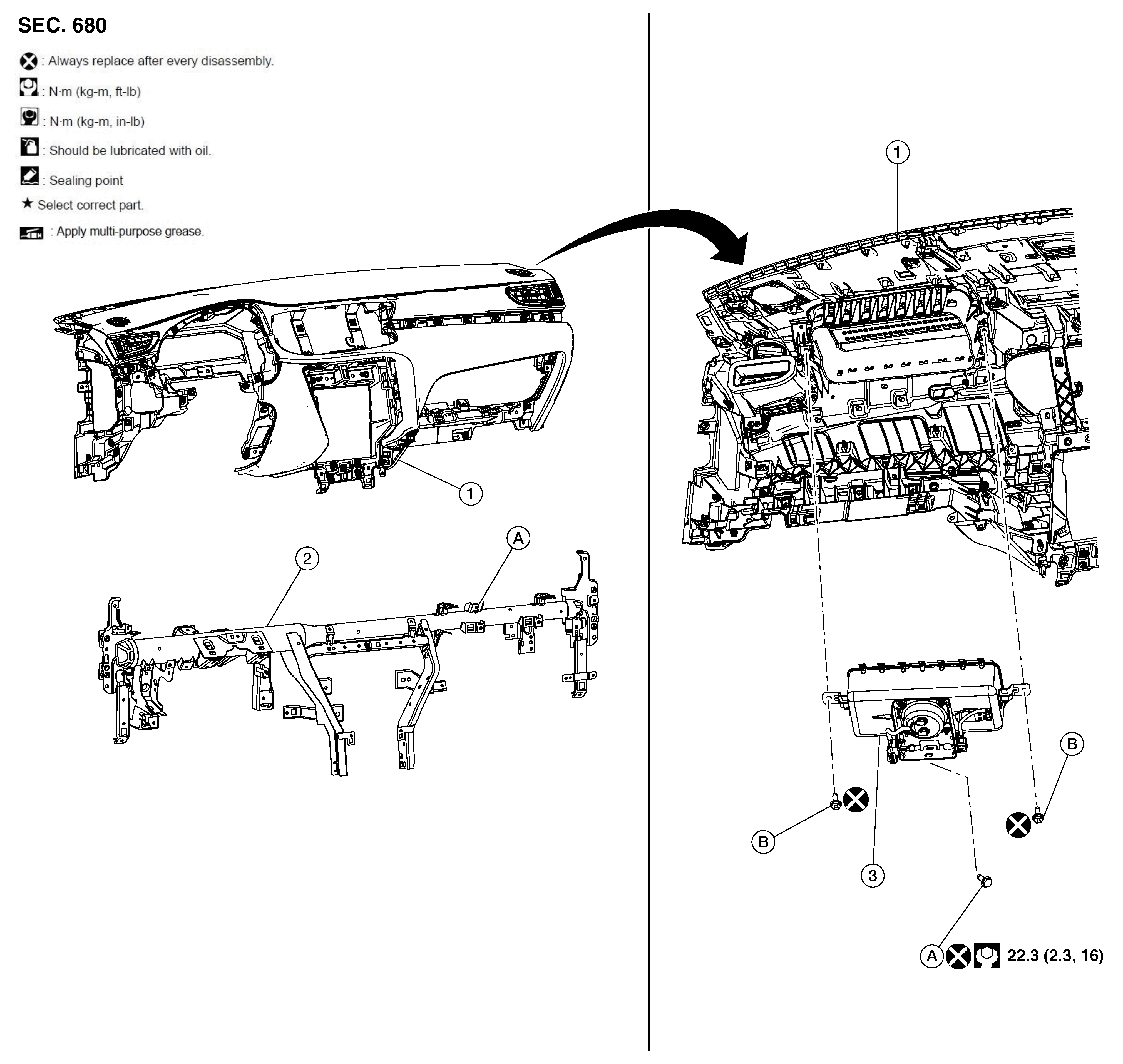

Fig 1: Front Passenger Air Bag Module with Torque Specifications
GNSDB140516Courtesy of NISSAN NORTH AMERICA, INC.
1. Instrument panel assembly 2. Steering member assembly 3. Front passenger air bag module
A. Bolt B. Screw
