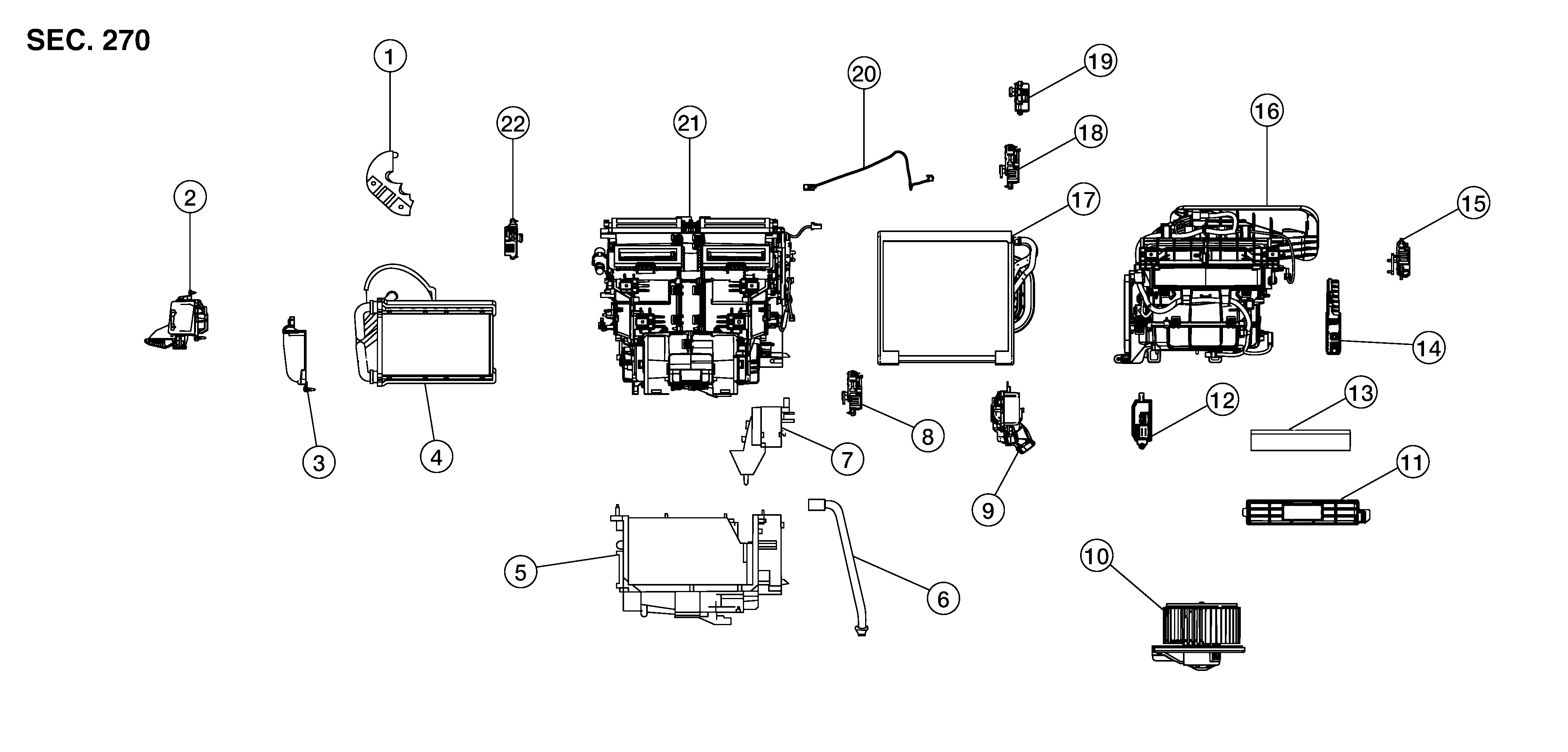

| 1. |
Heater core pipe support |
2. |
Front foot duct (LH) |
3. |
Heater core pipe cover |
| 4. |
Heater core |
5. |
Heating and cooling case lower cover |
6. |
Drain hose |
| 7. |
Evaporator pipe cover |
8. |
Air mix door motor [rear (with rear air control)] |
9. |
Front foot duct (RH) |
| 10. |
Blower motor |
11. |
In-cabin microfilter cover |
12. |
Variable blower control |
| 13. |
In-cabin microfilter |
14. |
A/C auto amp. |
15. |
Intake door motor |
| 16. |
Blower unit |
17. |
Evaporator |
18. |
Air mix door motor (RH) |
| 19. |
Mode door motor |
20. |
Intake sensor |
21. |
Heating and cooling unit |
| 22. |
Air mix door motor (LH) |
|
|
|
|
