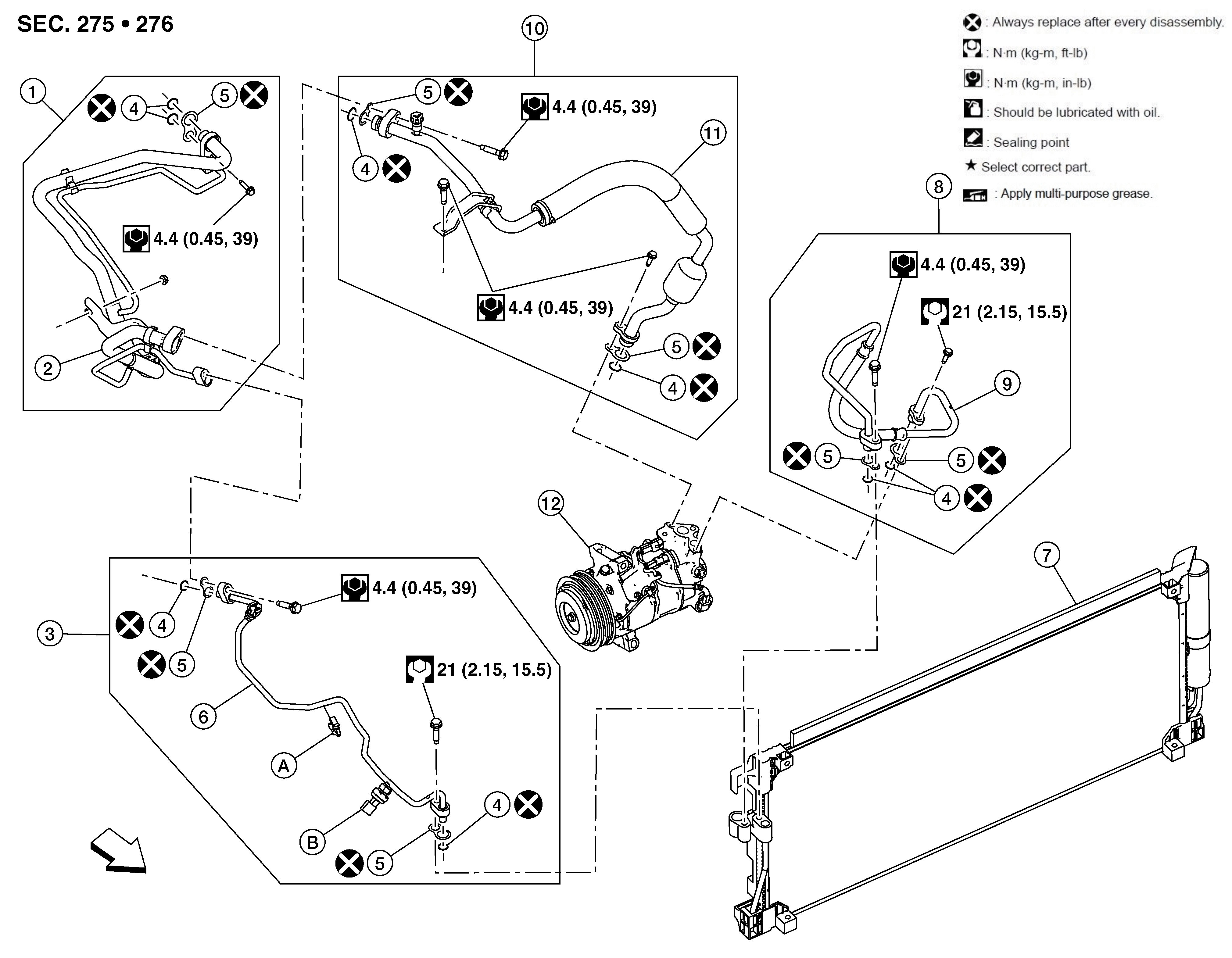

Exploded View
| 1. | Internal heat exchanger assembly | 2. | Internal heat exchanger | 3. | High-pressure pipe assembly |
| 4. | O-ring | 5. | High-pressure pipe | 6. | Condenser |
| 7. | High-pressure flexible hose | 8. | High-pressure flexible hose assembly | 9. | Low-pressure flexible hose |
| 10. | Low-pressure flexible hose assembly | 11. | Compressor | ||
| A. | Clip | B. | Refrigerant pressure sensor | Front |
