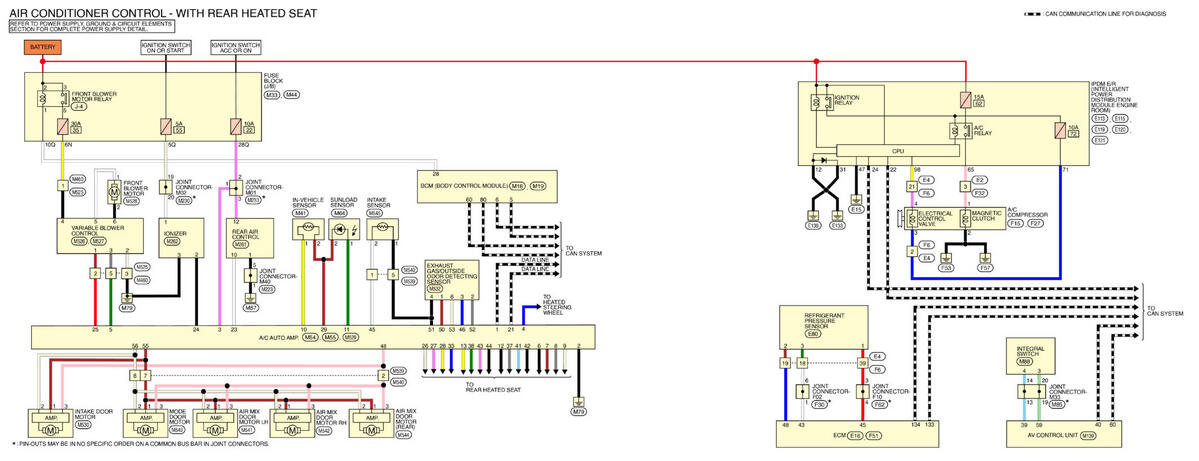

Air Conditioner Control - With Rear Heated Seat: Wiring Diagram

GNSW108934

Courtesy of NISSAN NORTH AMERICA, INC.
