Removal and Installation

REMOVAL

  1. Remove the upper fascia retainer. Refer to Removal and Installation .

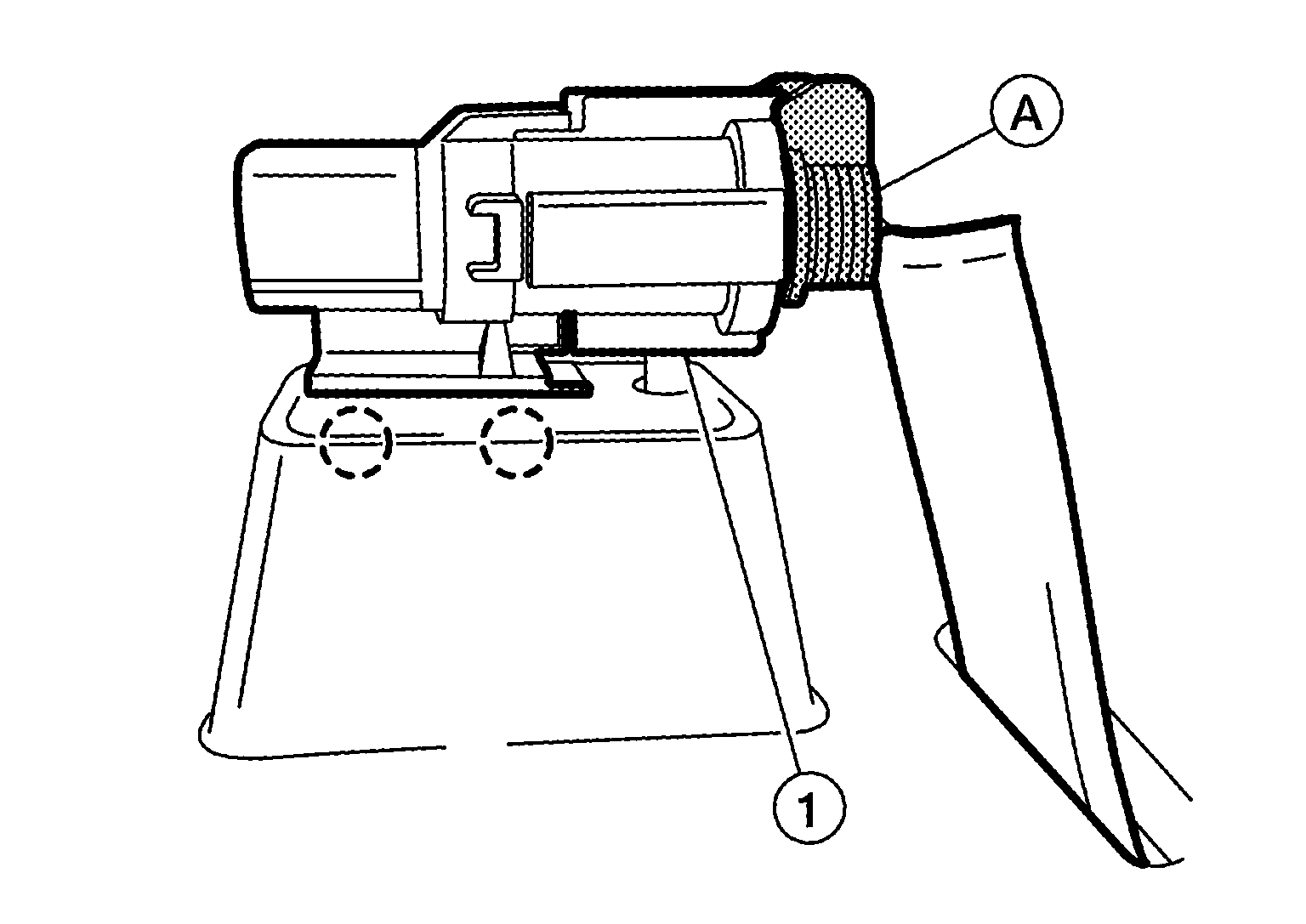

  2. Disconnect harness connector (A) from ambient sensor (1).
    GNSDB138463Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release pawls using suitable tool, then remove ambient sensor (1).
    SYMBOL : Pawl

INSTALLATION

Installation is in the reverse order of removal.
