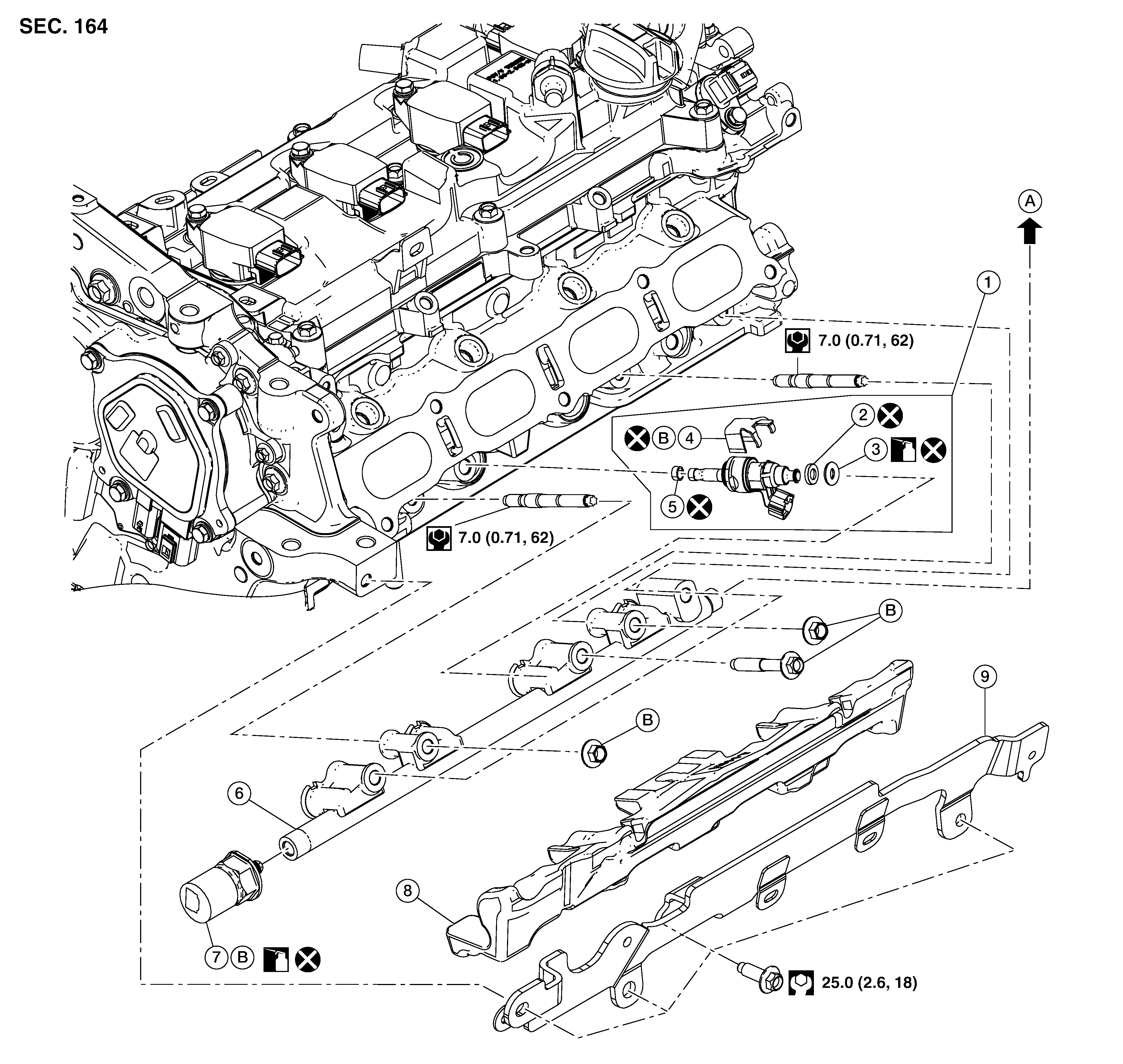

Exploded View
| 1. | Direct fuel injector | 2. | Backup ring | 3. | O-ring |
| 4. | Injector holder | 5. | Seal ring | 6. | High pressure fuel rail |
| 7. | Fuel rail pressure sensor | 8. | Fuel rail insulator | 9. | High pressure fuel rail protector |
| A. | To high pressure fuel tube. Refer to Exploded View . | B. | Refer to Removal and Installation . |
CAUTION:
Do not remove or disassemble parts unless instructed as shown in the illustration.
