Removal and Installation

REMOVAL

CAUTION:

Be careful not to scratch center console finishers and other parts.

Using a suitable tool, release clips and remove rear center console finisher. Refer to Exploded View .
Disconnect harness connector from rear USB charge port.
Disconnect harness connector from rear air control [with climate controlled seats (if equipped)].
Using a suitable tool, release clips and remove center console side finisher (LH).
Using a suitable tool, release clips and remove shift selector finisher.
Disconnect harness connectors from the push button ignition switch.
Disconnect harness connectors from the electric parking brake switch.
Disconnect harness connectors from the drive mode switch.
Remove screws (A) from the left side of the center console cup holder (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Release pawls (B) on the right side of the center console cup holder and remove the center console cup holder.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
Remove the wireless charger mat. Refer to Exploded View .

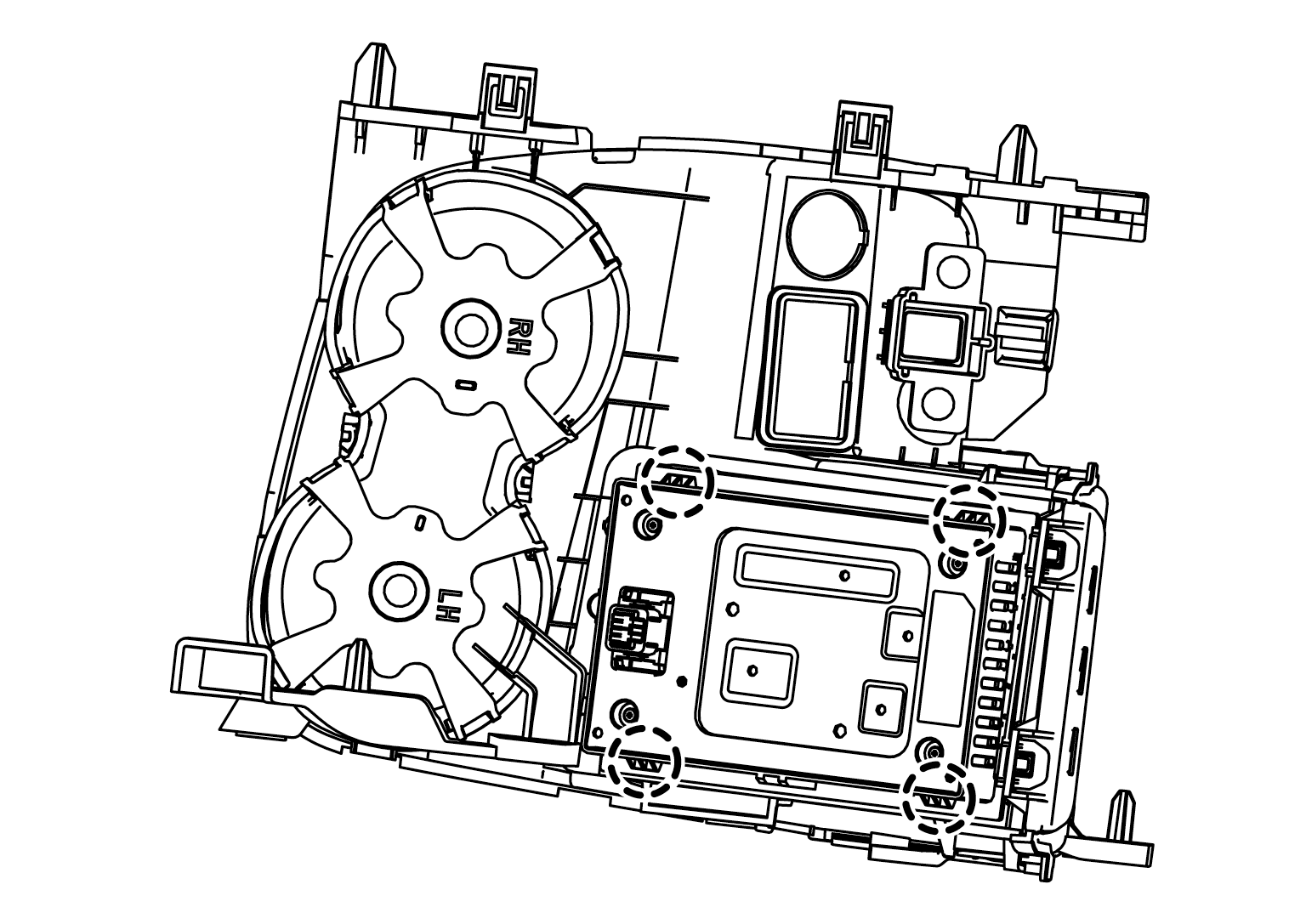

Using a suitable tool, release pawls and remove the wireless charger unit from the center console cup holder.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Align tab with cut out when installing wireless charger unit.

CAUTION:

If replacing wireless charger unit, perform "ADDITIONAL SERVICE WHEN REPLACING WIRELESS CHARGER UNIT". Refer to Description .
