Removal and Installation

CAUTION:

IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit.

REMOVAL

Remove the cover from IPDM.
Disconnect the negative battery terminal. Refer to Battery Disconnect .

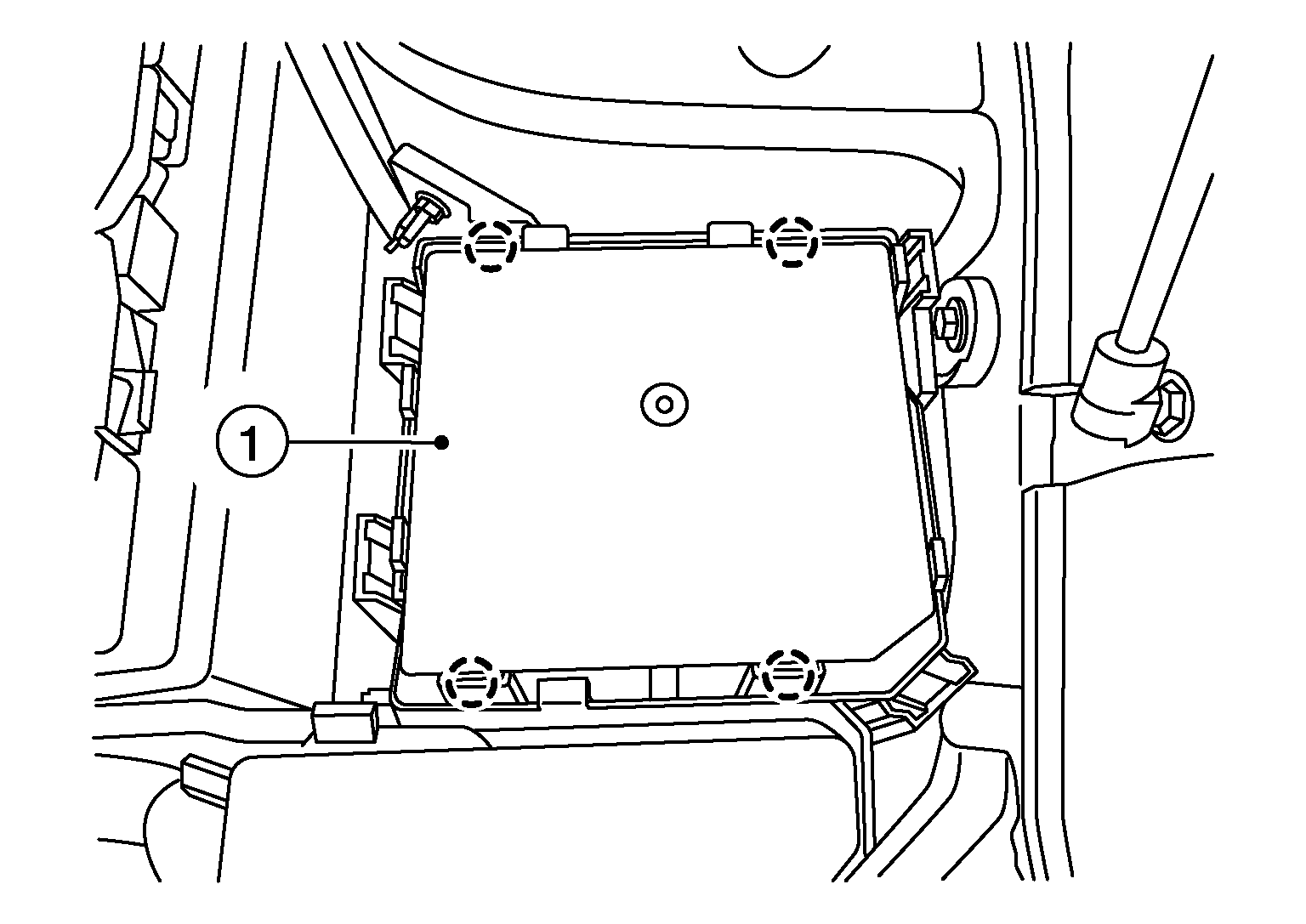

Release the pawls using a suitable tool and separate the IPDM E/R (1) from the case.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

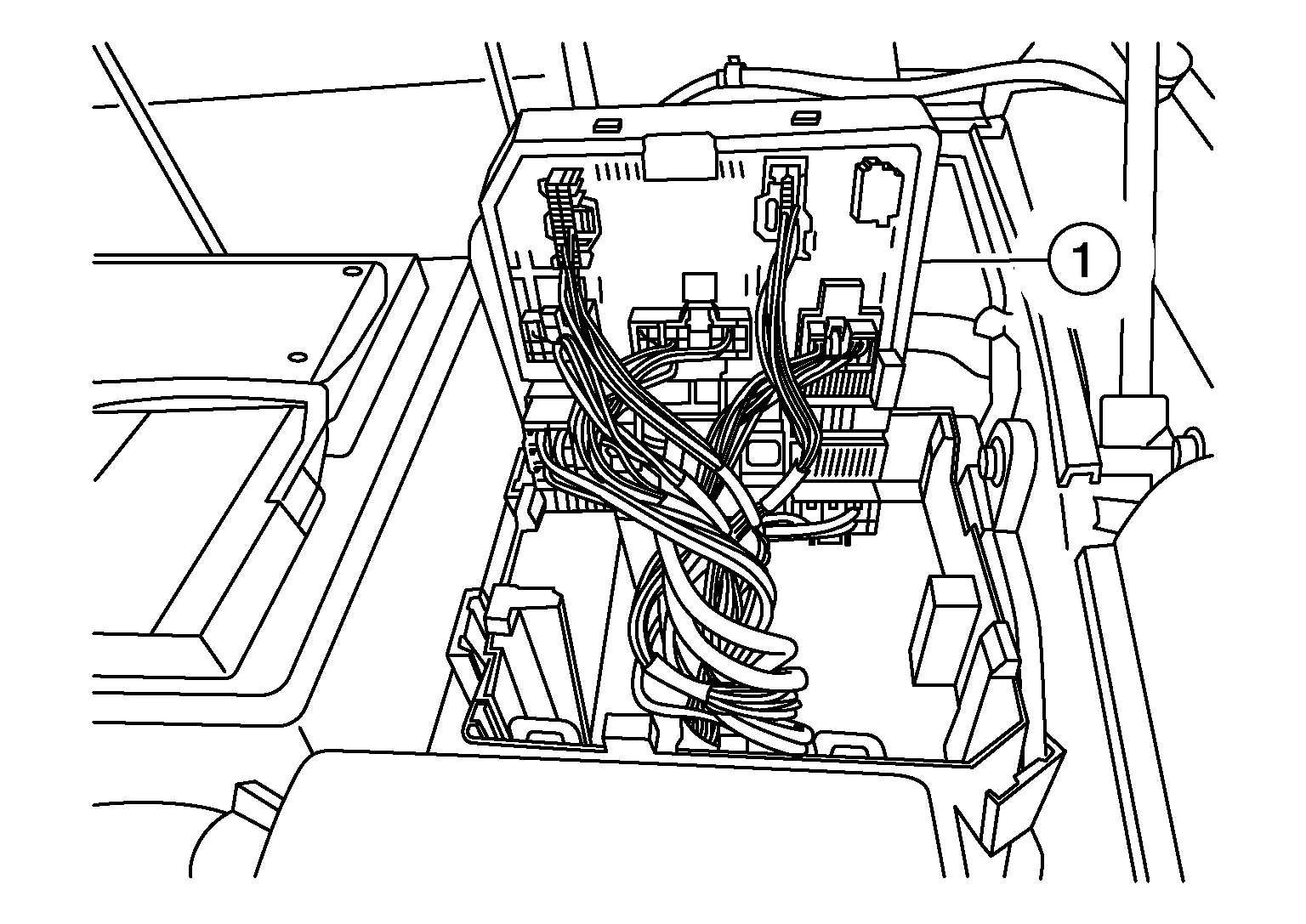

Disconnect the harness connectors from the IPDM E/R (1) and remove the IPDM E/R.

Courtesy of NISSAN NORTH AMERICA, INC.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform "ADDITIONAL SERVICE WHEN REPLACING IPDM E/R". Refer to Description .
