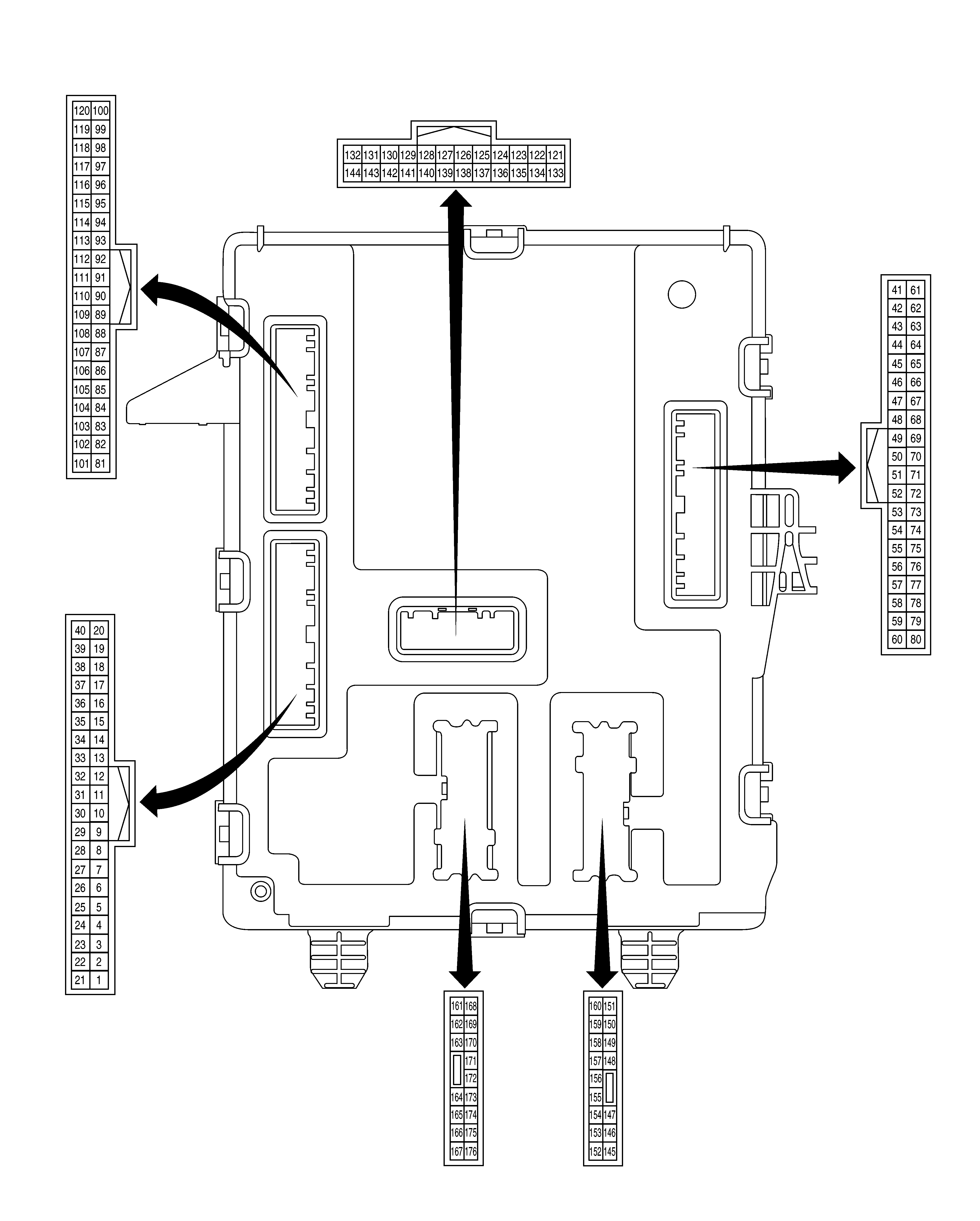

TERMINAL LAYOUT

Courtesy of NISSAN NORTH AMERICA, INC.

PHYSICAL VALUES

Terminal No.(Wire color)		Description		Condition		Value(Approx.)
Terminal No.(Wire color)		Signal name	Input/ Output
(+)	(-)	Signal name	Input/ Output
2(G)	Ground	Door mirror LH turn signal power supply	Output	Ignition switch ON	Turn signal switch OFF	0V
2(G)	Ground	Door mirror LH turn signal power supply	Output	Ignition switch ON	Turn signal switch LH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V
3(G)	Ground	Door mirror RH turn signal power supply	Output	Ignition switch ON	Turn signal switch OFF	0V
3(G)	Ground	Door mirror RH turn signal power supply	Output	Ignition switch ON	Turn signal switch RH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V
4(B)	Ground	Room lamp relay control	Output	Ignition switch OFF	Interior room lamp battery saver operation timed out	Battery voltage
4(B)	Ground	Room lamp relay control	Output	Ignition switch OFF	Any time prior to interior room lamp battery saver operation timed out	0V
5(R)	Ground	CAN-Low	Input/ Output	-		-
6(L)	Ground	CAN-High	Input/ Output	-		-
71(BR)	Ground	Rain sensor LIN communication	Input/Output	Ignition switch OFF		12 V
71(BR)	Ground	Rain sensor LIN communication	Input/Output	Ignition switch ON		Courtesy of NISSAN NORTH AMERICA, INC. 8.7 V
10(BG)	Ground	Main power window and door lock/unlock switch LOCK signal	Input	Main power window and door lock/unlock switch	Lock	Battery voltage
10(BG)	Ground	Main power window and door lock/unlock switch LOCK signal	Input	Main power window and door lock/unlock switch	Unlock	0V
11(Y)	Ground	Hazard switch signal	Input	Hazard switch	Pressed	0 V
11(Y)	Ground	Hazard switch signal	Input	Hazard switch	Released	Courtesy of NISSAN NORTH AMERICA, INC. 1.1V
12(W)	Ground	Optical sensor power supply	Output	Ignition switch	OFF	0V
12(W)	Ground	Optical sensor power supply	Output	Ignition switch	ON	5V
15(V)	Ground	Power window LIN communication	Input/Output	Ignition switch ON		Courtesy of NISSAN NORTH AMERICA, INC. 9.0 - 10 V
162(W)	Ground	Dongle communication	Input/Output	Ignition switch	OFF	5V
17(BG)	Ground	Electric shift selector (park position switch) power supply	Output	Shift selector	P position	0V
17(BG)	Ground	Electric shift selector (park position switch) power supply	Output	Shift selector	Except P position	Battery voltage
18(G)	Ground	Mirror retract relay control	Output	Mirror retact	Not activated	Battery voltage
18(G)	Ground	Mirror retract relay control	Output	Mirror retact	Activated	0V
19(LG)	Ground	Optical sensor signal	Input	Ignition switch ON	Outside of vehicle is bright	Close to 5V
19(LG)	Ground	Optical sensor signal	Input	Ignition switch ON	Outside of vehicle is dark	Close to 0V
20(SB)	Ground	Combination switch output 6	Output	Combination switch	OFF	Courtesy of NISSAN NORTH AMERICA, INC. 7.0 - 8.0V
20(SB)	Ground	Combination switch output 6	Output	Combination switch	NO WIPER	Courtesy of NISSAN NORTH AMERICA, INC. 1.2V
23(V)	Ground	Power window relay control	Output	Ignition switch	OFF	Battery voltage
23(V)	Ground	Power window relay control	Output	Ignition switch	ON	0V
24(R)	Ground	Rear window defogger relay control	Output	Rear window defogger	Not activated	Battery voltage
24(R)	Ground	Rear window defogger relay control	Output	Rear window defogger	Activated	0V
25(BR)	Ground	Accessory relay-1 control	Output	Ignition switch	OFF	Battery voltage
25(BR)	Ground	Accessory relay-1 control	Output	Ignition switch	ON	0V
27(Y)	Ground	Ignition relay-2 control	Output	Ignition switch	OFF	Battery voltage
27(Y)	Ground	Ignition relay-2 control	Output	Ignition switch	ON	0V
28(W)	Ground	Front blower motor relay control	Output	Ignition switch	OFF	Battery voltage
28(W)	Ground	Front blower motor relay control	Output	Ignition switch	ON	0V
30(P)	Ground	Optical sensor ground	Output	Ignition switch	ON	0V
33(LG)	Ground	Combination switch output 5	Output	Combination switch	OFF	Courtesy of NISSAN NORTH AMERICA, INC. 7.0 - 8.0V
					INT VOLUME 2	Courtesy of NISSAN NORTH AMERICA, INC. 1.2V
					INT VOLUME 3
					RR WIPER INT
					RR WIPER ON
34(Y)	Ground	Combination switch input 5	Input	Combination switch	OFF	0V
					FR FOG	Courtesy of NISSAN NORTH AMERICA, INC. 1.0V
					TAIL LAMP
					TURN RH
					NO LIGHT
35(P)	Ground	Security indicator control	Output	Security indicator	ON	0V
					Blinking	Courtesy of NISSAN NORTH AMERICA, INC. 11.3V
					OFF	Battery voltage
36(G)	Ground	Combination switch output 3	Output	Combination switch	OFF	Courtesy of NISSAN NORTH AMERICA, INC. 7.0 - 8.0V
					FR WASHER	Courtesy of NISSAN NORTH AMERICA, INC. 1.2V
					RR WASHER
					TURN LH
					TURN RH
37(GR)	Ground	Combination switch output 4	Output	Combination switch	OFF	Courtesy of NISSAN NORTH AMERICA, INC. 7.0 - 8.0V
					FR WIPER LOW	Courtesy of NISSAN NORTH AMERICA, INC. 1.2V
					FR WIPER HI
					FR WIPER INT
					NO LIGHT
38(SB)	Ground	Combination switch output 1	Output	Combination switch	OFF	Courtesy of NISSAN NORTH AMERICA, INC. 7.0 - 8.0V
					HI BEAM	Courtesy of NISSAN NORTH AMERICA, INC. 1.2V
					PASSING
					FR FOG
39(W)	Ground	Combination switch output 2	Output	Combination switch	OFF	Courtesy of NISSAN NORTH AMERICA, INC. 7.0 - 8.0V
					INT VOLUME 1	Courtesy of NISSAN NORTH AMERICA, INC. 1.2V
					HEADLAMP
					AUTO LIGHT
					TAIL LAMP
40(SB)	Ground	Main power window and door lock/unlock switch UNLOCK signal	Input	Main power window and door lock/unlock switch	Unlock	Battery voltage
40(SB)	Ground	Main power window and door lock/unlock switch UNLOCK signal	Input	Main power window and door lock/unlock switch	Lock	0V
42(SB)	Ground	Accessory power supply output	Output	Ignition switch	ON	0V
42(SB)	Ground	Accessory power supply output	Output	Ignition switch	OFF	Battery voltage
43(R)	Ground	Rear outside handle assembly RH (touch sensor) signal	Input	Rear outside handle assembly RH (touch sensor)	Touch	Courtesy of NISSAN NORTH AMERICA, INC.
43(R)	Ground	Rear outside handle assembly RH (touch sensor) signal	Input	Rear outside handle assembly RH (touch sensor)	Other than the above	9 - 16 V
44(Y)	Ground	Rear outside handle assembly LH (touch sensor) signal	Input	Rear outside handle assembly LH (touch sensor)	Touch	Courtesy of NISSAN NORTH AMERICA, INC.
44(Y)	Ground	Rear outside handle assembly LH (touch sensor) signal	Input	Rear outside handle assembly LH (touch sensor)	Other than the above	9 - 16 V
453(L)	Ground	Motion activated back door control unit signal	Input	-		-
50(W)	Ground	Rear door switch RH signal	Input	Rear door switch RH	OFF (door closed)	Courtesy of NISSAN NORTH AMERICA, INC. 11.8V
50(W)	Ground	Rear door switch RH signal	Input	Rear door switch RH	ON (door open)	0V
51(LG)	Ground	Back door lock assembly (door ajar switch) signal	Input	Back door lock assembly (door ajar switch)	OFF (door closed)	Courtesy of NISSAN NORTH AMERICA, INC. 11.8V
51(LG)	Ground	Back door lock assembly (door ajar switch) signal	Input	Back door lock assembly (door ajar switch)	ON (door open)	0V
52(R)	Ground	Rear door switch LH signal	Input	Rear door switch LH	OFF (door closed)	Courtesy of NISSAN NORTH AMERICA, INC. 11.8V
52(R)	Ground	Rear door switch LH signal	Input	Rear door switch LH	ON (door open)	0V
53(GR)	Ground	Front door switch RH signal	Input	Front door switch RH	OFF (door closed)	Courtesy of NISSAN NORTH AMERICA, INC. 11.8 V
53(GR)	Ground	Front door switch RH signal	Input	Front door switch RH	ON (door open)	0V
55(G)	Ground	Rear wiper stop position signal	Input	Ignition switch ON	Rear wiper stop position	Battery voltage
55(G)	Ground	Rear wiper stop position signal	Input	Ignition switch ON	Any position other than rear wiper stop	0V
56(W)	Ground	Back door opener switch signal	Input	Back door opener switch	Switch released	Battery voltage
56(W)	Ground	Back door opener switch signal	Input	Back door opener switch	Switch pressed	0V
57(SB)	Ground	Front door switch LH signal	Input	Front door switch LH	OFF (door closed)	Courtesy of NISSAN NORTH AMERICA, INC. 11.8V
57(SB)	Ground	Front door switch LH signal	Input	Front door switch LH	ON (door open)	0V
60(L)	Ground	CAN-High	Input/ Output	-		-
61(V)	Ground	Outside key antenna (rear bumper) B	Output	Back door opener switch operated with ignition switch OFF	Intelligent Key in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
61(V)	Ground	Outside key antenna (rear bumper) B	Output	Back door opener switch operated with ignition switch OFF	Intelligent Key not in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
62(Y)	Ground	Inside key antenna (luggage room) B	Output	Ignition switch OFF	Intelligent Key in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
62(Y)	Ground	Inside key antenna (luggage room) B	Output	Ignition switch OFF	Intelligent Key not in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
63(L)	Ground	Inside key antenna (luggage room) A	Output	Ignition switch OFF	Intelligent Key in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
63(L)	Ground	Inside key antenna (luggage room) A	Output	Ignition switch OFF	Intelligent Key not in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
64(BG)	Ground	Outside key antenna (rear bumper) A	Output	Back door opener switch operated with ignition switch OFF	Intelligent Key in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
64(BG)	Ground	Outside key antenna (rear bumper) A	Output	Back door opener switch operated with ignition switch OFF	Intelligent Key not in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
77(R)	Ground	Luggage room lamp relay control	Output	Luggage room lamp	OFF	Battery voltage
77(R)	Ground	Luggage room lamp relay control	Output	Luggage room lamp	ON	0V
79(B)	Ground	High-mounted stop lamp power supply	Output	Brake pedal	Released	0V
79(B)	Ground	High-mounted stop lamp power supply	Output	Brake pedal	Depressed	Battery voltage
80(P)	Ground	CAN-Low	Input/ Output	-		-
81(G)	Ground	Rear outside handle assembly LH (request switch) signal	Input	Rear outside handle assembly LH (request switch)	ON (pressed)	0V
81(G)	Ground	Rear outside handle assembly LH (request switch) signal	Input	Rear outside handle assembly LH (request switch)	OFF (released)	Courtesy of NISSAN NORTH AMERICA, INC. 1.0V
82(SB)	Ground	Front outside handle assembly RH (request switch) signal	Input	Front outside handle assembly RH (request switch)	ON (pressed)	0V
82(SB)	Ground	Front outside handle assembly RH (request switch) signal	Input	Front outside handle assembly RH (request switch)	OFF (released)	Courtesy of NISSAN NORTH AMERICA, INC. 1.0V
84(BG)	Ground	Combination switch input 2	Input	Combination switch	OFF	0V
					HI BEAM	Courtesy of NISSAN NORTH AMERICA, INC. 1.0V
					RR WASHER
					FR WIPER HI
					INT VOLUME 3
85(SB)	Ground	Combination switch input 1	Input	Combination switch	OFF	0V
					INT VOLUME 1	Courtesy of NISSAN NORTH AMERICA, INC. 1.0V
					FR WASHER
					FR WIPER LOW
					INT VOLUME 2
					NO WIPER
86(P)	Ground	Combination switch input 3	Input	Combination switch	OFF	0V
					PASSING	Courtesy of NISSAN NORTH AMERICA, INC. 1.0V
					HEADLAMP
					FR WIPER INT
					RR WIPER INT
87(B)	Ground	Combination switch input 4	Input	Combination switch	OFF	0V
					AUTO LIGHT	Courtesy of NISSAN NORTH AMERICA, INC. 1.0V
					TURN LH
					RR WIPER ON
88(W)	Ground	Push-button ignition switch illumination power supply	Output	Push-button ignition switch illumination	ON	5.5V
88(W)	Ground	Push-button ignition switch illumination power supply	Output	Push-button ignition switch illumination	OFF	0V
89(Y)	Ground	Push-button ignition switch signal	Input	Push-button ignition switch	Pressed	0V
89(Y)	Ground	Push-button ignition switch signal	Input	Push-button ignition switch	Not pressed	Battery voltage
92(L)	Ground	Front outside handle assembly LH (touch sensor) signal	Input	Front outside handle assembly LH (touch sensor)	Touch	Courtesy of NISSAN NORTH AMERICA, INC.
92(L)	Ground	Front outside handle assembly LH (touch sensor) signal	Input	Front outside handle assembly LH (touch sensor)	Other than the above	9 - 16 V
93(B)	Ground	Front outside handle assembly RH (touch sensor) signal	Input	Front outside handle assembly RH (touch sensor)	Touch	Courtesy of NISSAN NORTH AMERICA, INC.
93(B)	Ground	Front outside handle assembly RH (touch sensor) signal	Input	Front outside handle assembly RH (touch sensor)	Other than the above	9 - 16 V
94(LG)	Ground	Electric shift control module (park position switch) signal	Input	Shift selector	P position	0V
94(LG)	Ground	Electric shift control module (park position switch) signal	Input	Shift selector	Except P position	Battery voltage
95(R)	Ground	Battery power supply	Input	Ignition switch	OFF	Battery voltage
100(P)	Ground	Outside key antenna (LH) A	Output	Front outside handle assembly LH (request switch) operated with ignition switch OFF	Intelligent Key in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
100(P)	Ground	Outside key antenna (LH) A	Output		Intelligent Key not in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
101(GR)	Ground	Rear outside handle assembly RH (request switch) signal	Input	Rear outside handle assembly RH (request switch)	ON (pressed)	0V
101(GR)	Ground	Rear outside handle assembly RH (request switch) signal	Input	Rear outside handle assembly RH (request switch)	OFF (released)	Courtesy of NISSAN NORTH AMERICA, INC. 1.0V
102(P)	Ground	Remote keyless entry receiver LIN communication	Input	Ignition switch ON	Waiting	Courtesy of NISSAN NORTH AMERICA, INC.
102(P)	Ground	Remote keyless entry receiver LIN communication	Input	Ignition switch ON	When operating either button on Intelligent Key	Courtesy of NISSAN NORTH AMERICA, INC.
104(R)	Ground	Front door lock assembly LH (door unlock sensor) signal	Input	Front door lock assembly LH (door unlock sensor)	OFF (lock)	Battery voltage
104(R)	Ground	Front door lock assembly LH (door unlock sensor) signal	Input	Front door lock assembly LH (door unlock sensor)	ON (unlock)	0V
105(G)	Ground	Front outside handle assembly LH (request switch) signal	Input	Front outside handle assembly LH (request switch)	ON (pressed)	0V
105(G)	Ground	Front outside handle assembly LH (request switch) signal	Input	Front outside handle assembly LH (request switch)	OFF (released)	Courtesy of NISSAN NORTH AMERICA, INC. 1.0V
111(G)	Ground	Door lock LED control	Output	Main power window and door lock/unlock switch	Lock	Battery voltage
111(G)	Ground	Door lock LED control	Output	Main power window and door lock/unlock switch	Neutral	0V
114(R)	Ground	NATS antenna amp. B	Output	During waiting	Intelligent Key backside is contacted to push-button ignition switch, place push-button ignition switch ON.	Just after pressing push-button ignition switch. Pointer of analog volt meter should move.
115(Y)	Ground	NATS antenna amp. A	Output	During waiting	Intelligent Key backside is contacted to push-button ignition switch, place push-button ignition switch ON.	Just after pressing push-button ignition switch. Pointer of analog volt meter should move.
116(P)	Ground	Inside key antenna (console) B	Output	Ignition switch OFF	Intelligent Key in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
116(P)	Ground	Inside key antenna (console) B	Output	Ignition switch OFF	Intelligent Key not in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
117(GR)	Ground	Inside key antenna (console) A	Output	Ignition switch OFF	Intelligent Key in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
117(GR)	Ground	Inside key antenna (console) A	Output	Ignition switch OFF	Intelligent Key not in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
118(V)	Ground	Outside key antenna (RH) B	Output	Front outside handle assembly RH (request switch) operated with ignition switch OFF	Intelligent Key in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
118(V)	Ground	Outside key antenna (RH) B	Output		Intelligent Key not in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
119(LG)	Ground	Outside key antenna (RH) A	Output	Front outside handle assembly RH (request switch) operated with ignition switch OFF	Intelligent Key in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
119(LG)	Ground	Outside key antenna (RH) A	Output		Intelligent Key not in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
120(LG)	Ground	Outside key antenna (LH) B	Output	Front outside handle assembly LH (request switch) operated with ignition switch OFF	Intelligent Key in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
120(LG)	Ground	Outside key antenna (LH) B	Output		Intelligent Key not in antenna detection area	Courtesy of NISSAN NORTH AMERICA, INC.
125(LG)	Ground	Stop lamp switch signal	Input	Brake pedal	Released	0V
125(LG)	Ground	Stop lamp switch signal	Input	Brake pedal	Depressed	Battery voltage
126(P)	Ground	Brake pedal position switch signal	Input	Brake pedal	Released	0V
126(P)	Ground	Brake pedal position switch signal	Input	Brake pedal	Depressed	Battery voltage
132(L)	Ground	Intelligent Key warning buzzer output	Output	Intelligent Key warning buzzer	Sounding	0V
132(L)	Ground	Intelligent Key warning buzzer output	Output	Intelligent Key warning buzzer	Not sounding	Battery voltage
135(BR)	Ground	Front turn signal LH power supply	Output	Ignition switch ON	Turn signal switch OFF	0V
135(BR)	Ground	Front turn signal LH power supply	Output	Ignition switch ON	Turn signal switch LH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V
136(L)	Ground	Front turn signal RH power supply	Output	Ignition switch ON	Turn signal switch OFF	0V
136(L)	Ground	Front turn signal RH power supply	Output	Ignition switch ON	Turn signal switch RH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V
139(G)	Ground	Starter cut relay control	Output	Ignition switch	OFF	Battery voltage
139(G)	Ground	Starter cut relay control	Output	Ignition switch	ON	0V
147(R)	Ground	Rear wiper motor power supply	Output	Rear wiper	OFF	0V
147(R)	Ground	Rear wiper motor power supply	Output	Rear wiper	ON	Battery voltage
148(SB)	Ground	Rear door UNLOCK control	Output	Main power window and door lock/unlock switch	Unlock (actuator activated)	Battery voltage
148(SB)	Ground	Rear door UNLOCK control	Output	Main power window and door lock/unlock switch	Lock (actuator not activated)	0V
149(BG)	Ground	Rear door LOCK control	Output	Main power window and door lock/unlock switch	Lock (actuator activated)	Battery voltage
149(BG)	Ground	Rear door LOCK control	Output	Main power window and door lock/unlock switch	Unlock (actuator not activated)	0V
1504(GR)	Ground	Outside handle lamp control	Output	Room lamp relay	OFF	Battery voltage
1504(GR)	Ground	Outside handle lamp control	Output	Room lamp relay	ON	0V
1514(B)	Ground	Mood lamp control	Output	Room lamp relay	OFF	Battery voltage
1514(B)	Ground	Mood lamp control	Output	Room lamp relay	ON	0V
153(W)	Ground	Stop lamp RH power supply	Output	Brake pedal	Released	0V
153(W)	Ground	Stop lamp RH power supply	Output	Brake pedal	Depressed	Battery voltage
157(GR)	Ground	Rear turn signal LH power supply	Output	Ignition switch ON	Turn signal switch OFF	0V
157(GR)	Ground	Rear turn signal LH power supply	Output	Ignition switch ON	Turn signal switch LH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V
158(W)	Ground	Stop lamp LH power supply	Output	Brake pedal	Released	0V
158(W)	Ground	Stop lamp LH power supply	Output	Brake pedal	Depressed	Battery voltage
160(P)	Ground	Rear turn signal RH power supply	Output	Ignition switch ON	Turn signal switch OFF	0V
160(P)	Ground	Rear turn signal RH power supply	Output	Ignition switch ON	Turn signal switch RH	Courtesy of NISSAN NORTH AMERICA, INC. 6.5 V
161(GR)	Ground	Battery power supply	Input	Ignition switch	OFF	Battery voltage
1624(L)	Ground	Interior lamp control	Output	Map lamp and/or personal lamp	OFF	Battery voltage
1624(L)	Ground	Interior lamp control	Output	Map lamp and/or personal lamp	DOOR	0V
163(L)	Ground	Front door lock RH control	Output	Main power window and door lock/unlock switch	Unlock (actuator activated)	Battery voltage
163(L)	Ground	Front door lock RH control	Output	Main power window and door lock/unlock switch	Lock (actuator not activated)	0V
165(V)	Ground	Front door and fuel filler lid LOCK control	Output	Main power window and door lock/unlock switch	Lock (actuator activated)	Battery voltage
165(V)	Ground	Front door and fuel filler lid LOCK control	Output	Main power window and door lock/unlock switch	Unlock (actuator not activated)	0V
167(V)	Ground	Battery power supply (door lock 1)	Input	Ignition switch	OFF	Battery voltage
168(P)	Ground	Battery power supply (turn signal)	Input	Ignition switch	OFF	Battery voltage
169(GR)	Ground	Battery power supply (stop lamp)	Input	Ignition switch	OFF	Battery voltage
170(B)	Ground	Ground	-	Ignition switch	ON	0V
171(B)	Ground	Ground	-	Ignition switch	ON	0V
172(G)	Ground	Front door LH and fuel filler lid UNLOCK control	Output	Main power window and door lock/unlock switch	Unlock (actuator activated)	Battery voltage
172(G)	Ground	Front door LH and fuel filler lid UNLOCK control	Output	Main power window and door lock/unlock switch	Lock (actuator not activated)	0V
174(B)	Ground	Step lamp control	Output	Step lamp	OFF	Battery voltage
174(B)	Ground	Step lamp control	Output	Step lamp	ON	0V
175(R)	Ground	Battery power supply (door lock 2)	Input	Ignition switch	OFF	Battery voltage
176(P)	Ground	Battery power supply (wiper)	Input	Ignition switch	OFF	Battery voltage

1: With rain sensing front wipers234
