Removal and Installation

REMOVAL

1. Remove instrument finisher B. Refer to Removal and Installation .

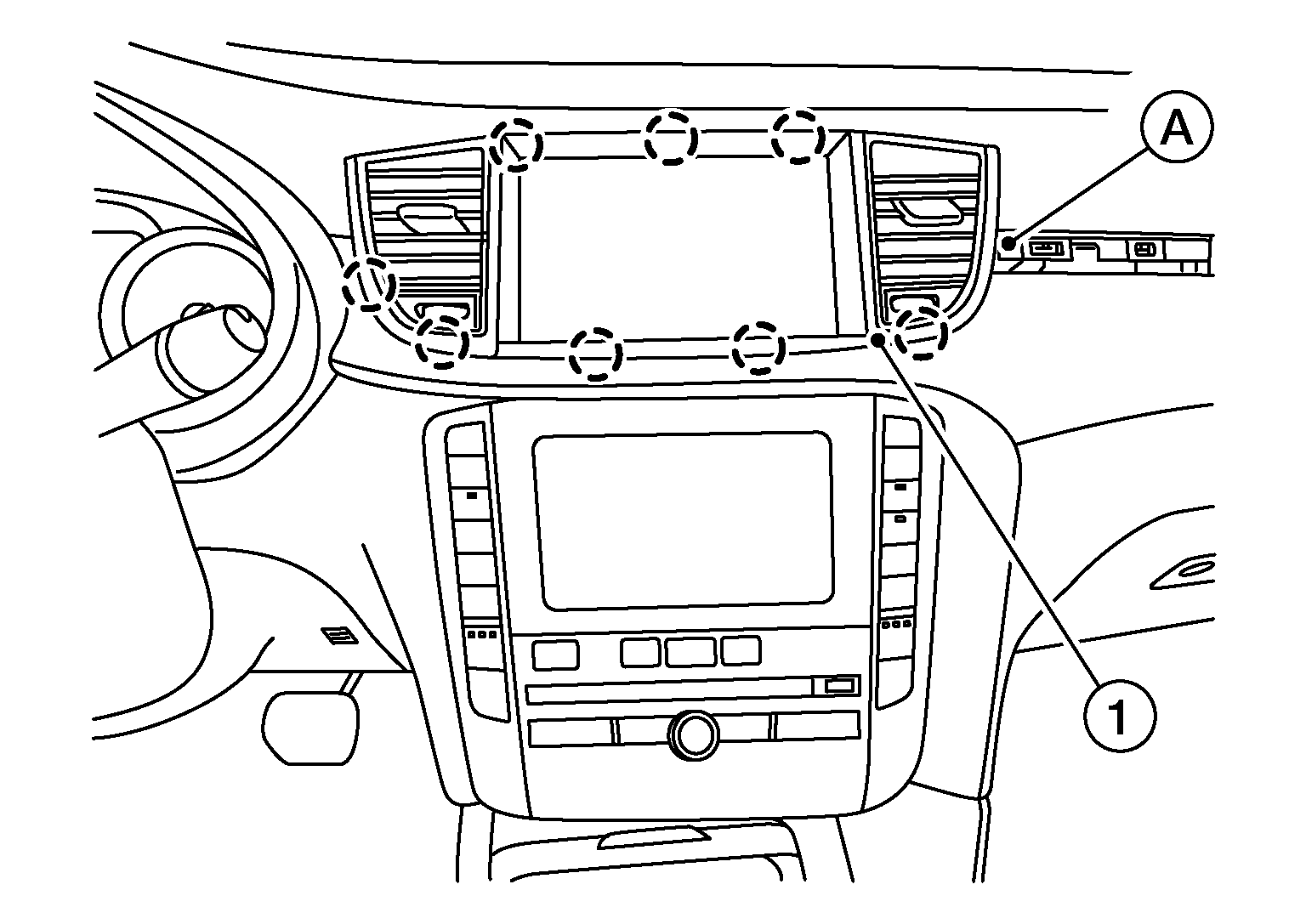

2. Remove screw (A) from cluster lid D (1).

   Courtesy of NISSAN NORTH AMERICA, INC.

   : Pawl

3. Using a suitable tool, release pawls and remove cluster lid D.

INSTALLATION

Installation is in the reverse order of removal.
