Exploded View

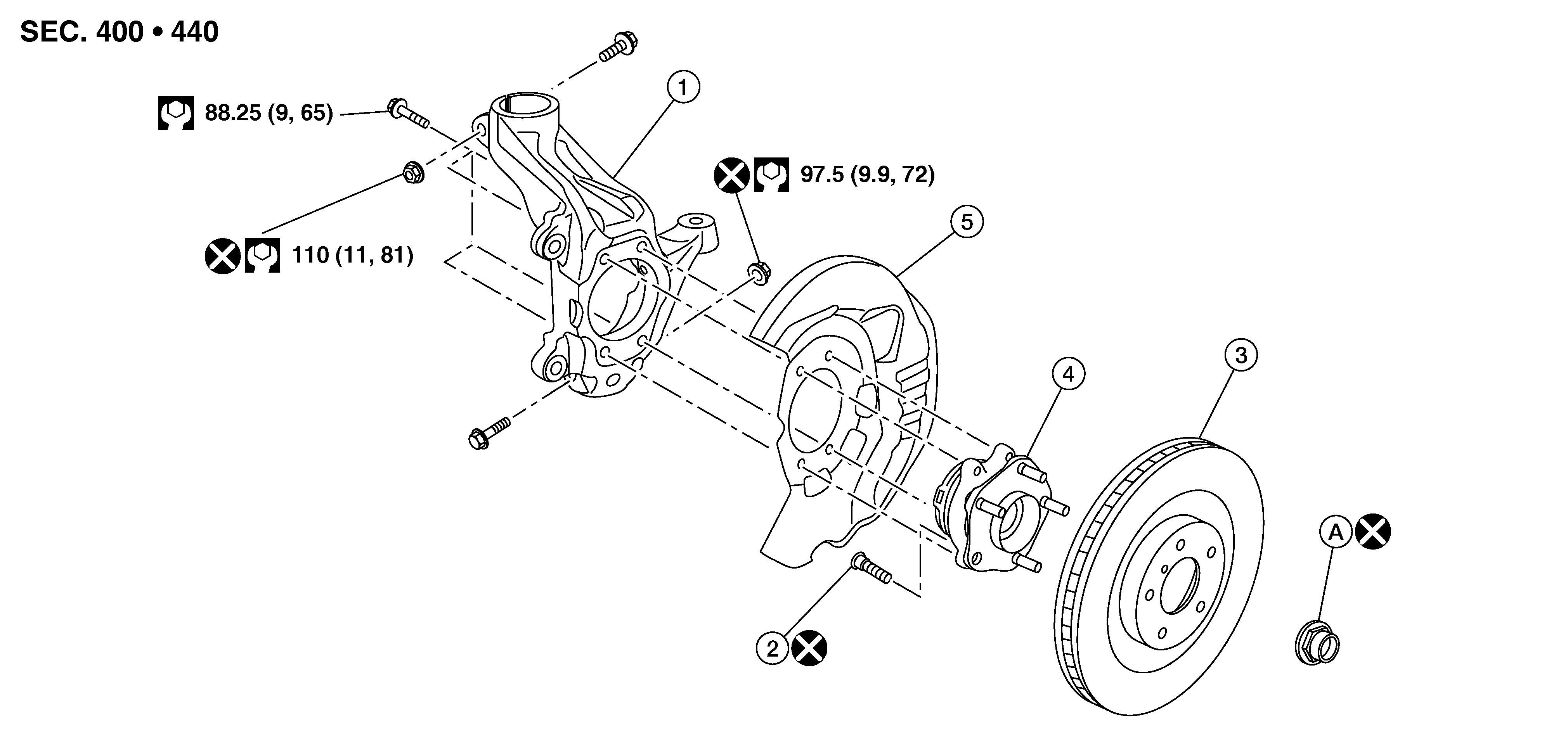

Fig 1: Front Wheel Hub And Bearing With Torque Specifications
GNSDB138882Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering knuckle 2. Hub bolt 3. Rotor
4. Wheel hub and bearing assembly 5. Splash guard SYMBOL Front
A. Refer to Removal and Installation .
