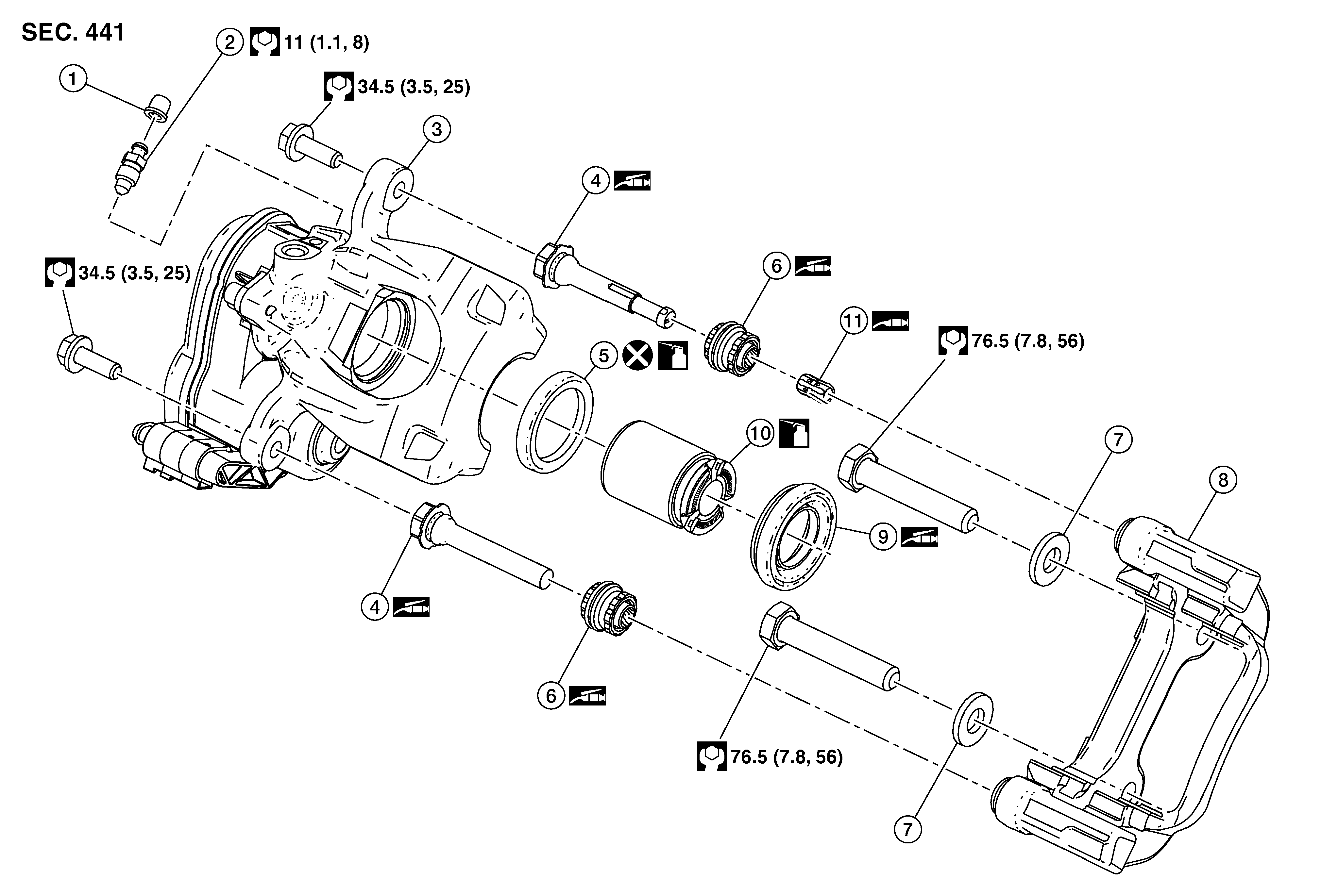

Exploded View

GNSDB138968Courtesy of NISSAN NORTH AMERICA, INC.
1. Bleeder cap 2. Bleeder 3. Brake caliper body
4. Slide pin 5. Piston seal 6. Slide pin boot
7. Washer 8. Torque member 9. Piston boot
10. Piston 11. Bushing SYMBOL Brake fluid
SYMBOL Grease
