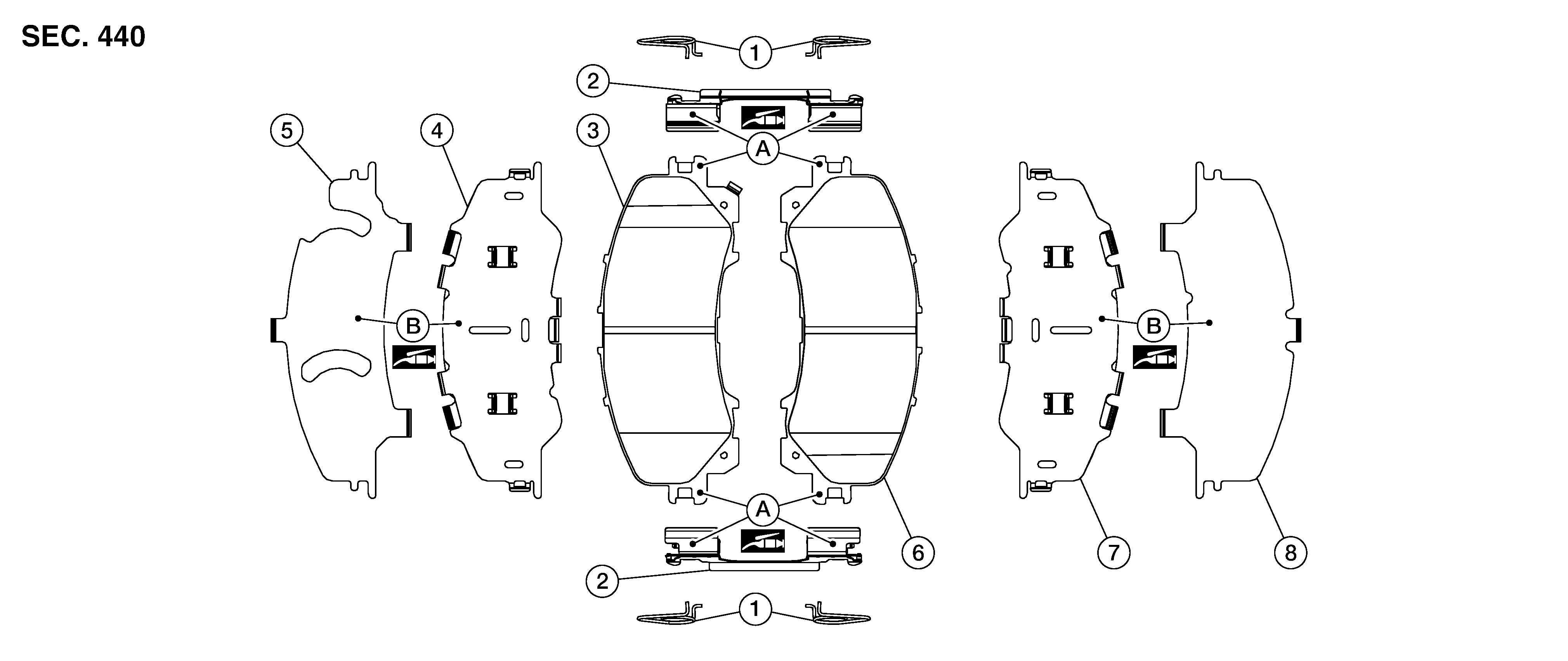

Exploded View
| 1. | Pad return spring | 2. | Anti-rattle clip | 3. | Inner pad |
| 4. | Inner shim | 5. | Inner shim cover | 6. | Outer pad |
| 7. | Outer shim | 8. | Outer shim cover | A. | Molykote® 7439 grease. Refer to Removal and Installation . |
| B. | Molykote® AS-880N grease. Refer to Removal and Installation . |
