Exploded View

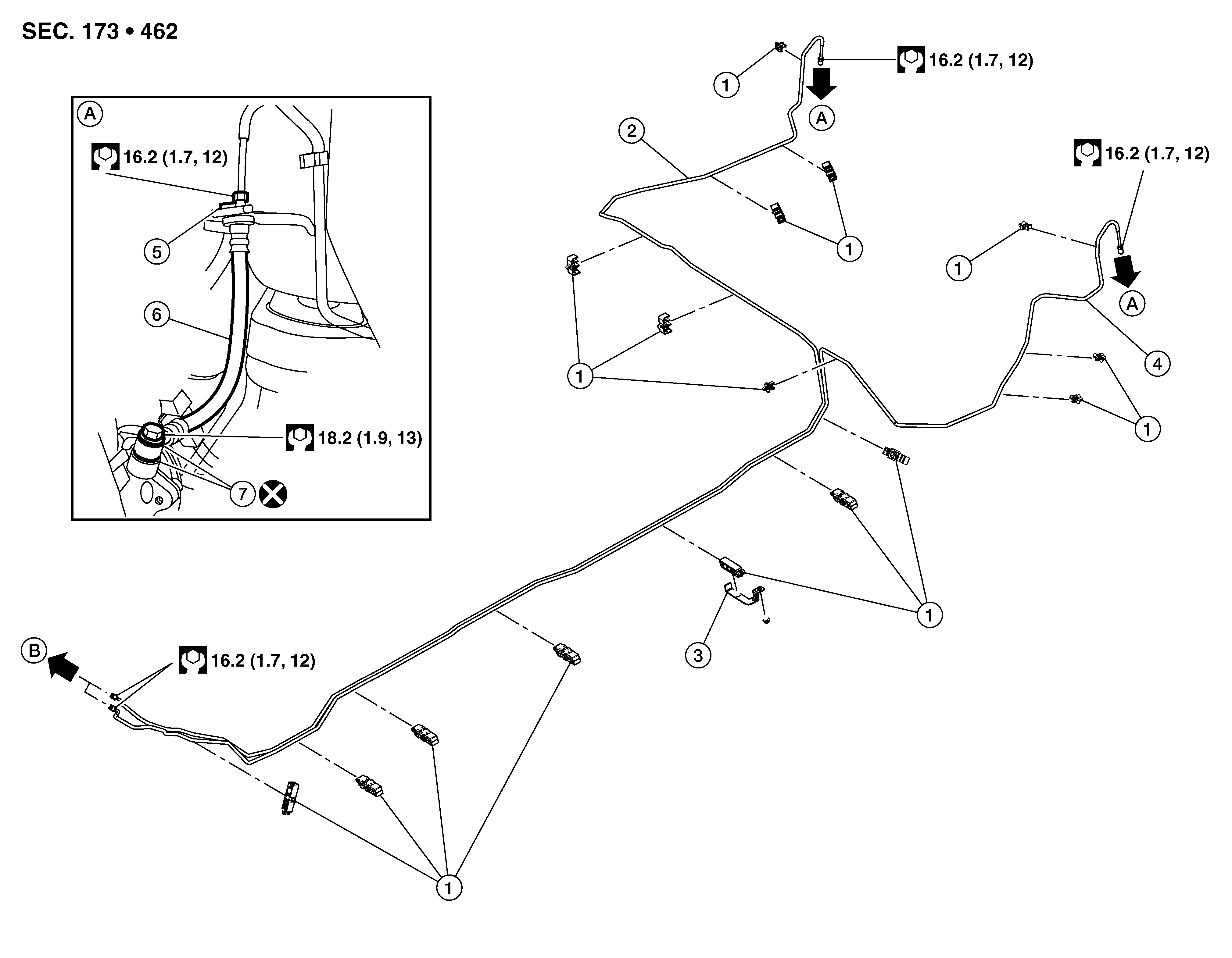

Fig 1: Brake Piping With Torque Specifications - Rear

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Rear brake tube (RH)	3.	Bracket
4.	Rear brake tube (LH)	5.	Lock plate	6.	Rear brake hose
7.	Copper sealing washers	A.	To rear brake hose	B.	To front brake tube. Refer to Exploded View .
