Removal and Installation

REMOVAL

  1. Remove the driver seat. Refer to Removal and Installation .

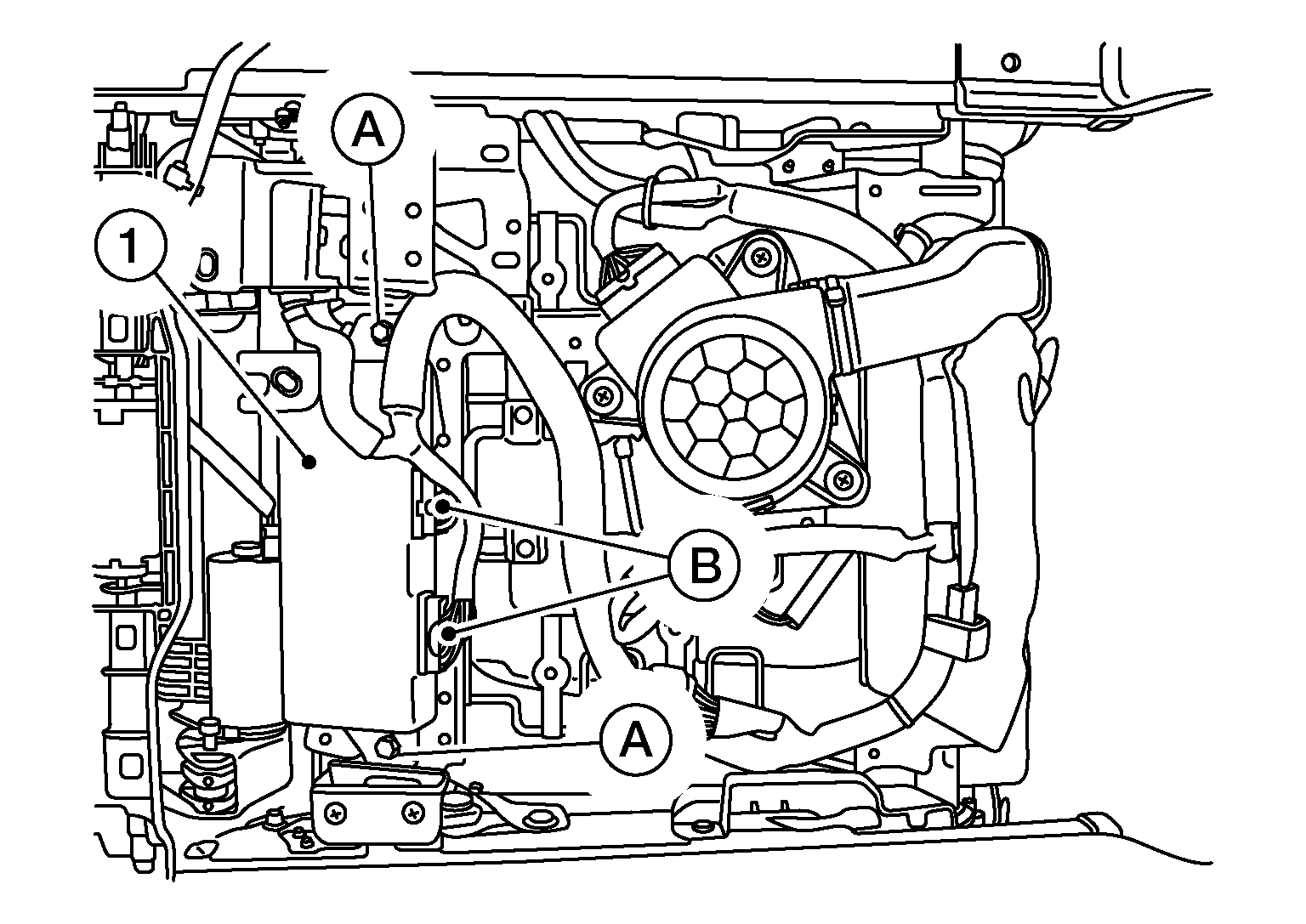

  2. Remove the driver seat control unit screws (A).
    GNSDB139446Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connectors (B) from driver seat control unit.
  4. Remove the driver seat control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If replacing the driver seat control unit, perform "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT". Refer to Description .
