Removal and Installation

REMOVAL

Fully open the hood.

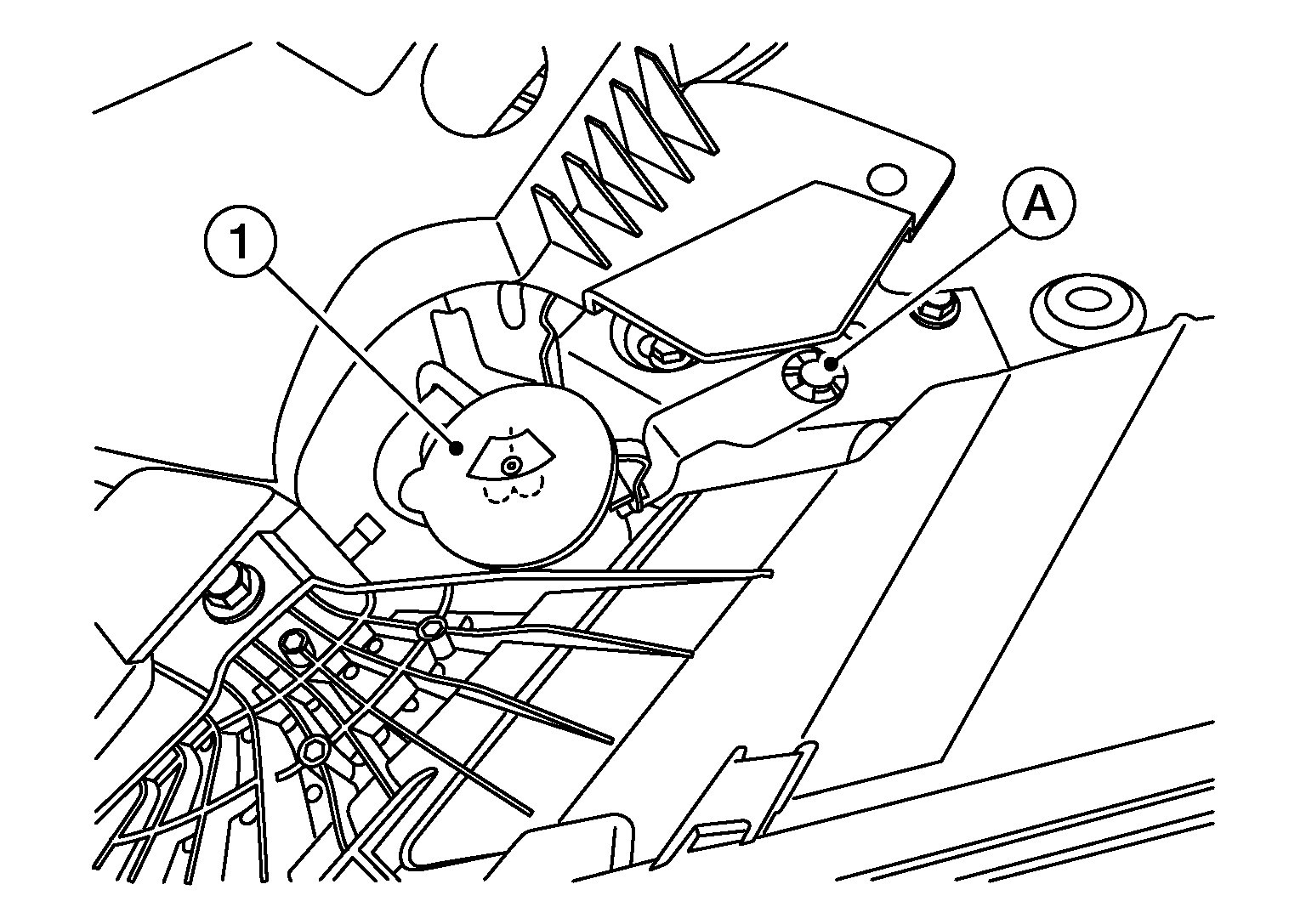

Remove the washer tank inlet clip (A) from the washer reservoir and pull the washer tank inlet (1) from the washer tank.

Courtesy of NISSAN NORTH AMERICA, INC.
Partially remove the front fender protector (LH). Refer to Exploded View .
Disconnect the harness connector from the washer pump.
Disconnect the harness connector from the washer level switch.
Disconnect the front washer tube and rear washer tube.
Remove the washer tank bolts.
Remove the washer tank.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Add water to the top of washer tank inlet after installing. Check that no leaks exist.
