Removal and Installation
CAUTION:
When the rain sensor is removed from the windshield, the rain sensor cannot be reused.
REMOVAL
- Release clips and remove the inside mirror cover.
- Release clips and remove the rain sensor cover.

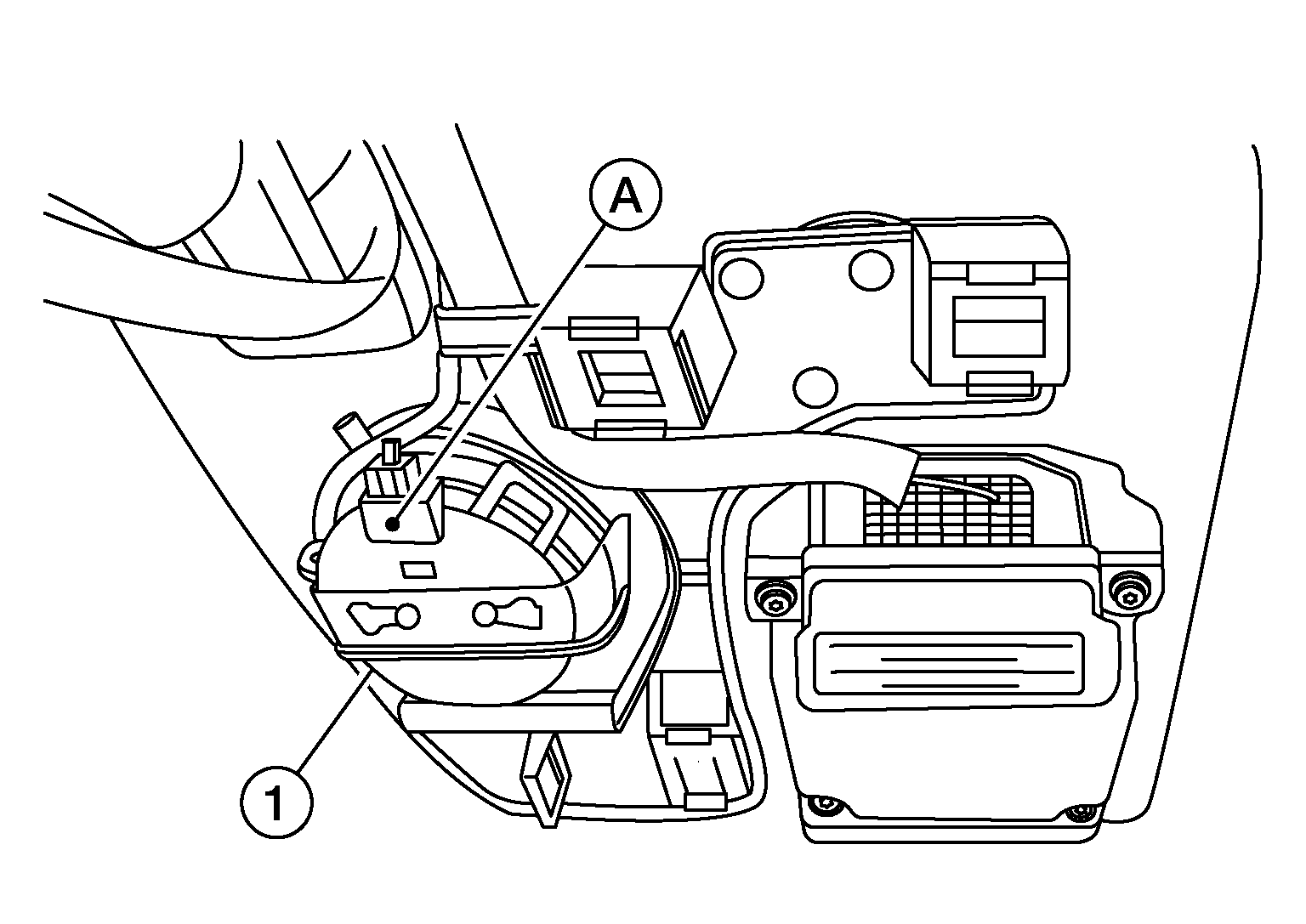

- Disconnect harness connector (A) from the rain sensor (1).
- Release the metal spring clips, then remove the rain sensor (1) from the windshield glass.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- The surface of the windshield should be cleaned.
- Do not touch gel/adhesive of the new part.
- Be sure the metal spring clips are locked so the rain sensor is installed securely.
- Do not reuse the rain sensor.
