Switch Name and Function

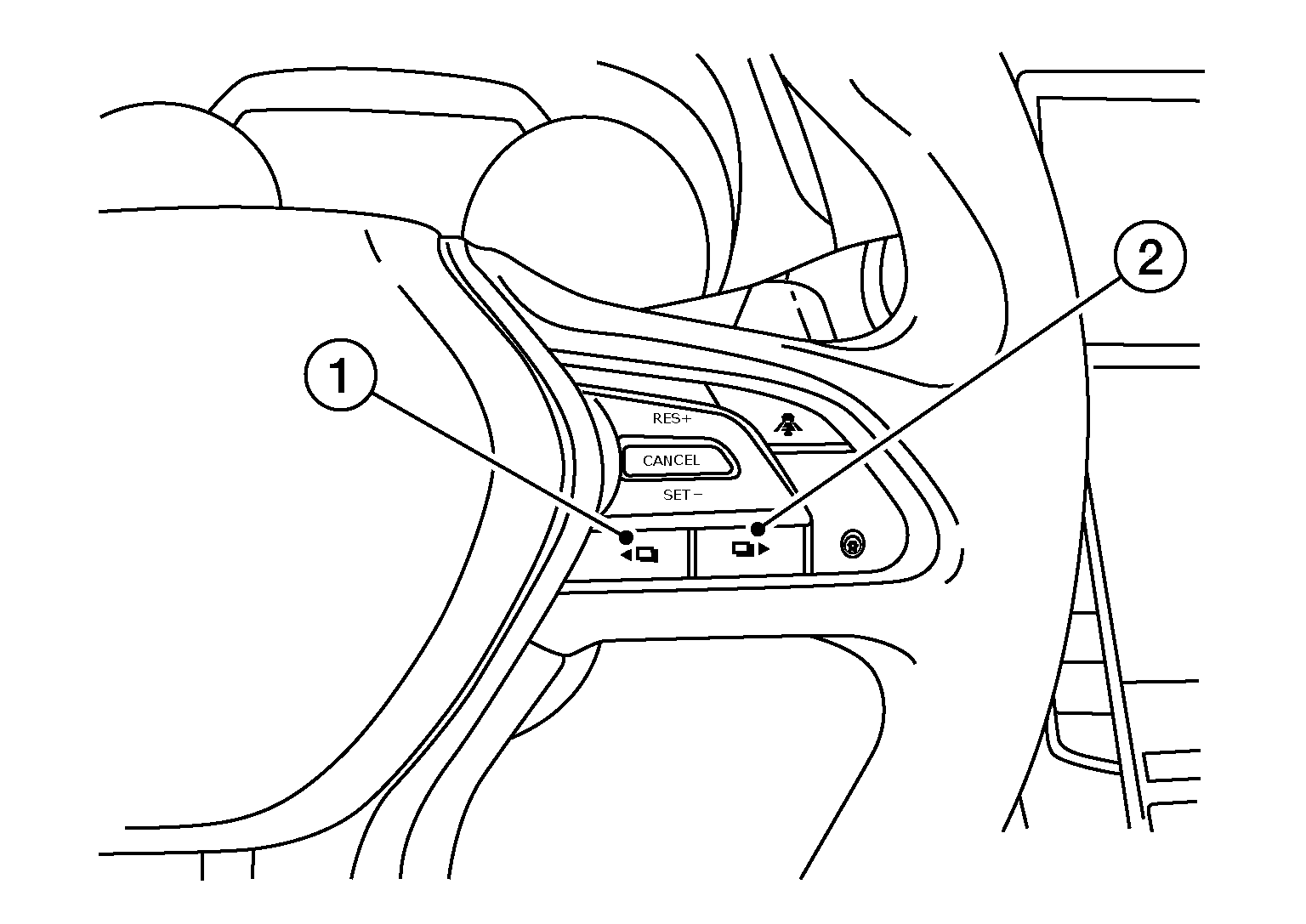

STEERING SWITCHES

Transmits the steering switch signal to the combination meter.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Operation	Description
1.	Display back switch	Press	Switches the screen shown on the information display to the previous screen.
2.	Display next switch	Press	Switches the screen shown on the information display to the next screen.

TRIP RESET SWITCH

Transmits the trip reset switch signal to the combination meter.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Operation	Description
1.	Trip reset switch	Press	The trip meter can be switched between A and B. Trip meter A/B can be reset by pressing and holding the trip reset switch. A trip computer value displayed on the information display can be reset by pressing and holding the trip reset switch for 1 second or more. All trip computer values can be reset by pressing and holding the trip reset switch for 3 seconds or more.

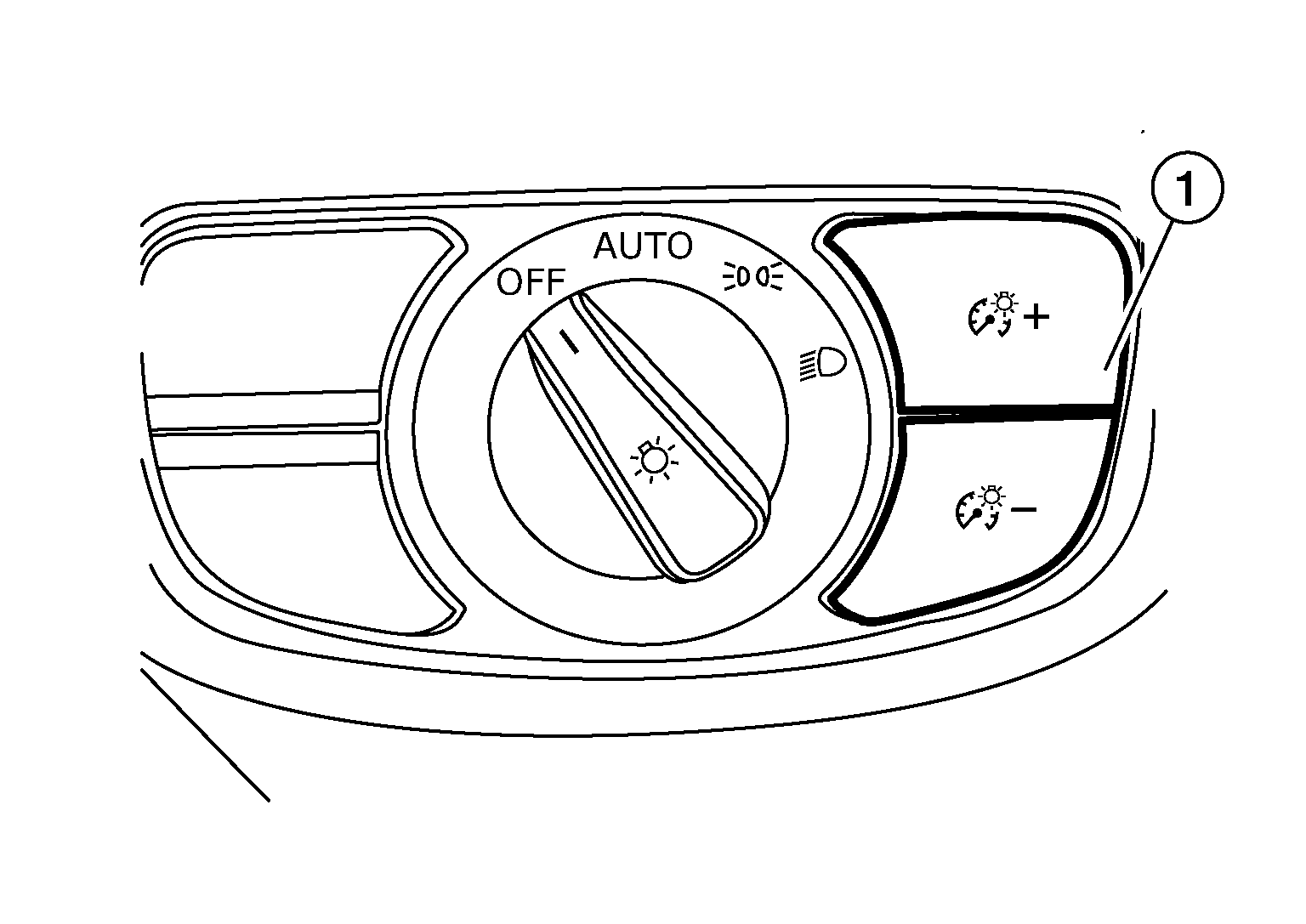

MASTER LIGHT SWITCH (ILLUMINATION CONTROL SWITCH)

Transmits the following signals to the combination meter:

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Operation	Description
1.	Illumination control switch (+)	Press	An illuminance level of the back light of the combination meter can be adjusted.
1.	Illumination control switch (-)	Press

ITS SWITCH ASSEMBLY (HEAD UP DISPLAY SWITCH)

Turns the head up display unit ON/OFF.

Courtesy of NISSAN NORTH AMERICA, INC.
