Head Up Display Unit
Head Up Display Unit

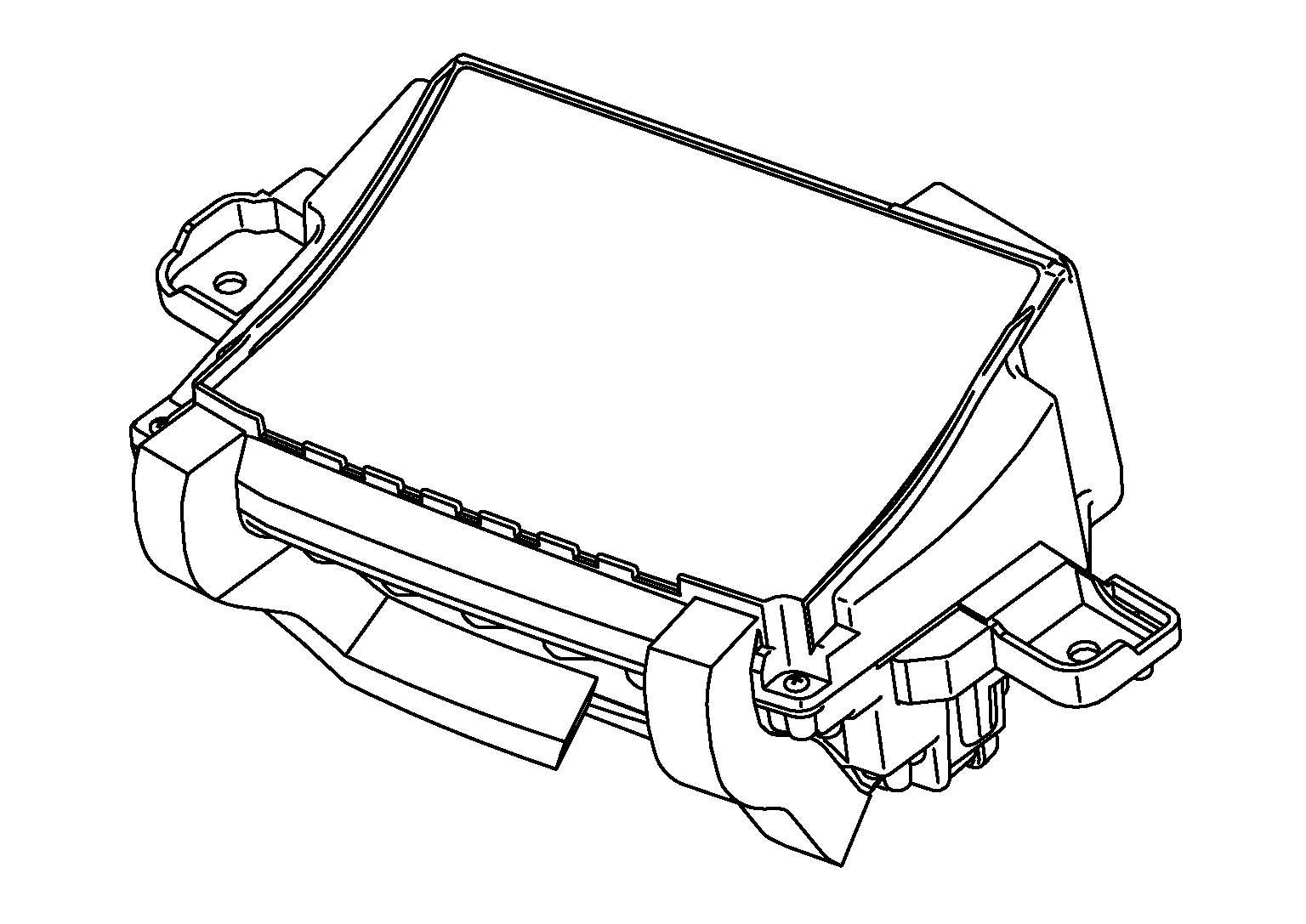

The head up display unit is installed in the top left side of the instrument panel.
Courtesy of NISSAN NORTH AMERICA, INC.
Necessary signals are transmitted/received to/from control unit via AV and CAN communication.
Courtesy of NISSAN NORTH AMERICA, INC.
