Component Location

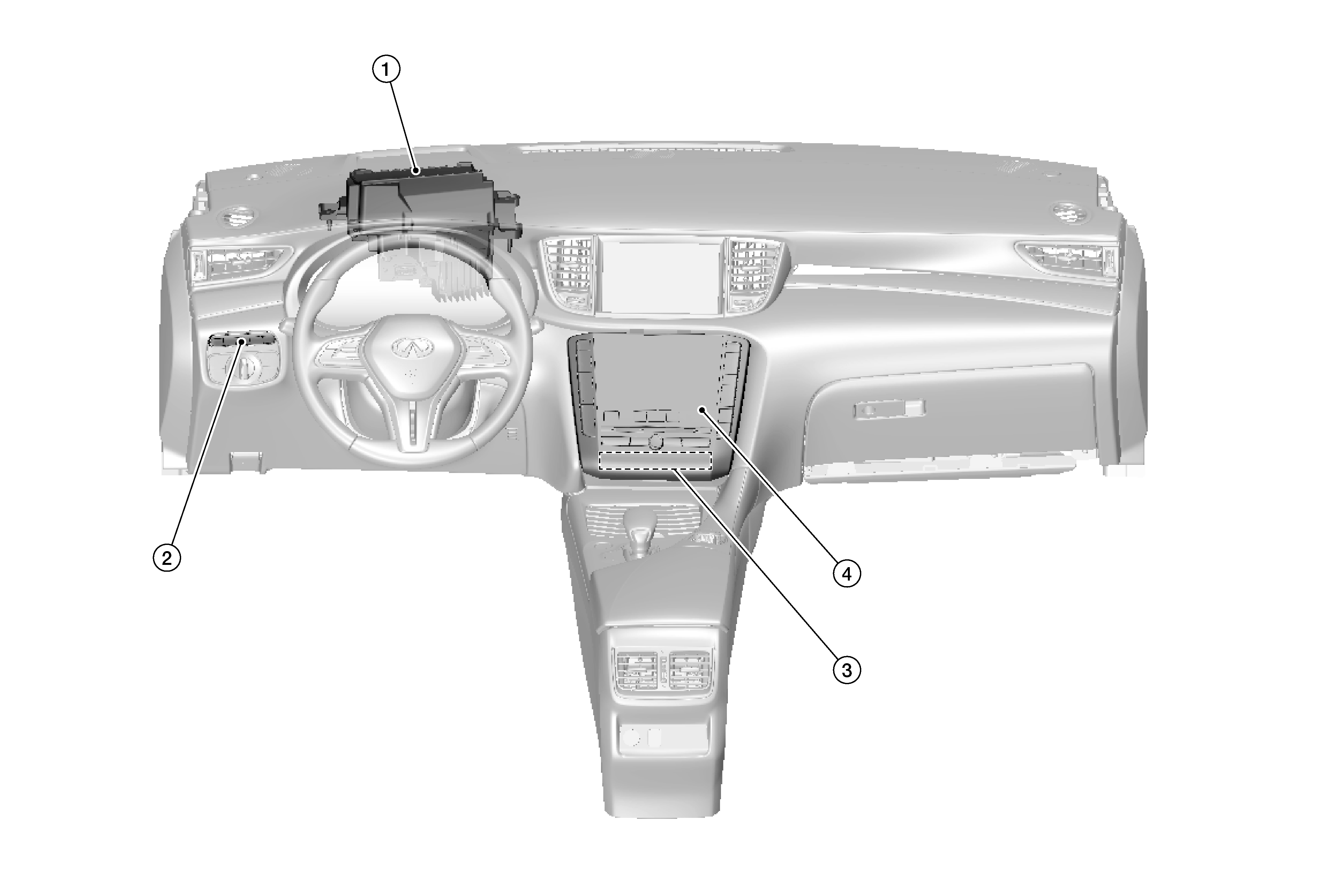

GNSDB139024Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. Head up display unit Refer to Head Up Display Unit .
2. ITS (Information Technology Suite) switch assembly (head up display switch) Refer to ITS Switch Assembly (Head Up Display Switch) .
3. AV control unit Receives head up display signals via AV communication.
4. Integral switch Refer to Integral Switch .
