Component Inspection

1. 1. Remove the fuel level sensor unit and fuel pump (fuel level sensor) (main). Refer to Removal and Installation .
   2. Check the resistance between fuel level sensor unit and fuel pump (fuel level sensor) (main).

      Courtesy of NISSAN NORTH AMERICA, INC.

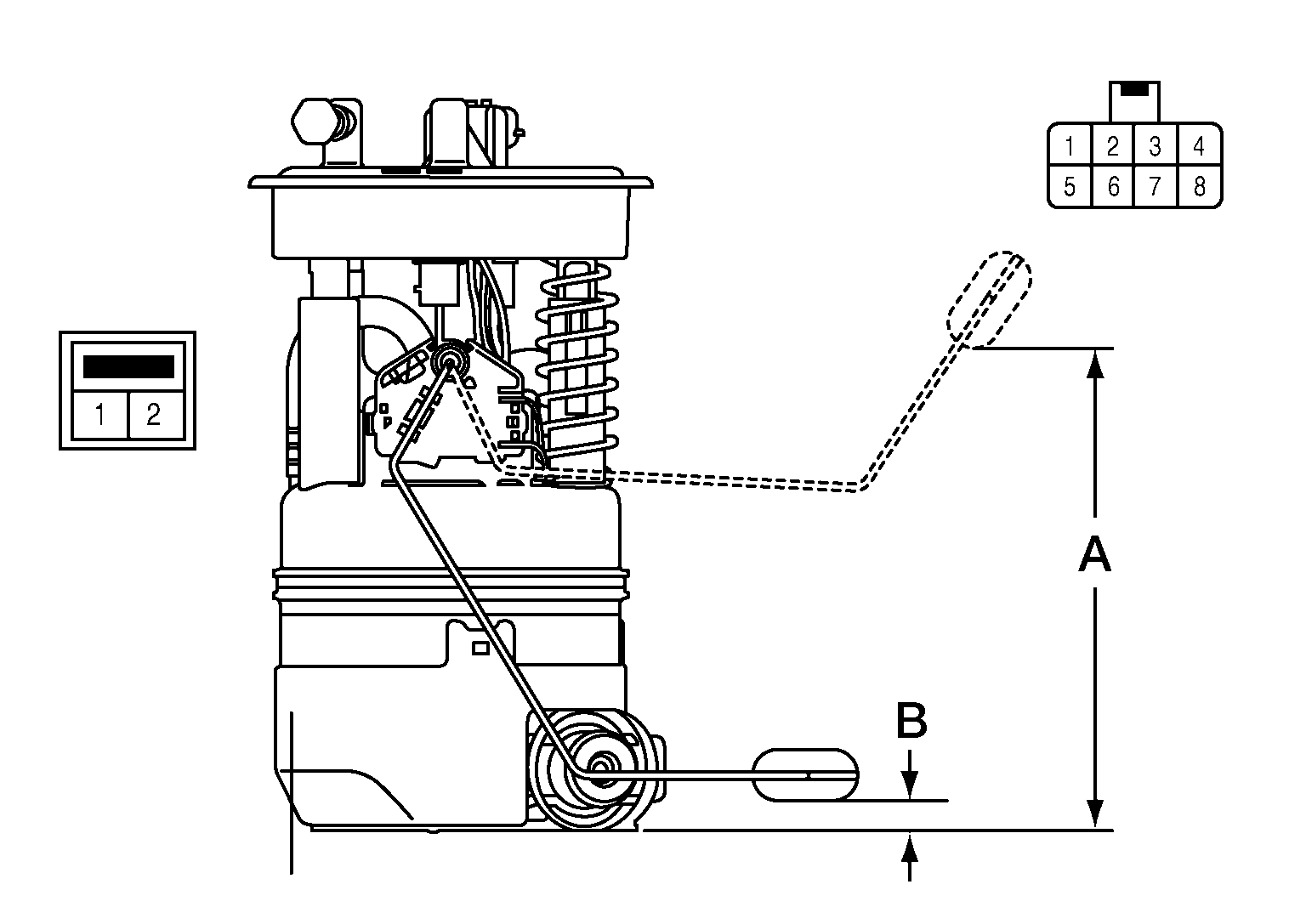

      Fuel level sensor unit and fuel pump (fuel level sensor) (main)		Condition	Resistance (Ω) (Approx.)	Height[mm (in)]
      Terminals
      3	1	Full* (A)	25.5	179.2 (7.05)
      		Empty* (B)	125.5	10.2 (0.4)
      2	2	-	0	-

      *: When float rod is in contact with stopper.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Replace fuel level sensor unit and fuel pump (fuel level sensor) (main). Refer to Removal and Installation .

1. 1. Remove the fuel level sensor unit (sub). Refer to Removal and Installation .
   2. Check the resistance between fuel level sensor unit (sub).

      Courtesy of NISSAN NORTH AMERICA, INC.

      Fuel level sensor unit (sub)		Condition	Resistance (Ω) (Approx.)	Height[mm (in)]
      Terminals
      2	1	Full* (A)	65.5	179.9 (7.8)
      		Empty* (B)	157.5	10.1 (0.3)

      *: When float rod is in contact with stopper.

Is the inspection result normal?

YES>>

Inspection End.

NO>>

Replace fuel level sensor unit (sub). Refer to Removal and Installation .
