Work Procedure (Preparation)

  1. PERFORM SELF-DIAGNOSIS

    Perform self-diagnosis of front camera unit.

    Is any DTC detected?

    Except "C1B01">>

    Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to DTC Index .

    "C1B01" or no DTC>>

    GO TO 2.

  2. PREPARATION BEFORE CAMERA AIMING ADJUSTMENT
    1. Perform pre-inspection for diagnosis. Refer to Inspection Procedure .
    2. Adjust the tire pressure to the specified pressure value.
    3. Maintain no-load in vehicle.
    4. Check if coolant and engine oil are filled up to correct level and fuel tank is full.
    5. Shift the selector lever to "P" position and release the parking brake.
    6. Clean the windshield.
    7. Completely clear off the instrument panel.
      NOTE: SYMBOL If any fixed object is put on instrument panel, cover the upper of the instrument panel with black cloth to prevent an object from reflecting in the windshield.

    >>

    GO TO 3.

  3. PREPARATION OF J-52266-2 ALIGNMENT TARGET

    Prepare the alignment target according to the following procedure and the figure.

    1. Prepare the target sheet (J-52266-2), or tape three sheets of black paper and three sheets of white paper together with dimensions of 120 mm(4.72 in) x 120 mm (4.72 in) to make a target of 360 mm (14.17 in) x 240 mm (9.45 in). (Correct the magnification of print and print the target mark sample in the service information on the black paper. Refer to Work Procedure .)
      GNSDB138440Courtesy of NISSAN NORTH AMERICA, INC.
      L : 120 mm (4.72 in)
      W : 120 mm (4.72 in)
      NOTE: SYMBOL
      • Use a transparent tape.
      • Never apply tape to target surface.
      • Never allow a clearance on the black and white boundary.
    2. Attach the target mark to a movable board.
      NOTE: SYMBOL
      • Use the white wall that peripheral area of the target is monochrome such as.
      • Notice that the cross of the target is horizontal and vertical.

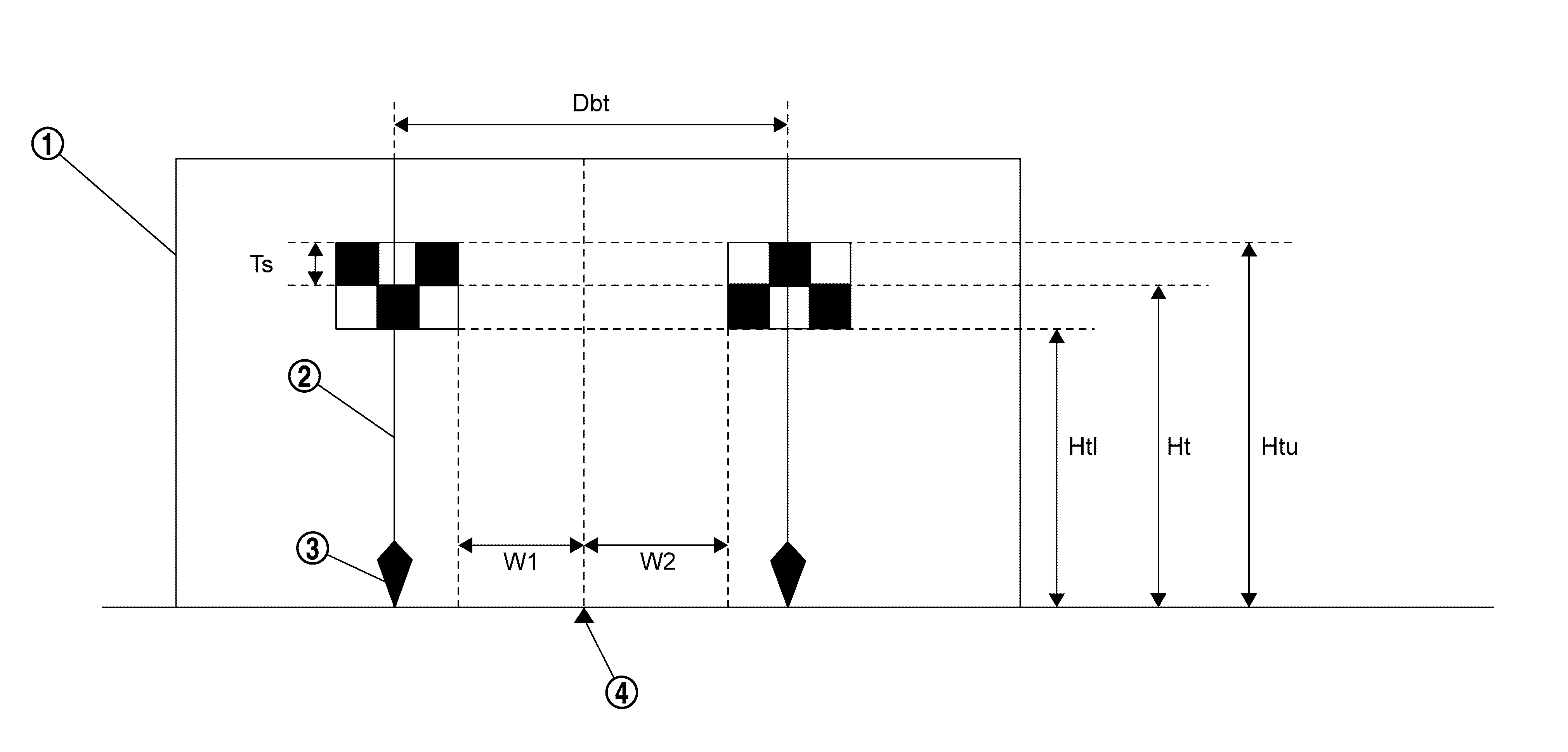

      GNSDB133044Courtesy of NISSAN NORTH AMERICA, INC.
      SYMBOL White wall SYMBOL String SYMBOL Cone
      SYMBOL Center between two targets
      Side of a target (Ts) : 120 mm (4.72 in)
      Height of a target lower end (Htl) : 1, 180 mm (46.46 in)
      Height of a target center (Ht) : 1, 300 mm (51.18 in)
      Height of a target upper end (Htu) : 1, 420 mm (55.91 in)
      Width between a right target center from a left target center (Dbt) : 720 mm (28.35 in)
      W1 : 180 mm (7.09 in)
      W2 : 180 mm (7.09 in)

    >>

    Proceed to Work Procedure (Target Setting) .
