Removal and Installation
REMOVAL
- Remove driver air bag module. Refer to Removal and Installation .

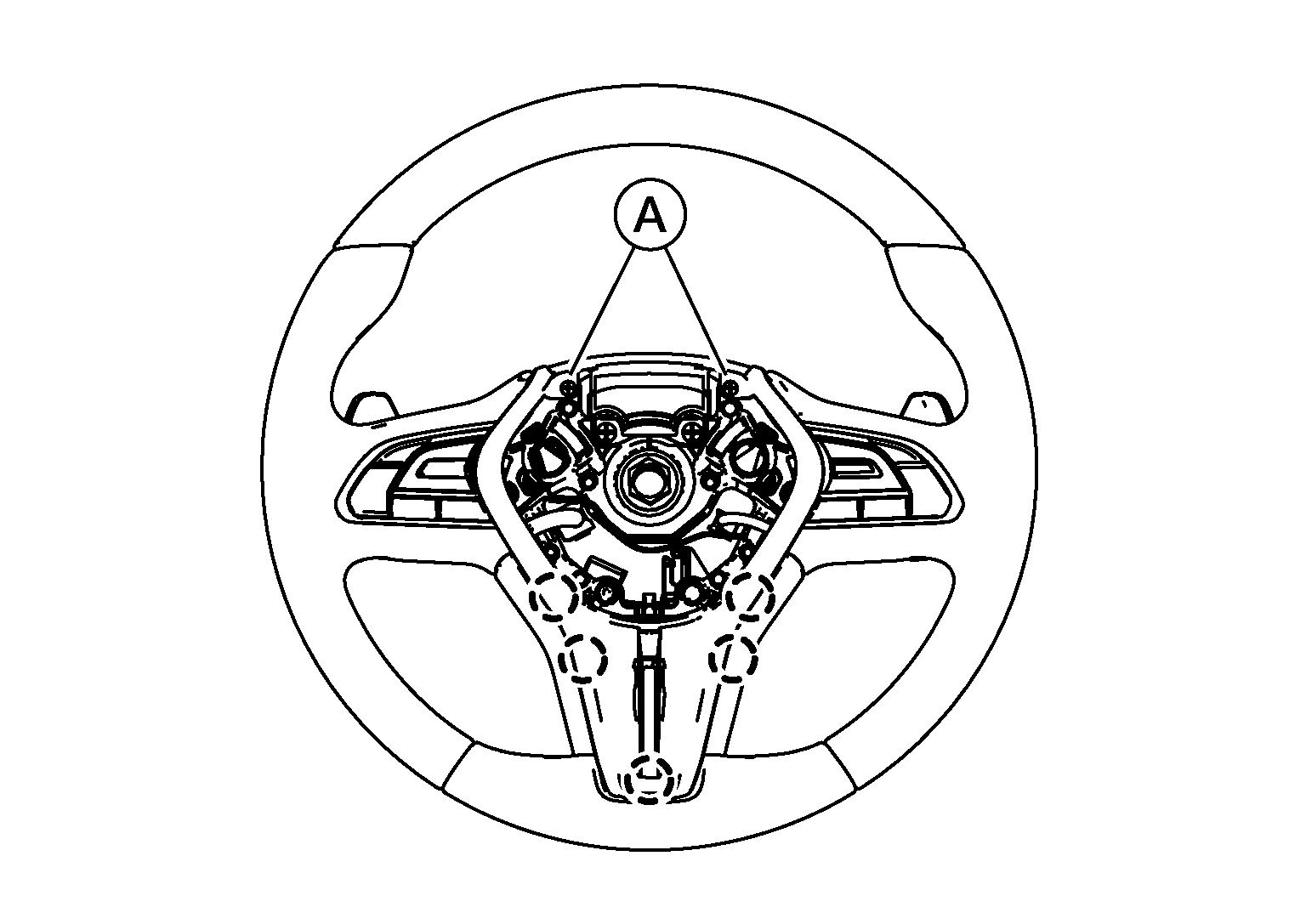

- Remove screws (A) and release pawls using suitable tool.
: Pawl - Remove steering wheel finisher.
- Disconnect harness connector from ICC steering switch.
- Using suitable tool, release pawls and remove ICC steering switch.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Always perform the ICC system action test to check that the ICC system operates normally after replacing the distance sensor or repairing any ICC system malfunction. Refer to Distance Sensor Adjustment .
