Removal and Installation: Removal

  1. Using a suitable tool, release clips and remove instrument side finisher [LH (1)].
    GNSDB38696Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal Clip
  2. Remove instrument lower panel LH screw (A).
    GNSDB38239Courtesy of NISSAN NORTH AMERICA, INC.

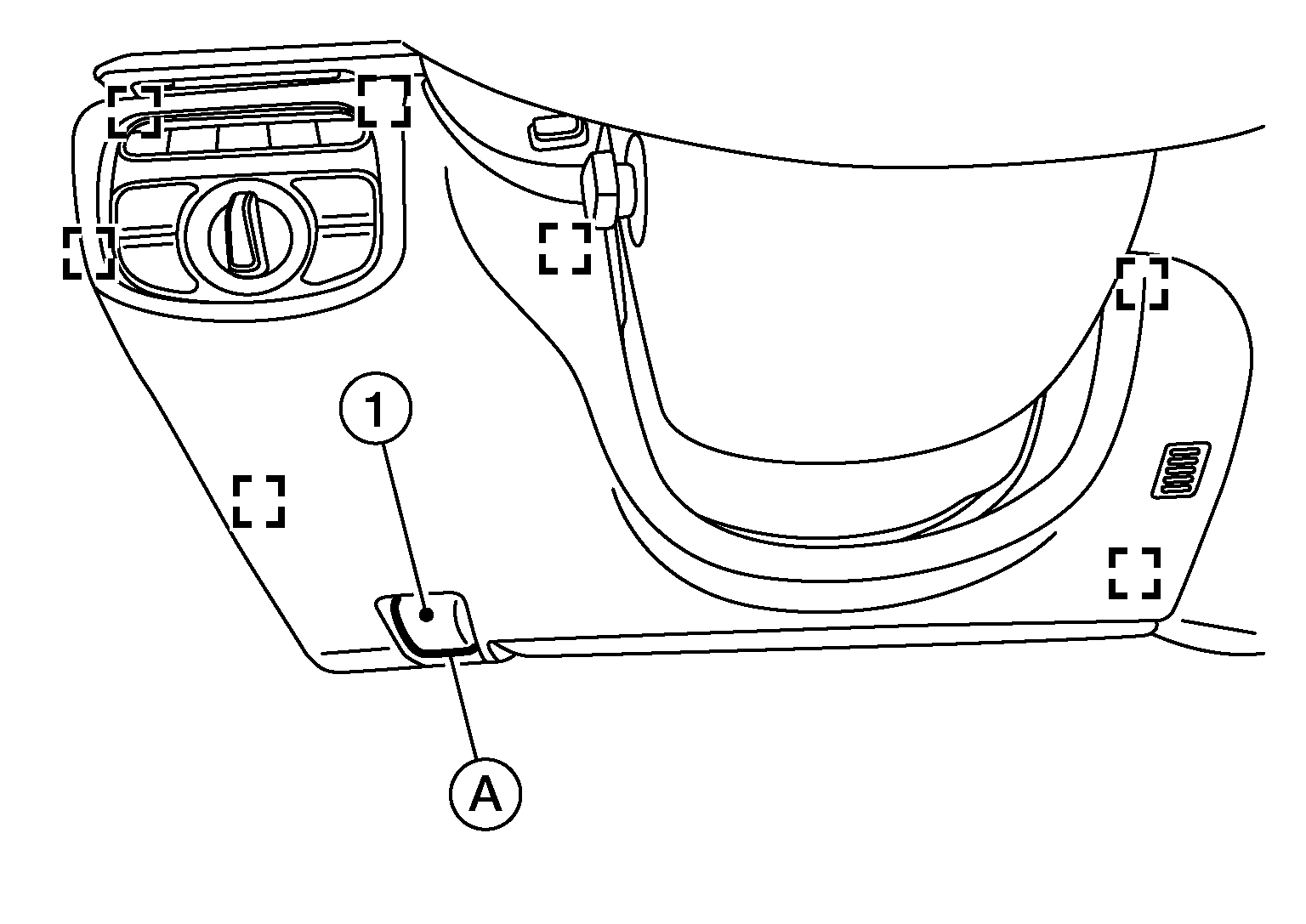

  3. Disconnect hood lock release cable from hood lock release handle (1) and remove screw (A).
    GNSDB37761Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
  4. Using a suitable tool, release clips and remove instrument lower panel LH.
  5. Disconnect aspirator hose from in car sensor.
  6. Disconnect harness connectors and remove instrument lower panel LH.
