Exploded View

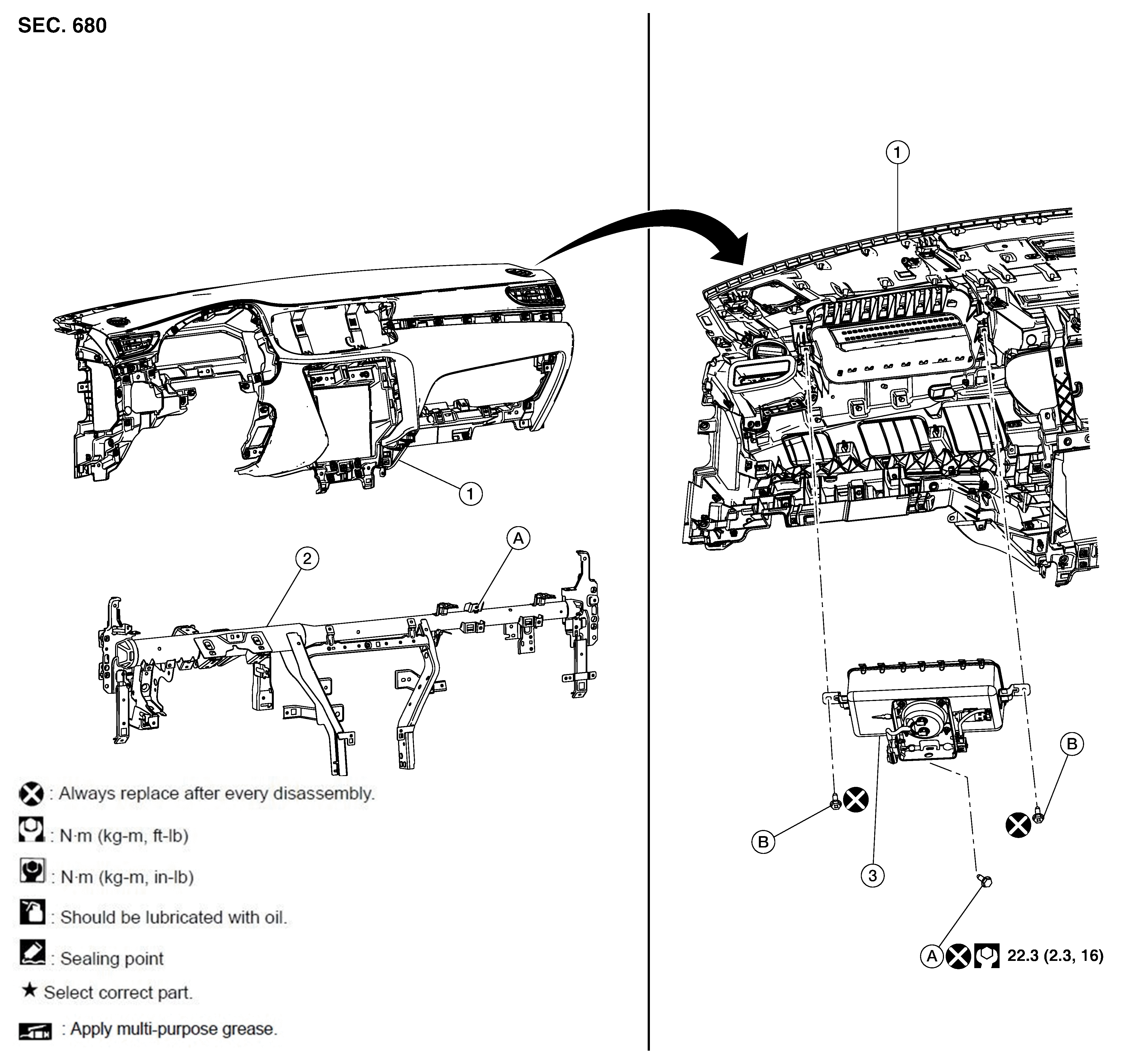

GNSAWHIA0206Z-206Courtesy of NISSAN NORTH AMERICA, INC.

1.

Instrument panel assembly

2.

Steering member assembly

3.

Front passenger air bag module

A.

Bolt

B.

Screw
