Starting Combination Meter Self-Diagnosis Mode
- Check combination meter power supply and ground circuits if self-diagnosis mode does not start. Refer to Diagnosis Procedure . Replace combination meter if power supply and ground circuits are found to be normal and self-diagnosis mode does not start. Refer to Removal and Installation .
- Combination meter self-diagnosis mode will function with the ignition switch ON. Combination meter self-diagnosis mode will exit upon pressing the push-button ignition switch OFF.
How to Initiate Self-Diagnosis Mode
- Ignition switch OFF.
- While pressing the trip reset switch (1), place the ignition switch ON.
- Keep pressing the trip reset switch for 1 second or more.
- Press the trip reset switch at least 3 times. (Within 7 seconds after the push-button ignition switch is pressed ON.)
- "Work instruction code" is indicated in the top portion of information display and self-diagnosis is started.
- The mode switches in the order shown below each time the trip reset switch is pressed.
|
Test order |
Test item |
Description |
|
|
1 |
Work instruction code |
This item is displayed, but not used. |
|
|
2 |
Part number |
||
|
3 |
Software code |
||
|
4 |
EEPROM code |
||
|
5 |
Hardware code |
||
|
6 |
P.C.B code |
||
|
7 |
Circuit check |
The pointer of the following items moves from 0 to MAX twice:
NOTE:
If any one of the pointers does not sweep, replace combination meter.
|
|
|
8 |
Color check *1 |
Performs the color check of the information display. |
|
|
9 |
error code *2 |
Displays the error code of the following items:
|
|
|
10 |
Warning/indicator lamp check |
Warnings/indicator lamps illuminate.
NOTE:
|
|

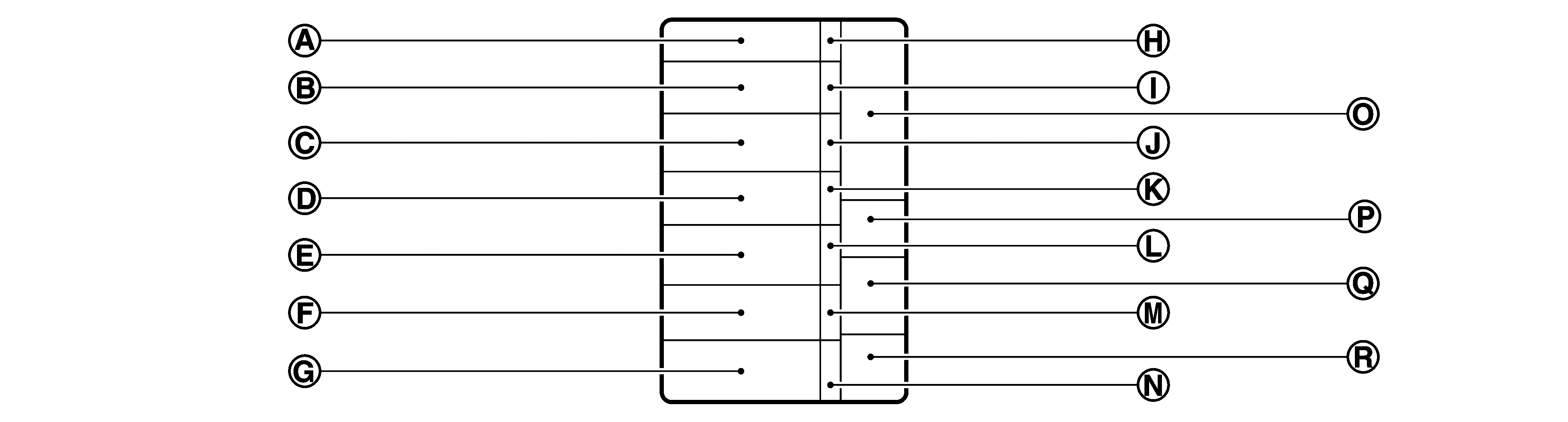

*1: Color Check
|
|
Blue |
|
Red |
|
Pink |
|
|
Green |
|
Light blue |
|
Yellow |
|
|
White |
|
White |
|
Black |
|
|
Light blue |
|
Black |
|
Pink |
|
|
Black |
|
Blue |
|
Black |
|
|
Dark blue |
|
White |
|
Blue |
*2: Error Code
|
Item |
Code |
Description |
Action to take/Reference |
|
|
|
Speedometer |
0 |
Normal |
-- |
|
1 |
A vehicle speed signal cannot be received from ABS actuator and electric unit (control unit). |
Select "Self Diagnostic Result" mode of "ABS". Refer to DTC Index . |
||
|
2 |
A vehicle speed signal received from the ABS actuator and electric unit (control unit) is abnormal. |
|||
|
|
Tachometer |
0 |
Normal |
-- |
|
1 |
An engine speed signal cannot be received from ECM. |
Select "Self Diagnostic Result" mode of "ENGINE". Refer to DTC Index . |
||
|
|
Fuel gauge |
0 |
Normal |
-- |
|
1 |
Fuel gauge circuit is short. |
Refer to Diagnosis Procedure . |
||
|
2 |
Fuel gauge circuit is open. |
|||
|
|
Engine coolant temperature gauge |
0 |
Normal |
-- |
|
1 |
An engine coolant temperature signal cannot be received from ECM. |
Select "Self Diagnostic Result" mode of "ENGINE". Refer to DTC Index . |
||
|
|
Illumination switch |
0 |
Normal |
-- |
|
1 |
Illumination switch circuit is shorted for 5 minutes or more. |
Refer to Diagnosis Procedure . |
||
|
|
Trip reset switch |
0 |
Normal |
-- |
|
2 |
Trip reset switch circuit is shorted for 5 minutes or more. |
Refer to Diagnosis Procedure . |
||
|
|
-- |
0 |
Displays "0" constantly. |
-- |
|
|
-- |
0 |
Displays "0" constantly. |
-- |
How to Reset Error Code
Error codes stored in combination meter can be reset by following the instructions below:
- Ignition switch OFF.
- While pressing the trip reset switch, ignition switch ON.
- Keep pressing the trip reset switch for 1 second or more.
- Press the trip reset switch at least 3 times. (Within 7 seconds after the push-button ignition switch is pressed ON.)
- Ignition switch OFF.
- Perform self-diagnosis and check that the error codes are reset.
