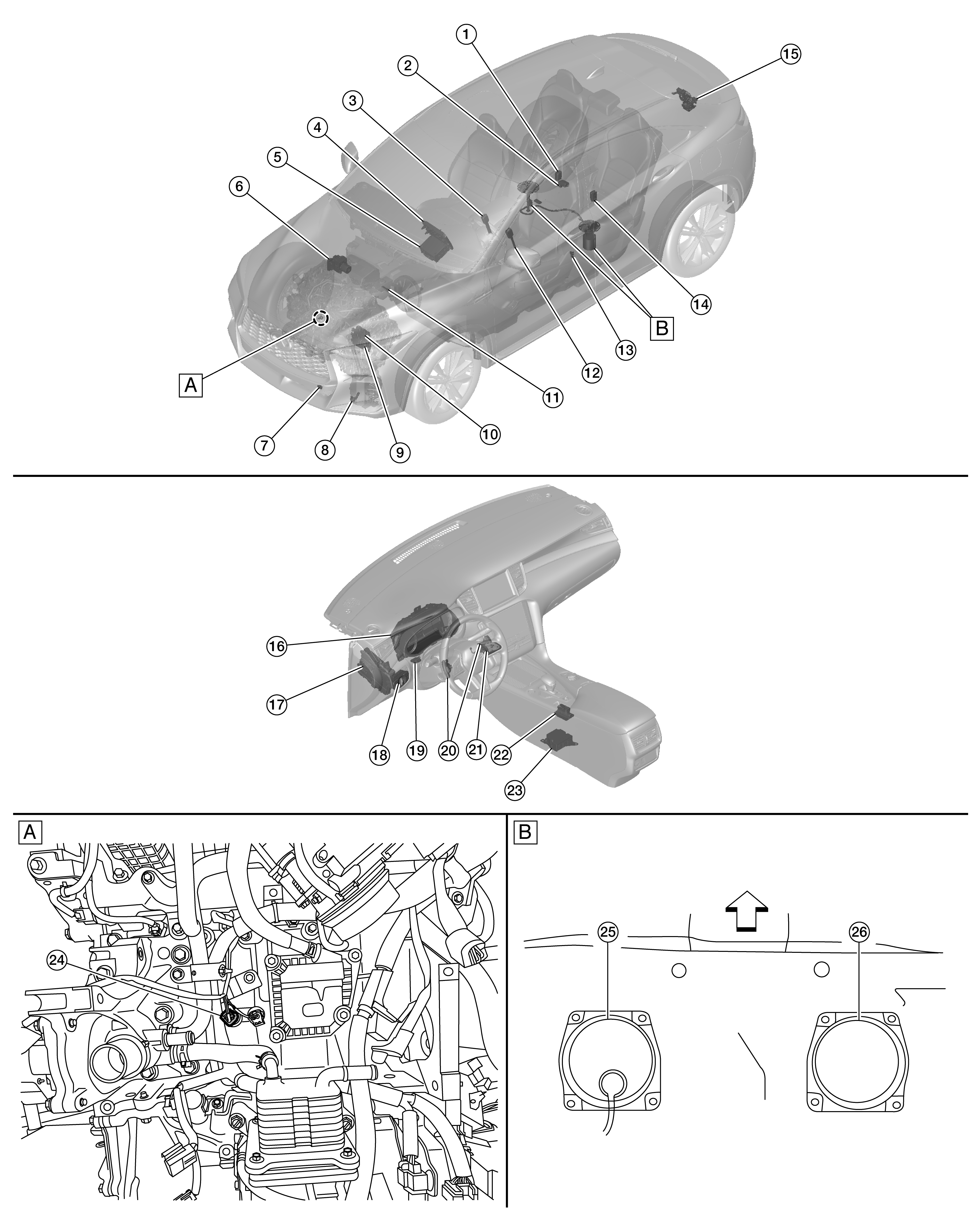

Component Location
|
|
Vehicle front |
||
|
A. |
View with engine assembly removed |
B. |
View of the fuel pump and fuel level sensor inspection hole covers with the rear seat removed |
|
No. |
Component |
Function |
|
1. |
Rear seat belt buckle switch RH |
Transmits the rear seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
|
2. |
Rear seat belt buckle switch center |
Transmits the rear seat belt buckle switch center signal to the air bag diagnosis sensor unit. |
|
3. |
Front seat belt buckle switch RH |
Transmits the front seat belt buckle switch RH signal to the air bag diagnosis sensor unit. |
|
4. |
Integral switch |
Transmits the meter setting request signal to the combination meter. |
|
5. |
AV control unit |
Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Location for detailed component location. |
|
6. |
ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Location for detailed component location. |
|
7. |
Ambient sensor |
Transmits the ambient sensor signal to the combination meter. |
|
8. |
Washer fluid level switch |
Transmits the washer fluid level switch signal to the combination meter. Refer to Component Location for detailed component location. |
|
9. |
TCM (Transmission Control Module) |
Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Location for detailed component location. |
|
10. |
ECM (Engine Control Module) |
Refer to System Description . Refer to Component Location for detailed component location. |
|
12. |
Front seat belt buckle switch LH |
Transmits a front seat belt buckle switch LH signal to the combination meter. |
|
13. |
Front door switch LH |
Door switch detects open/close status of door and transmits door switch signal to BCM. |
|
14. |
Rear seat belt buckle switch LH |
Transmits the rear seat belt buckle switch LH signal to the air bag diagnosis sensor unit. |
|
15. |
Back door lock assembly (door ajar switch) |
Transmits the back door ajar switch signal to the BCM. |
|
16. |
Combination meter |
Refer to System Description . |
|
17. |
BCM (Body Control Module) |
Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Location for detailed component location. |
|
18. |
Master light switch (Illumination control switch) |
Refer to Illumination Control Switch . |
|
19. |
Trip reset switch |
Refer to Trip Reset Switch . |
|
20. |
Paddle shifter |
Transmits the paddle shifter signal to the combination meter. |
|
21. |
Steering switches |
Refer to Steering Switches . |
|
22. |
Electric parking brake switch |
Transmits the electric parking brake switch signal to the electric parking brake control module. |
|
23. |
Air bag diagnosis sensor unit |
Transmits the following seat belt buckle switch signals to the combination meter via CAN communication:
Refer to Component Location for detailed component location. |
|
24. |
Engine oil pressure sensor |
Transmits the engine oil pressure sensor signal to the ECM. |
|
25. |
Fuel level sensor unit and fuel pump (fuel level sensor) (main) |
Transmits the fuel level sensor signal to the combination meter. |
|
26. |
Fuel level sensor unit (sub) |
Transmits the fuel level sensor signal to the combination meter. |
