Meter System: Operation

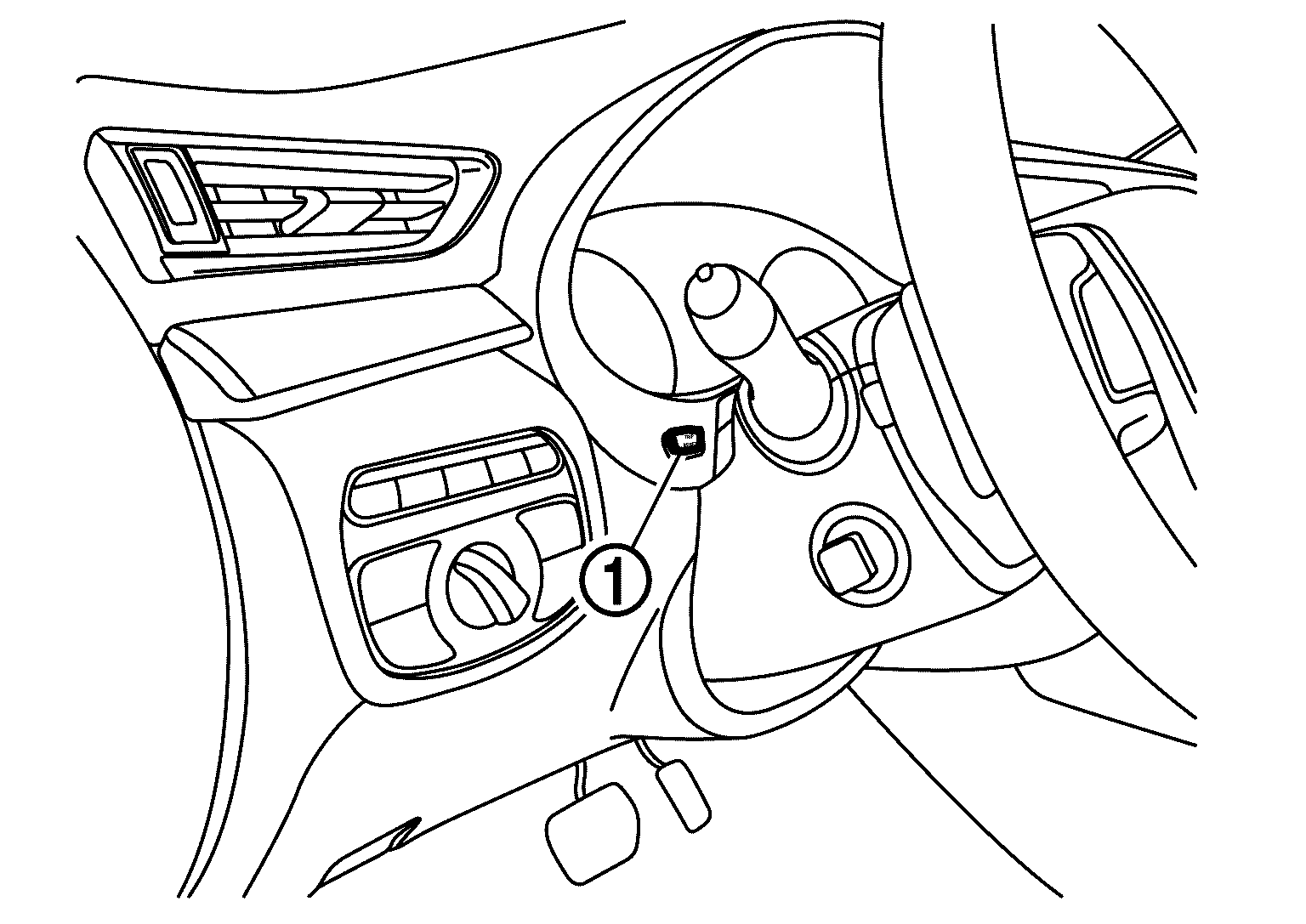

TRIP RESET SWITCH

The trip reset switch is located on the cluster lid A.
Transmits the trip reset switch signal to the combination meter.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Operation	Description
	Trip reset switch	Press	The trip meter can be switched between A and B. Trip meter A/B can be reset by pressing and holding the trip reset switch. A trip computer value displayed on the information display can be reset by pressing and holding the trip reset switch for 1 second or more. All trip computer values can be reset by pressing and holding the trip reset switch for 3 seconds or more.

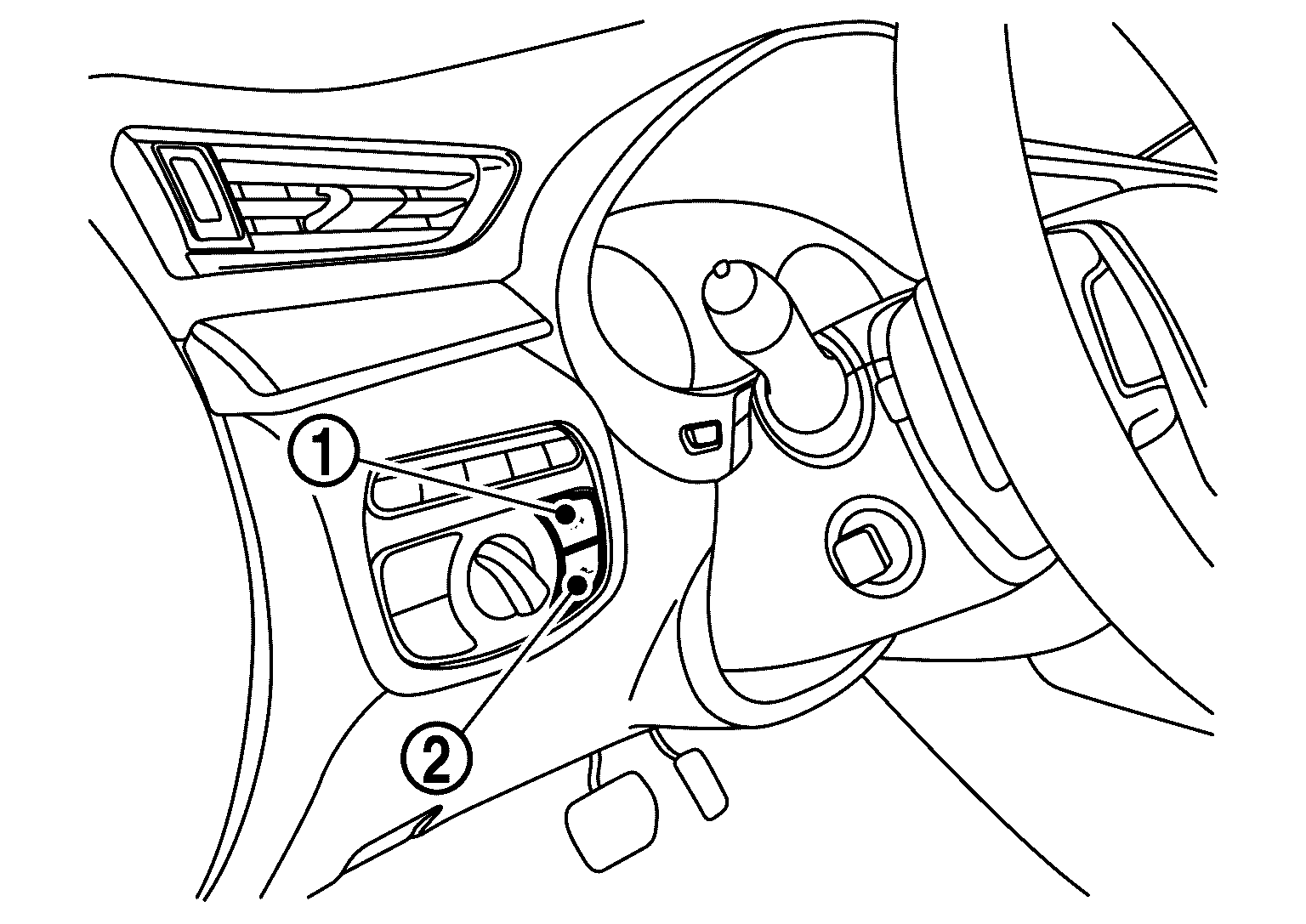

ILLUMINATION CONTROL SWITCH

The illumination control switch is located on the rotary light switch.

Transmits the following signals to the combination meter.

Illumination control switch signal (+)

Illumination control switch signal (-)

GNSILL0183533

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Operation	Description
	Illumination control switch (+)	Press	The brightness of combination meter and information display can be adjusted.
	Illumination control switch (-)	Press
