Component Inspection
- CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR) (MAIN)
- Remove the fuel level sensor unit and fuel pump (fuel level sensor) (main). Refer to Removal and Installation .

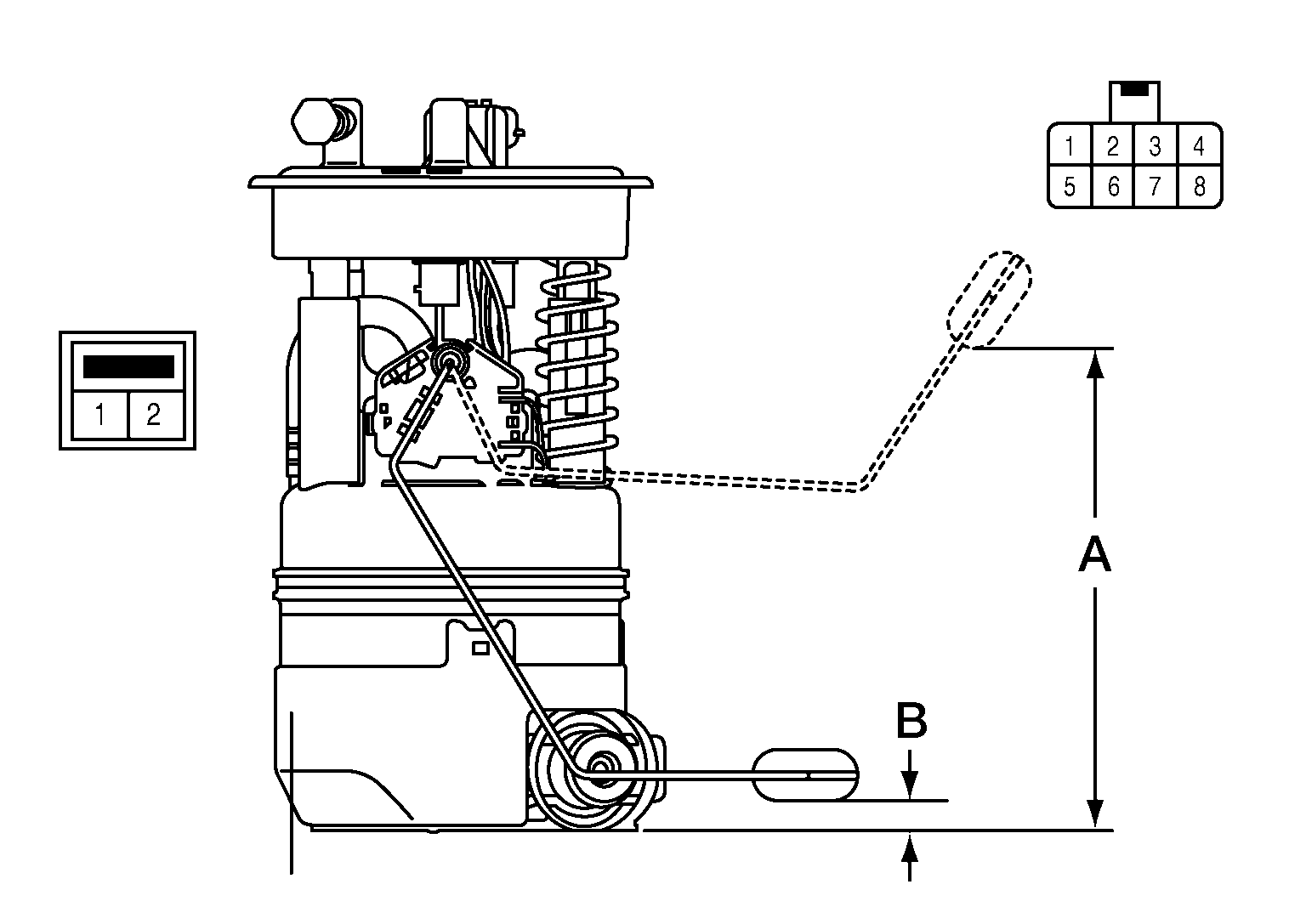

- Check the resistance between fuel level sensor unit and fuel pump (fuel level sensor) (main).
Fuel level sensor unit and fuel pump (fuel level sensor) (main)
Condition
Resistance (Ohm)
(Approx.)
Height
[mm (in)]
Terminals
3
1
Full * (A)
25.5
179.2(7.05)
Empty * (B)
125.5
10.2 (0.4)
2
2
--
0
--
*: When float rod is in contact with stopper.
Is the inspection result normal?
YES
GO TO 2.
NO
Replace fuel level sensor unit and fuel pump (fuel level sensor) (main). Refer to Removal and Installation .
- CHECK FUEL LEVEL SENSOR UNIT (SUB)
- Remove the fuel level sensor unit (sub). Refer to Removal and Installation .
- Check the resistance between fuel level sensor unit (sub).
Fuel level sensor unit (sub)
Condition
Resistance (Ohm)
(Approx.)
Height
[mm (in)]
Terminals
2
1
Full * (A)
65.5
179.9 (7.8)
Empty * (B)
157.5
10.1 (0.3)
*: When float rod is in contact with stopper.
Is the inspection result normal?
YES
Inspection End.
NO
Replace fuel level sensor unit (sub). Refer to Removal and Installation .
