Disassembly and Assembly: Disassembly

  1. Using a suitable tool, release clips and remove center console rear finisher.

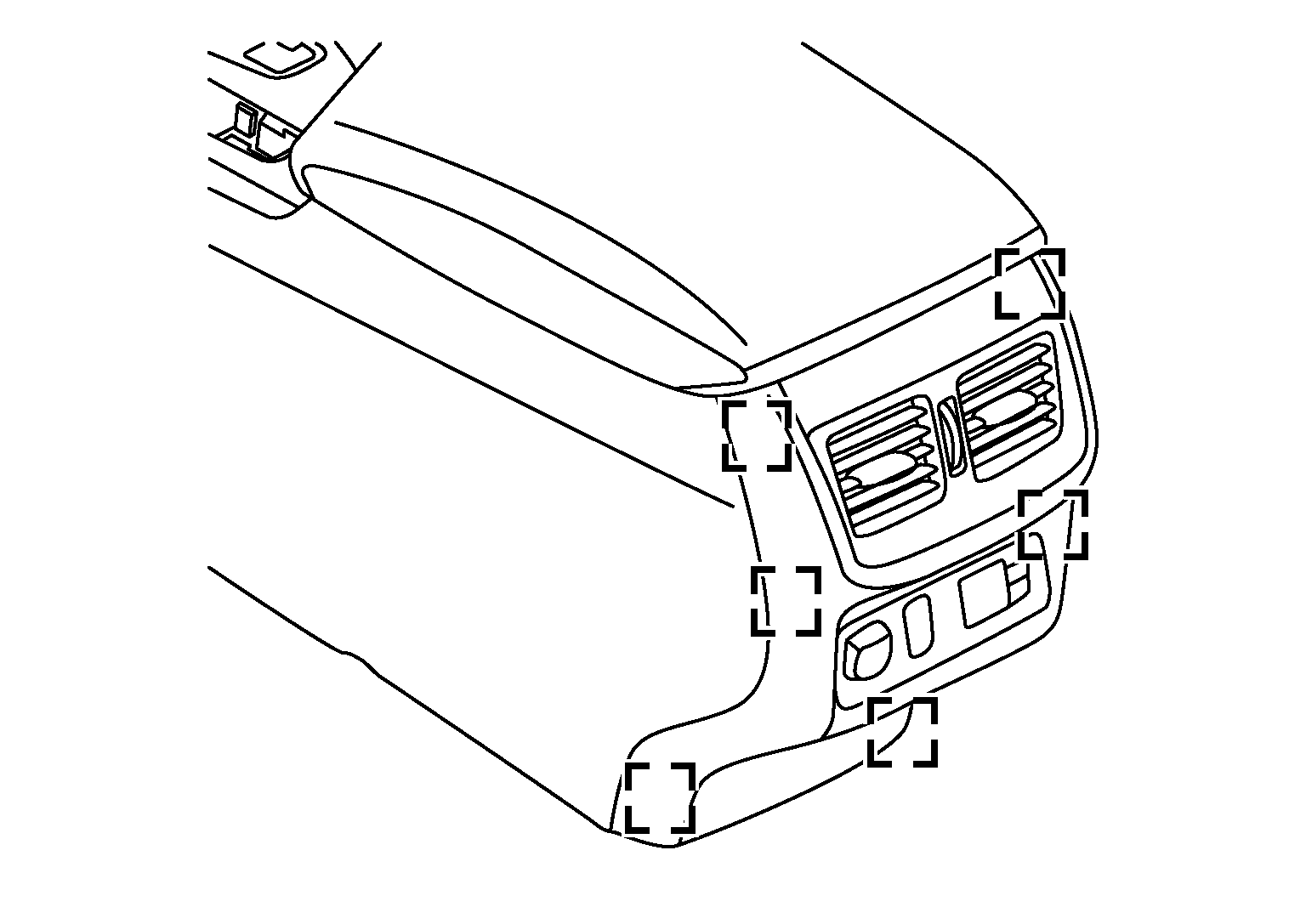

    GNSAWJIA0156Z-156Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
  2. Disconnect harness connector from console power socket.
  3. Disconnect harness connector from rear USB charge port.
  4. Disconnect harness connector from rear air control (with climate controlled seats).
  5. Remove screws (A) and remove rear air control unit (1).

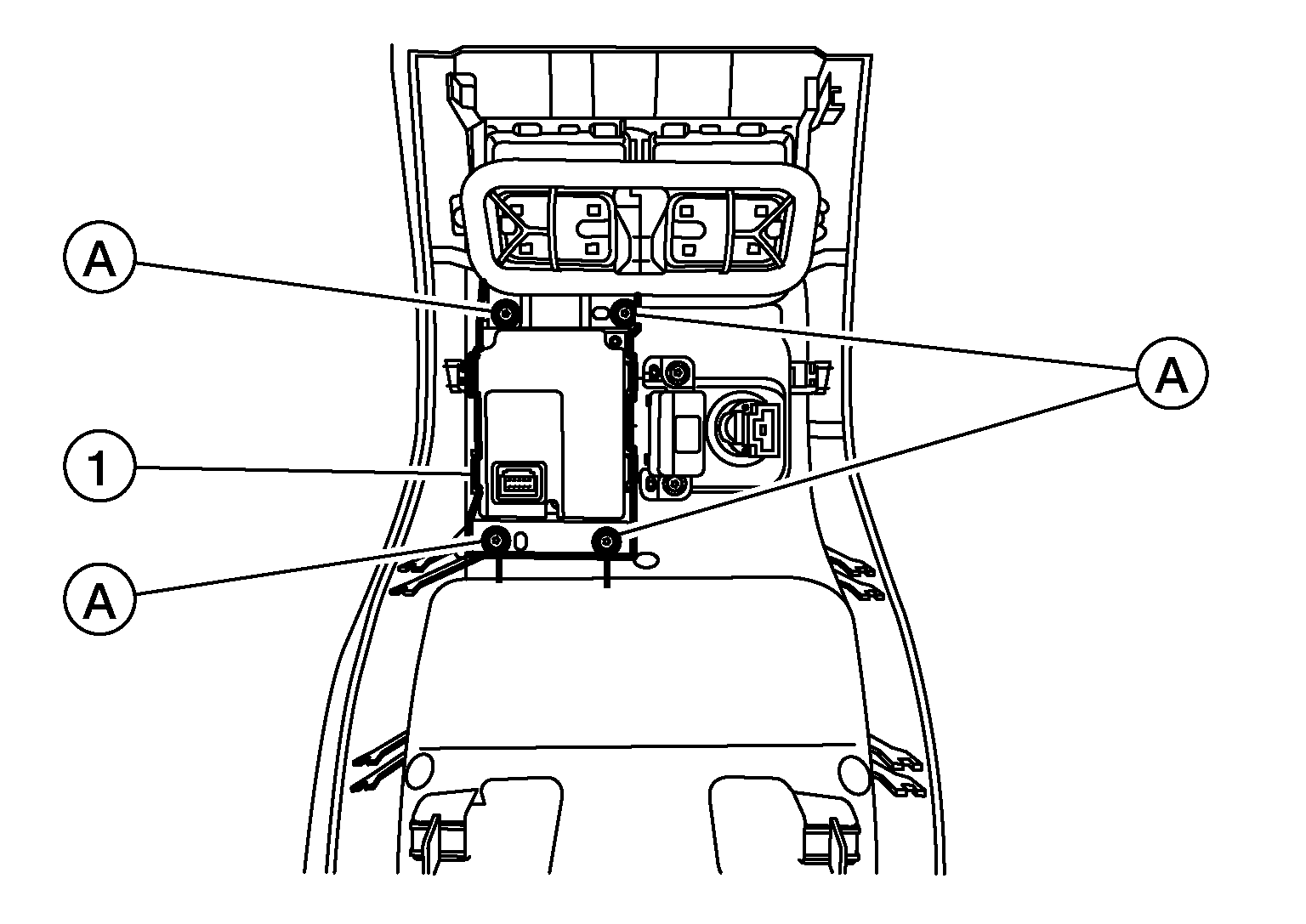

    GNSAWJIA0143Z-143Courtesy of NISSAN NORTH AMERICA, INC.
  6. Release pawls using a suitable tool and remove console power socket (1).

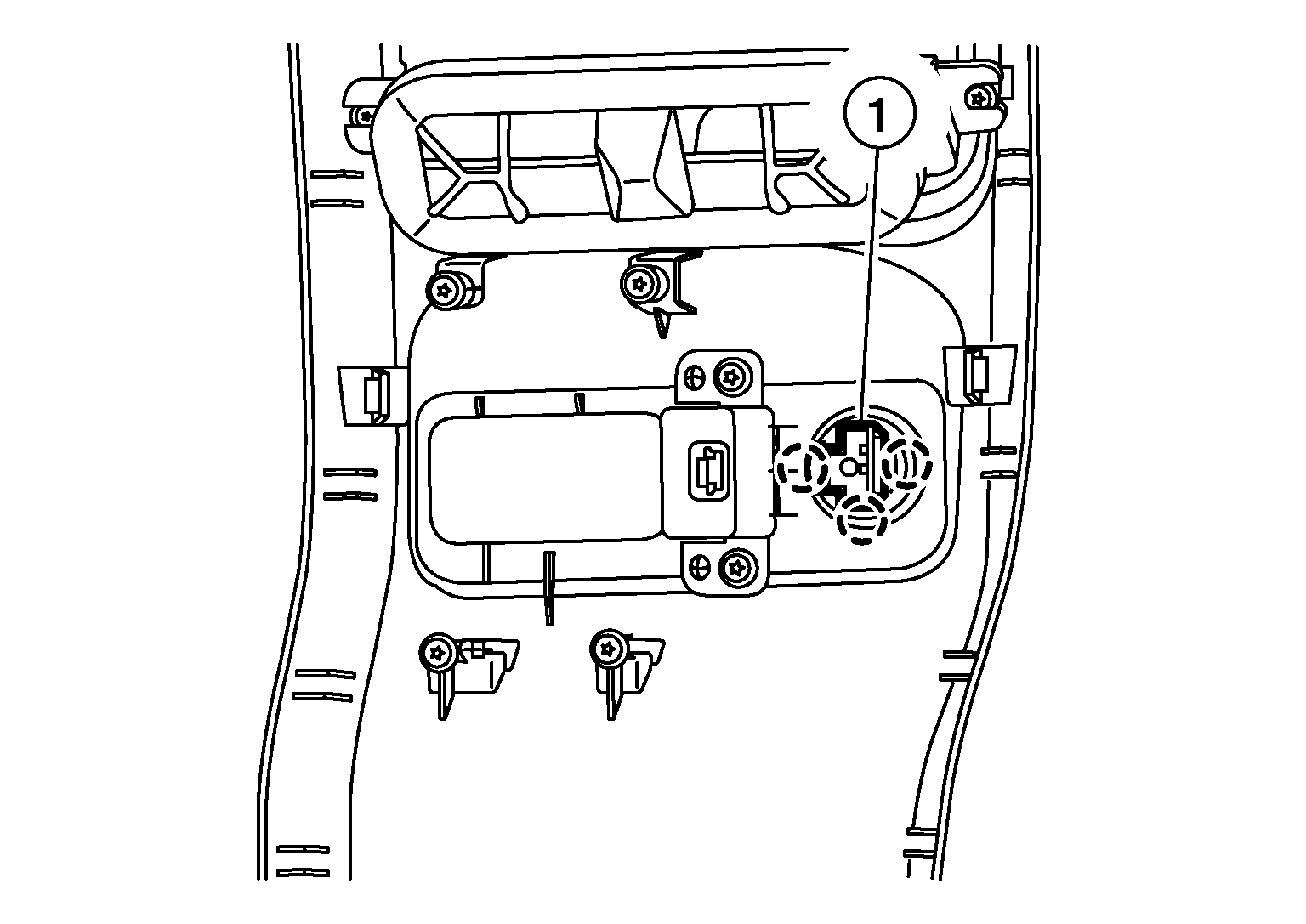

    GNSALMIA0069Z-069Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
  7. Remove screws (A) and rear USB charge port (1) from rear console finisher.

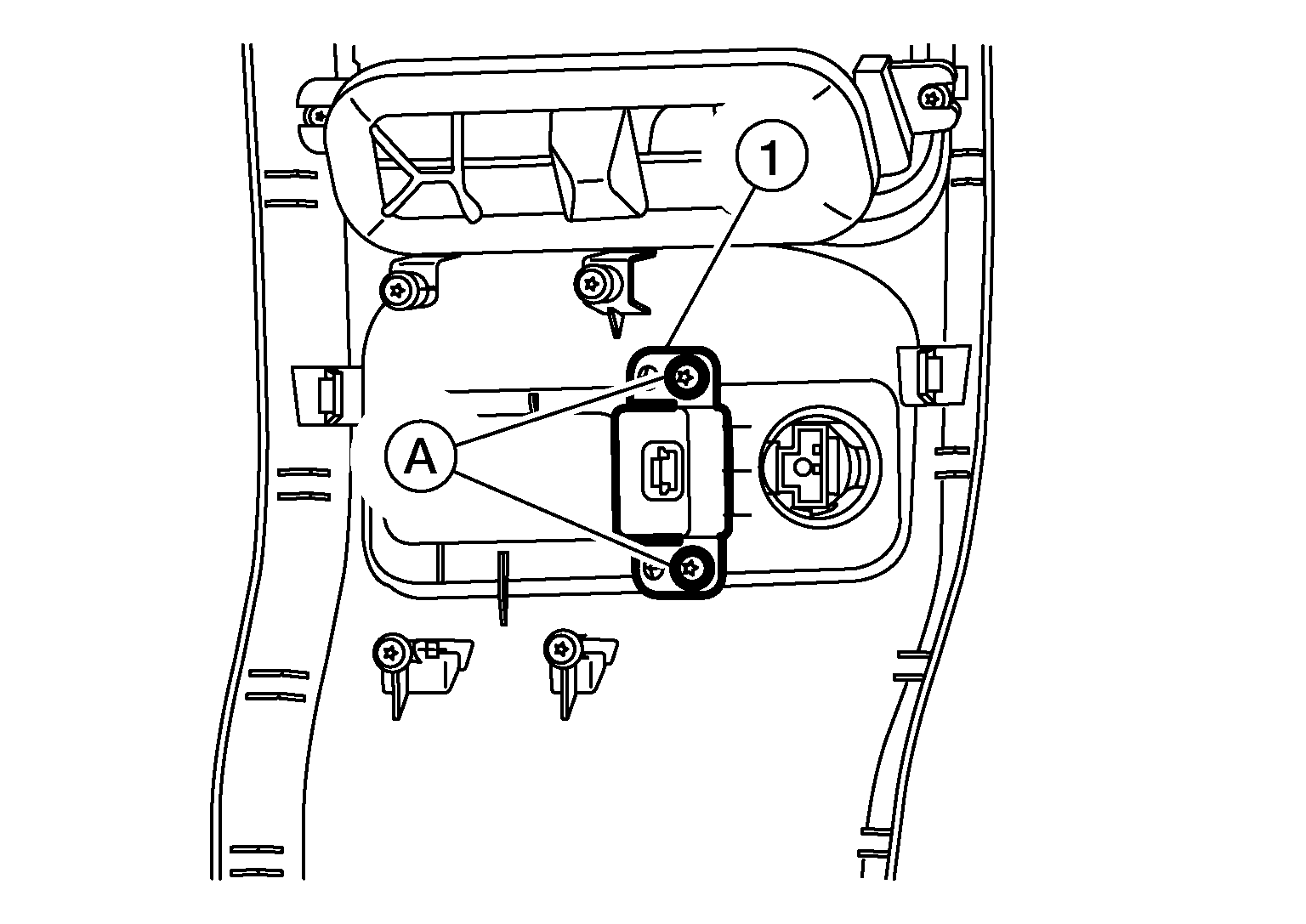

    GNSALMIA0070Z-070Courtesy of NISSAN NORTH AMERICA, INC.
