Removal and Installation: Removal

  1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to Battery Disconnect .
  2. Using a suitable tool release clips and remove instrument side finishers [1 (LH/RH)].

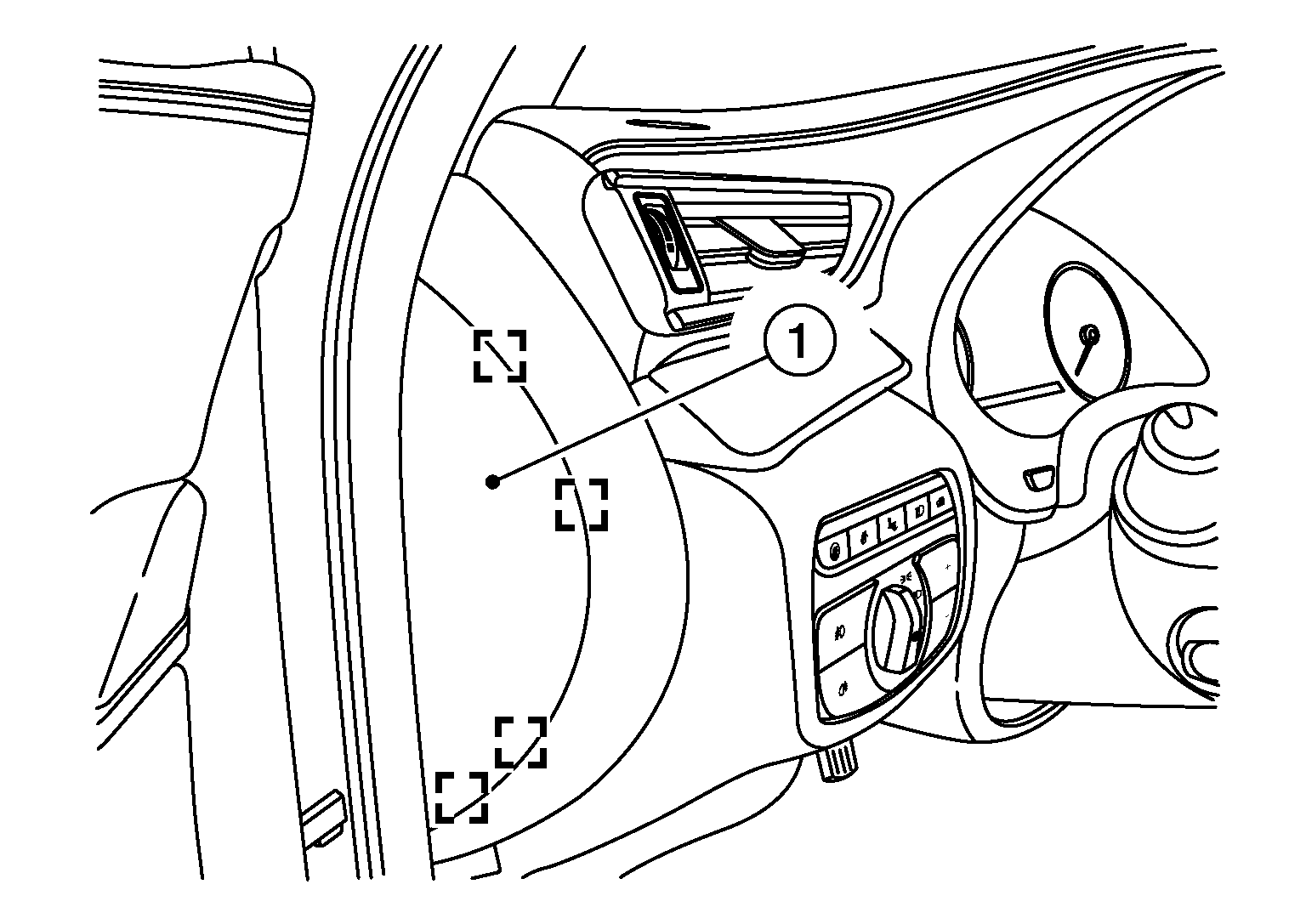

    GNSAWJIA0145Z-145Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: LH side shown; RH side similar

    SYMBOL

    : Metal clip
  3. Remove front pillar finishers (LH/RH). Refer to Removal and Installation .
  4. Remove combination switch. Refer to Removal and Installation .
  5. Remove instrument finisher A. Refer to Removal and Installation .
  6. Remove combination meter. Refer to Removal and Installation .
  7. Remove left knee air bag module. Refer Removal and Installation .
  8. Remove instrument finisher B.
  9. Remove cluster lid D.
  10. Remove display control unit.
  11. Disconnect harness connector from display control unit.
  12. Remove AV control unit. Refer to Removal and Installation .
  13. Remove right knee air bag module. Refer to Removal and Installation .
  14. Remove center console assembly. Refer to Removal and Installation .
  15. Remove defroster grille.
  16. Remove instrument panel bolt (A) from the instrument panel.
    NOTE: LH side shown, RH side similar.

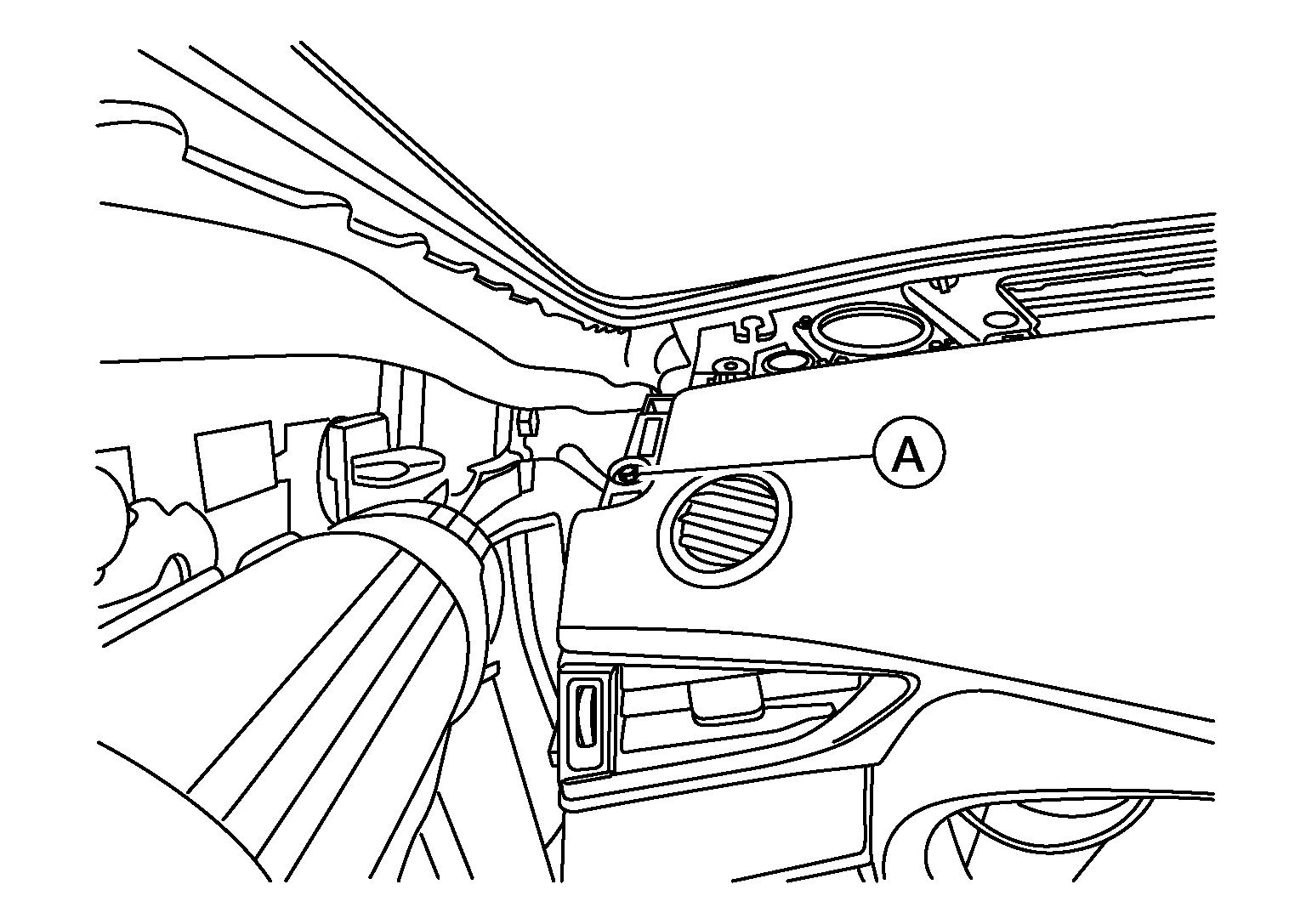

    GNSAWJIA0147Z-147Courtesy of NISSAN NORTH AMERICA, INC.
  17. Remove instrument panel assembly bolts.
  18. Disconnect the harness connectors from the instrument panel assembly.
  19. Remove the instrument panel assembly.
