Removal and Installation: Removal

  1. Using a suitable tool, release clips and remove instrument side finisher [LH (1)].
    GNSAWJIA0145Z-145Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal Clip
  2. Remove instrument lower panel LH screw (A).
    GNSALJIA0124Z-124Courtesy of NISSAN NORTH AMERICA, INC.

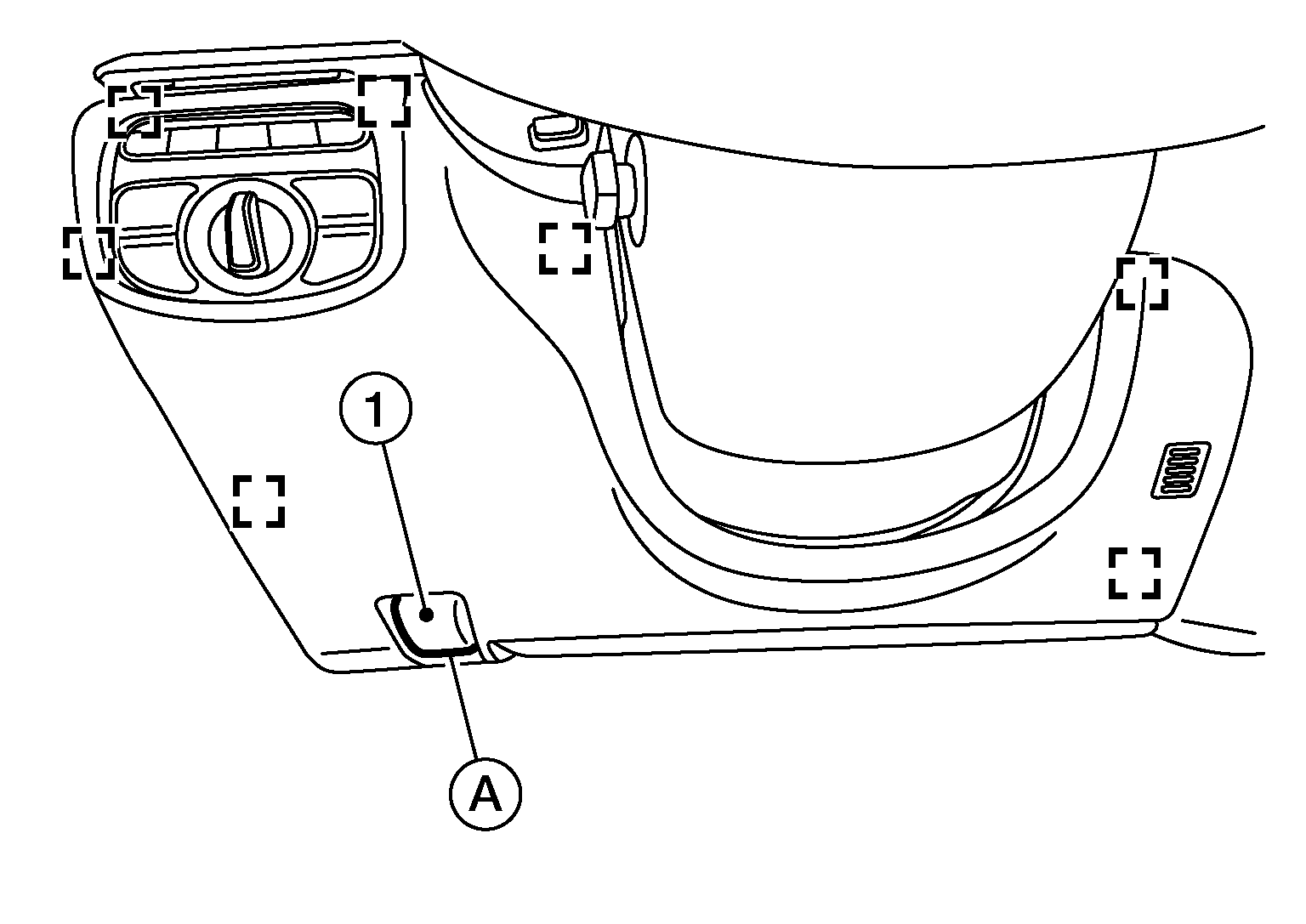

  3. Disconnect hood lock release cable from hood lock release handle (1) and remove screw (A).
    GNSAWJIA0153Z-153Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
  4. Using a suitable tool, release clips and remove instrument lower panel LH.
  5. Disconnect aspirator hose from in car sensor.
  6. Disconnect harness connectors and remove instrument lower panel LH.
