Removal and Installation: Removal

  1. Remove instrument side finisher (RH). Refer to Removal and Installation .

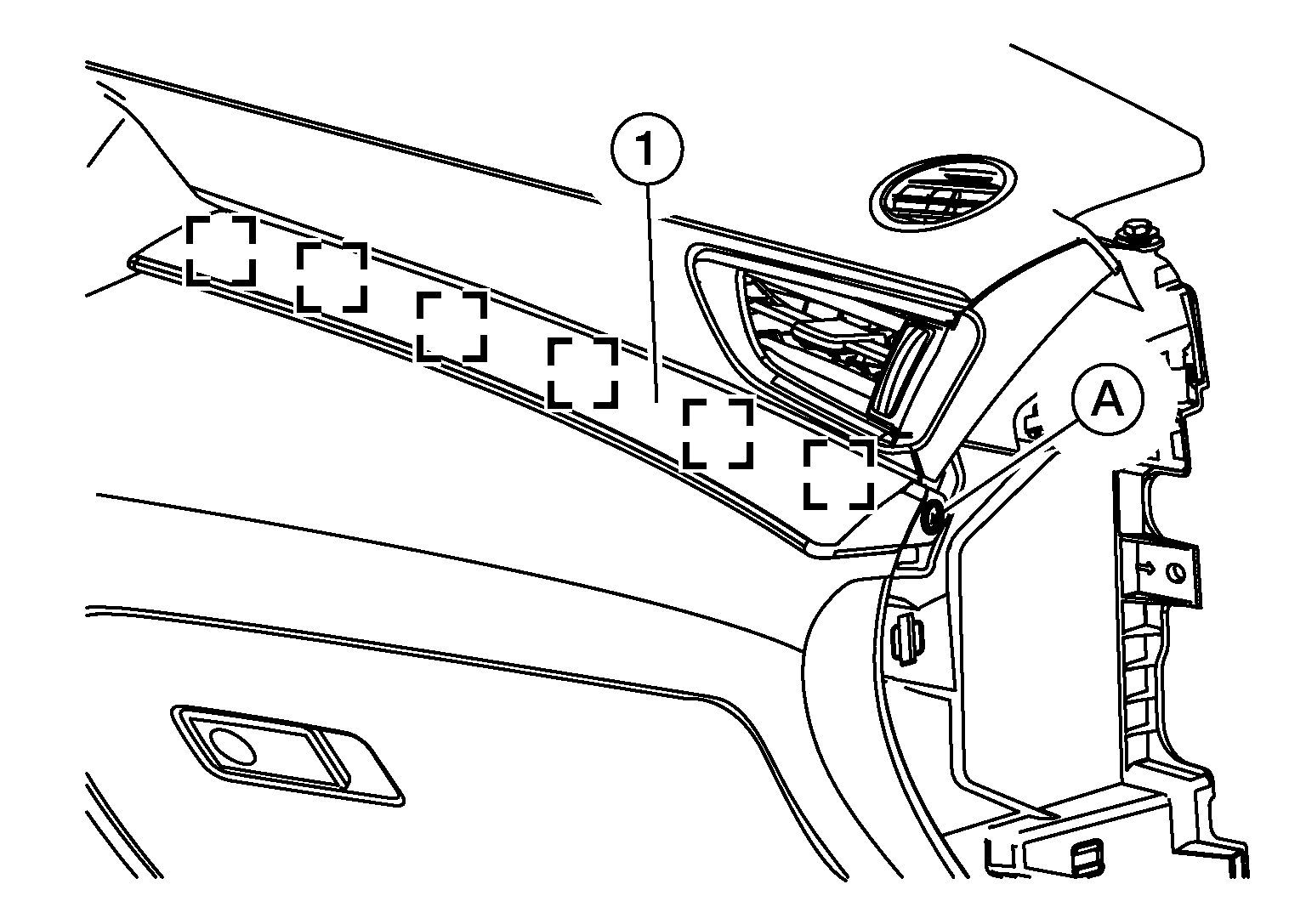

  2. Remove screw (A) from instrument finisher B (1).
    GNSALJIA0205Z-205Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
  3. Using a suitable tool release clips and remove instrument finisher B.
  4. Disconnect harness connector from instrument panel mood lamp [RH (with extended interior ambient lighting)].
