Removal and Installation: Removal

  1. Remove instrument panel lower (LH). Refer to Removal and Installation .

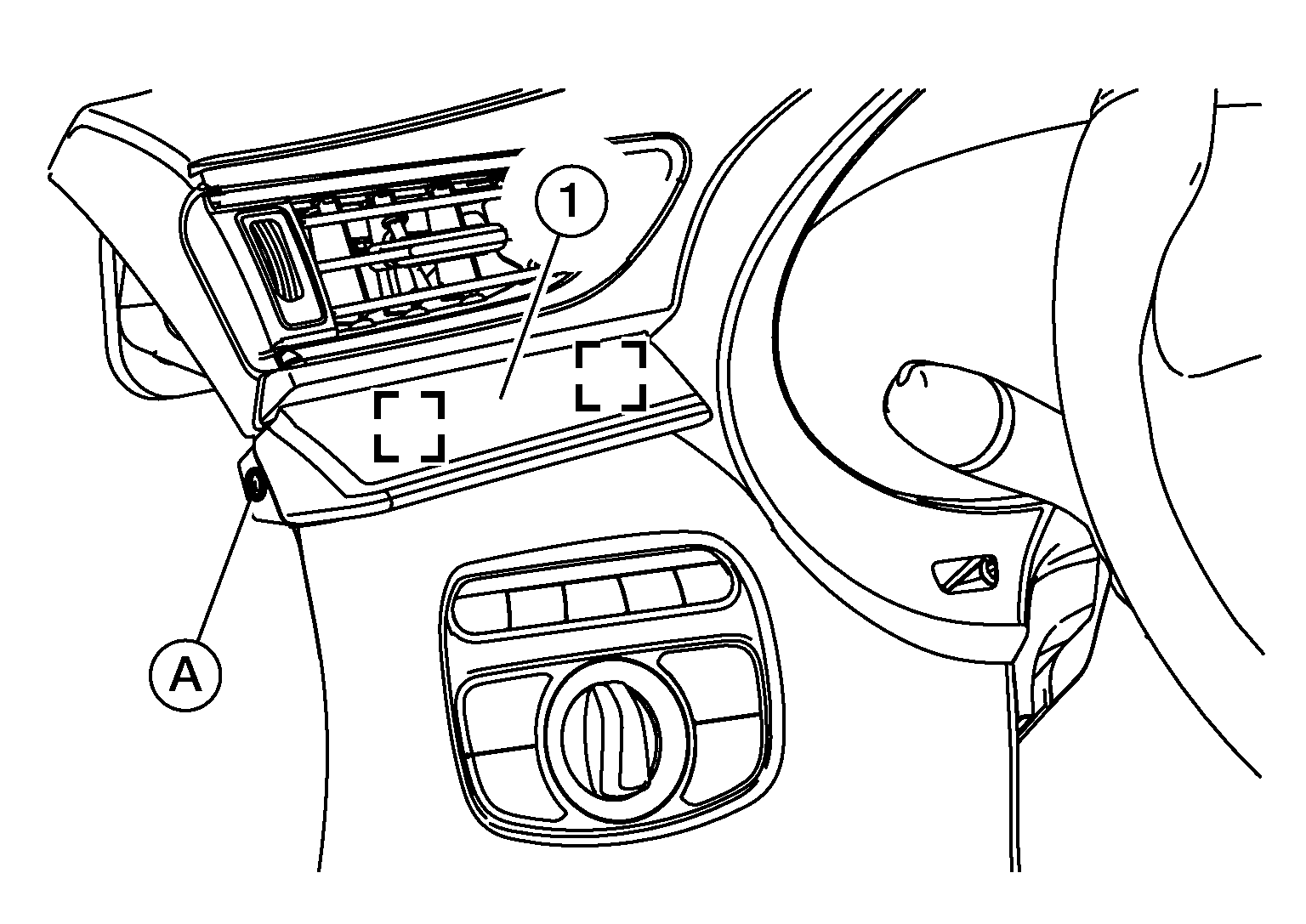

  2. Remove screw (A) from instrument finisher A (1).
    GNSALJIA0204Z-204Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
  3. Using a suitable tool release clips and remove instrument finisher A.
  4. Disconnect harness connector from instrument panel mood lamp [LH (with extended interior ambient lighting)].
