Removal and Installation: Removal

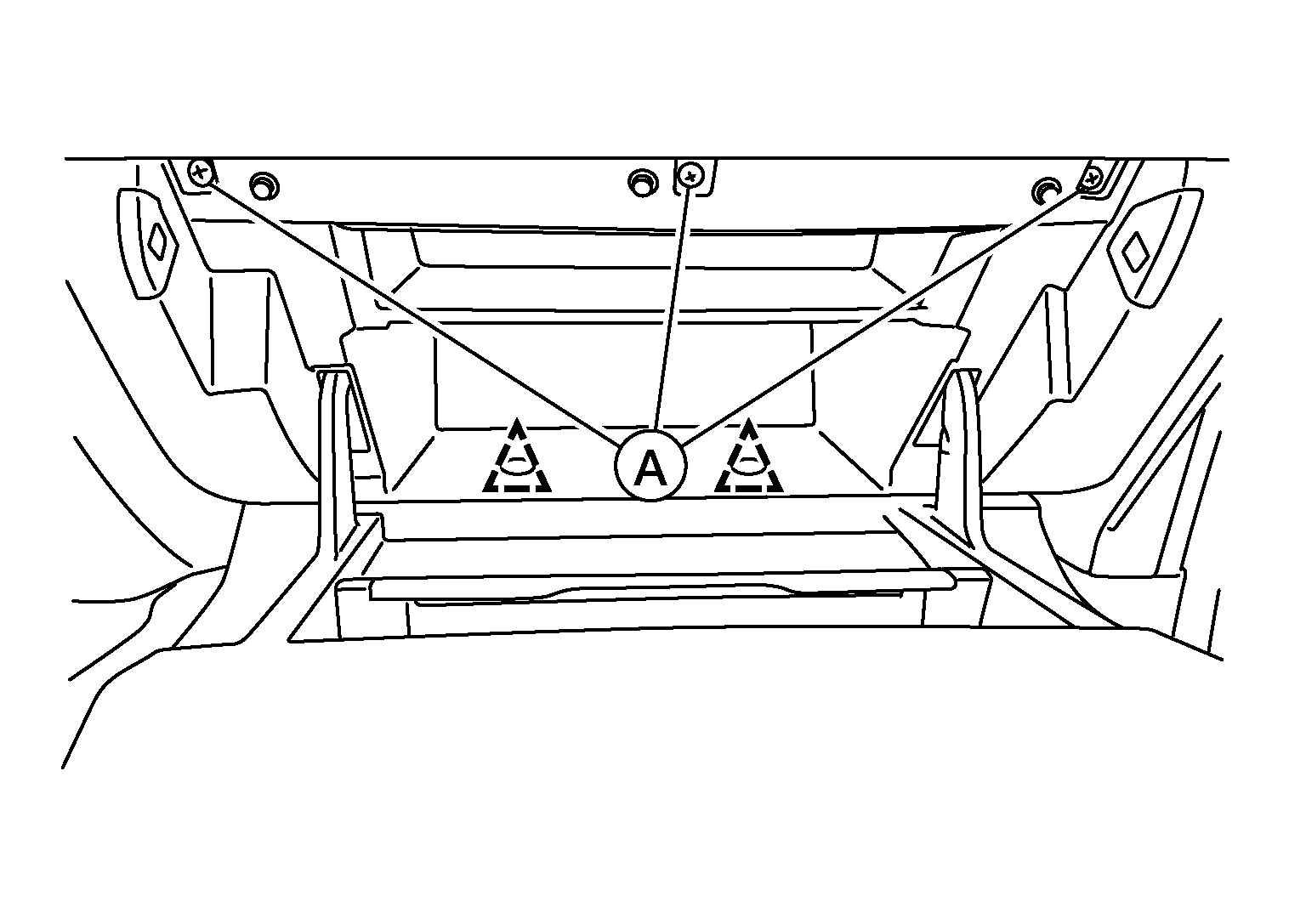

  1. Open glove box lid and remove the glove box upper screws (A) and clips.
    GNSAWJIA0158Z-158Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Clip
  2. Disconnect the harness connectors and remove glove box assembly.
