Removal and Installation: Removal

  1. Remove instrument finisher B. Refer to Removal and Installation .

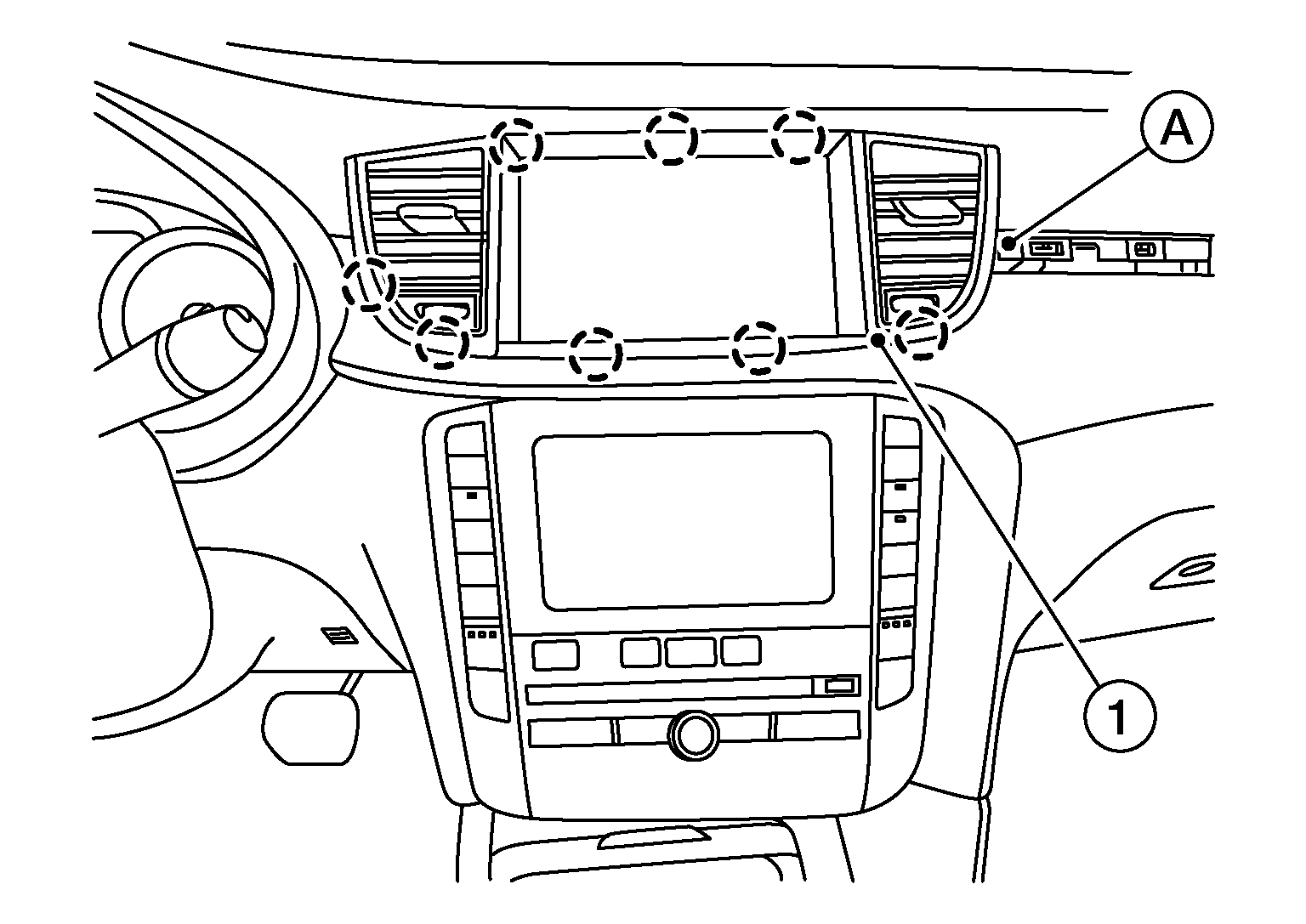

  2. Remove screw (A) from cluster lid D (1).
    GNSAWJIA0152Z-152Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
  3. Using a suitable tool, release pawls and remove cluster lid D.
