Removal and Installation: Removal

  1. Remove integral switch. Refer to Removal and Installation (INFINITI INTOUCH), or to Removal and Installation (AROUND VIEW MONITOR SYSTEM), or to Removal and Installation (REAR VIEW MONITOR SYSTEM).

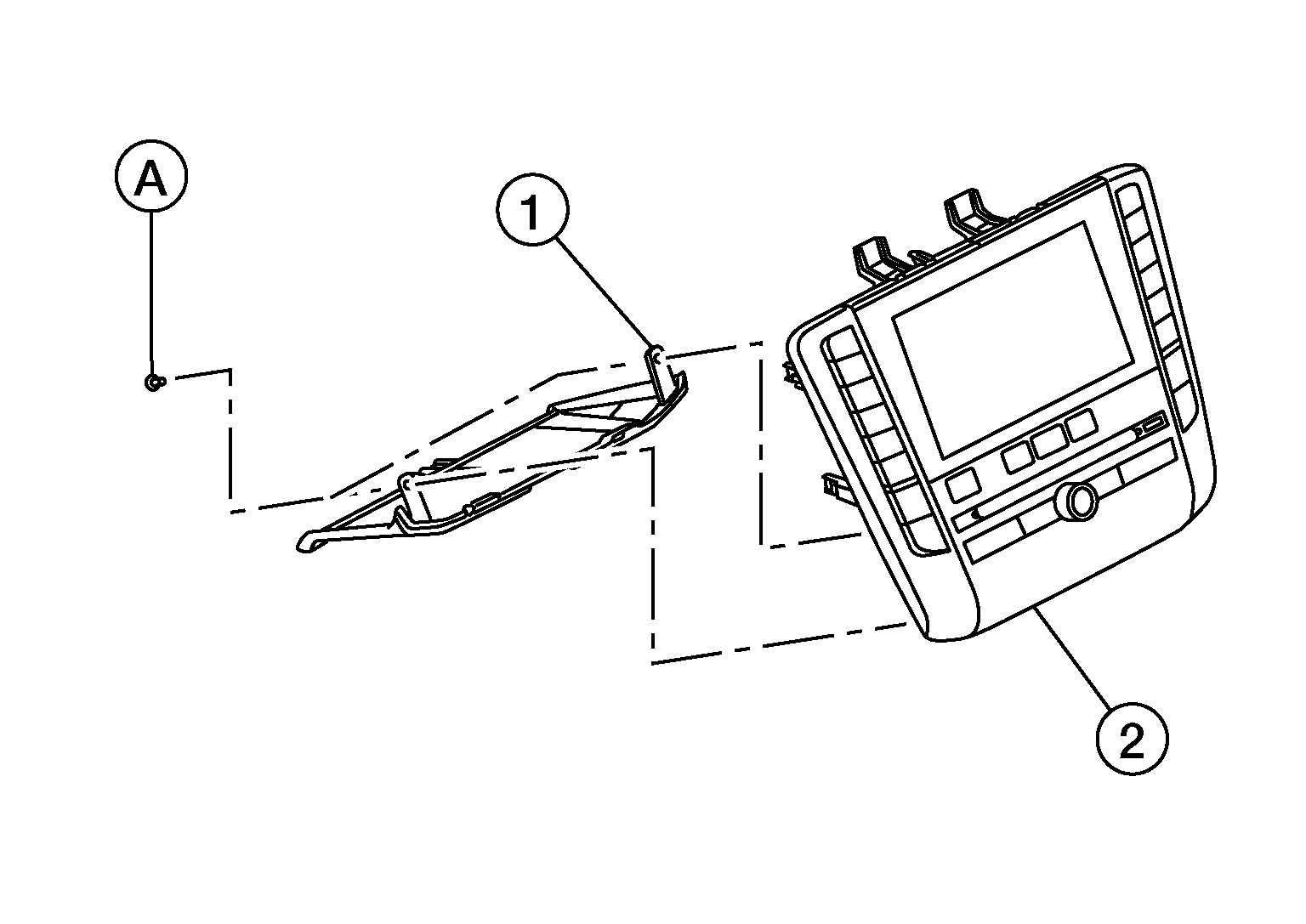

  2. Remove screws (A) and remove cluster lid C (1) from integral switch (2).
    GNSALJIA0160Z-160Courtesy of NISSAN NORTH AMERICA, INC.
