Removal and Installation: Removal

  1. Remove instrument lower panel (LH). Refer to Removal and Installation .
  2. Remove instrument finisher A. Refer to Exploded View .
  3. Using a suitable tool release pawls and separate gap hider from upper steering column cover.

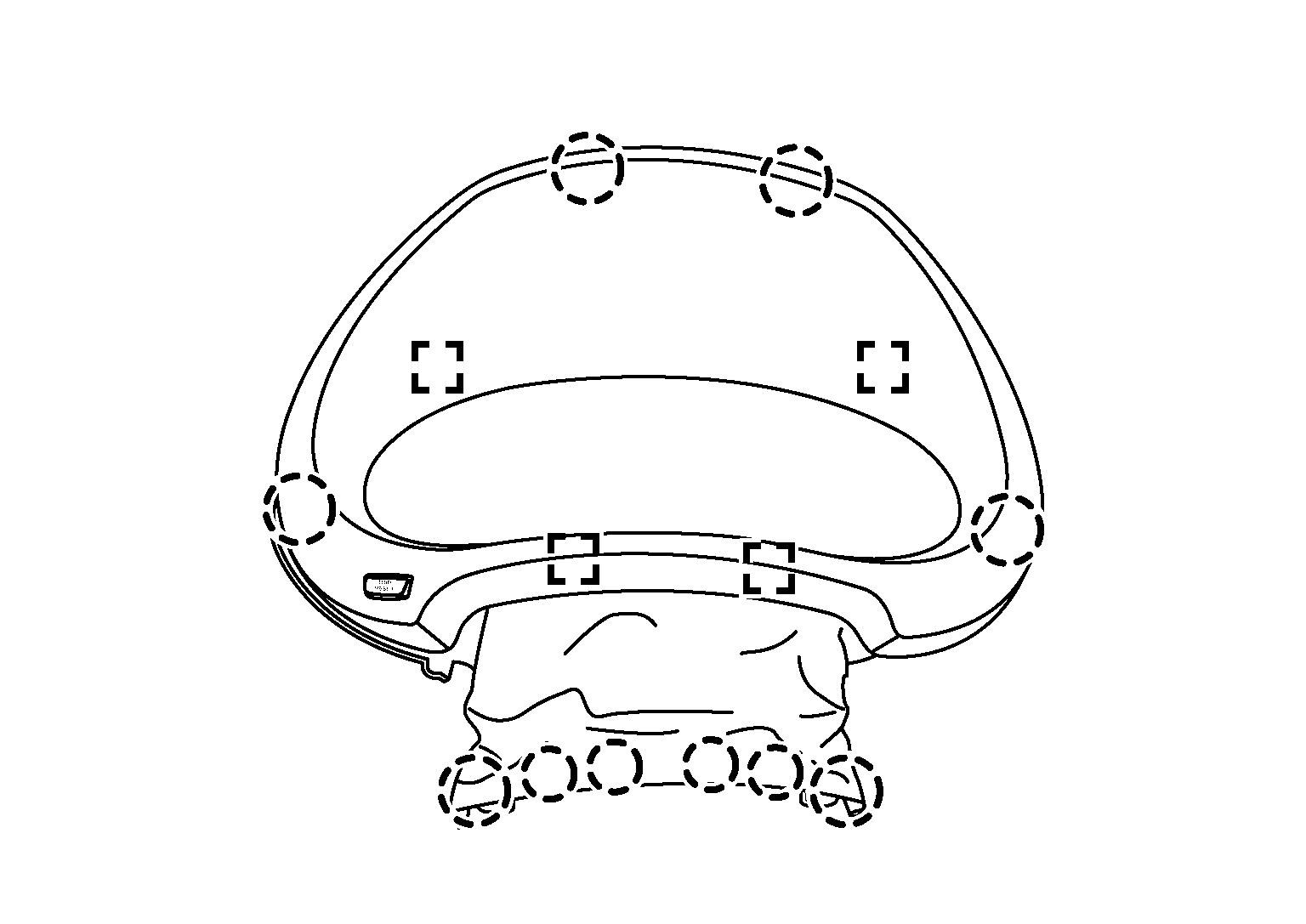

  4. Using a suitable tool, release clips and pawls and remove cluster lid A.
    GNSALJIA0127Z-127Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip

    SYMBOL

    : Pawl
  5. Disconnect harness connector from trip reset switch.
