Removal and Installation: Removal

CAUTION: Be careful not to scratch center console finishers and other parts.
  1. Using a suitable tool release clips and remove rear center console finisher.
  2. Disconnect harness connector from console power socket.
  3. Disconnect harness connector from rear USB charge port.
  4. Disconnect harness connector from rear air control [with climate controlled seats (if equipped)].
  5. Using a suitable tool release clips and remove center console side finisher (LH/RH).

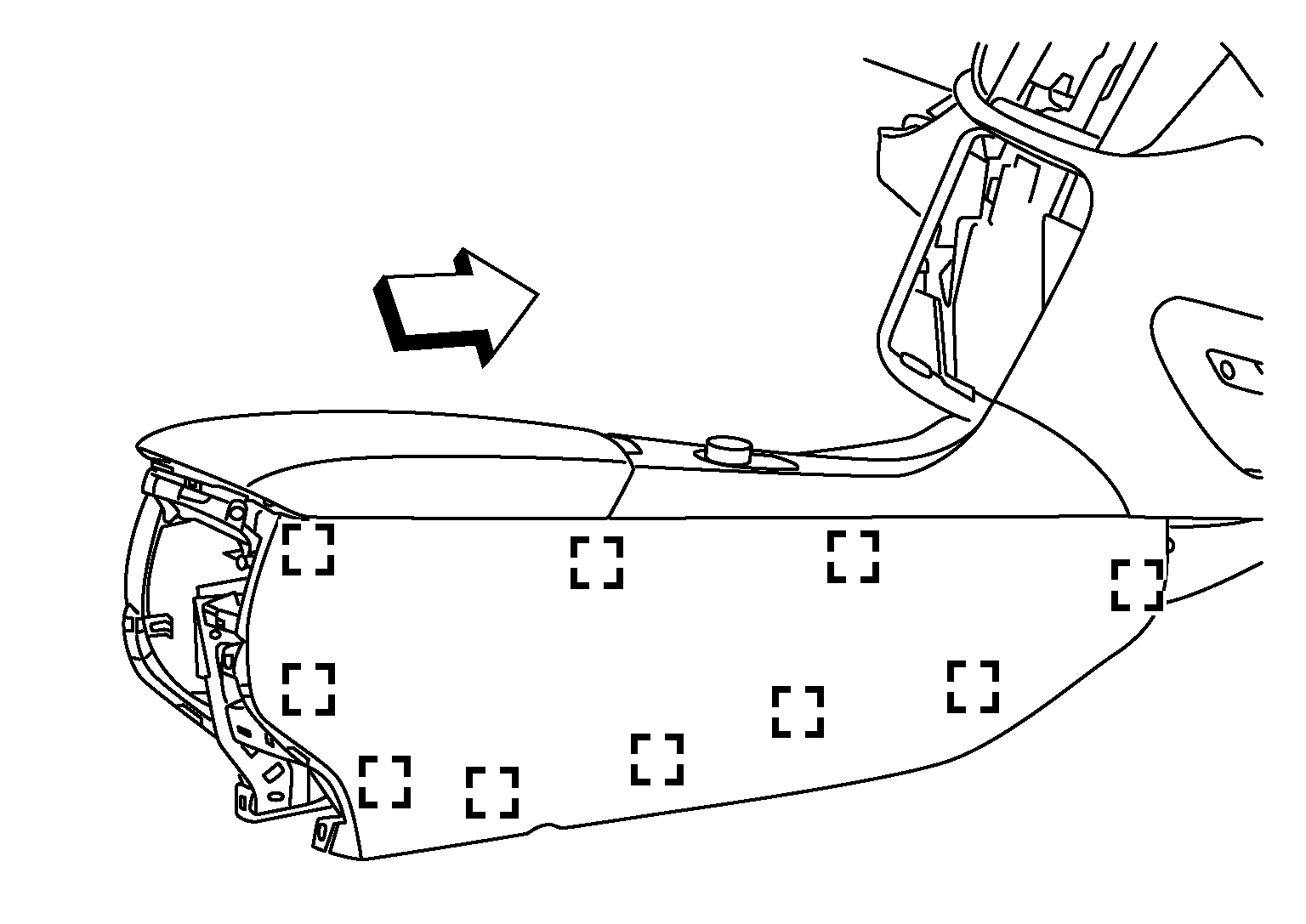

    GNSAWJIA0150Z-150Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
  6. Using a suitable tool release clips and remove shift selector finisher.
  7. Disconnect the harness connector from push button ignition switch.
  8. Disconnect the harness connector from electric parking brake switch.
  9. Disconnect the harness connector from drive mode switch.
  10. Using a suitable tool release clips and remove center console finisher (upper RH).
  11. Remove screws (A) from center console cup holder.

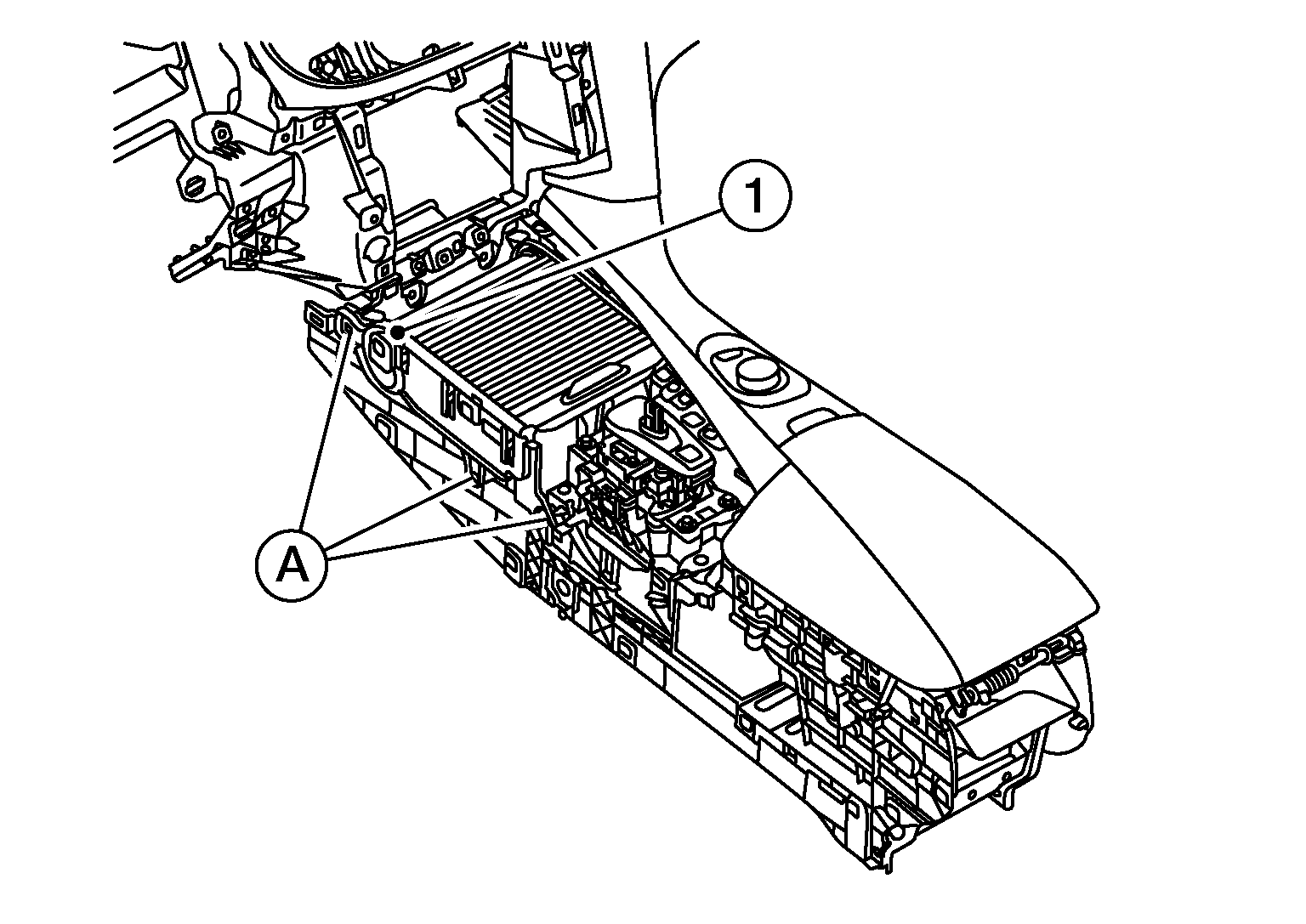

    GNSAWJIA0151Z-151Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  12. Remove center console cup holder (1) from center console assembly.
  13. Disconnect harness connector from USB interface.
  14. Disconnect harness connector from front power socket.
  15. Remove electric shift selector. Refer to Removal and Installation .
  16. Remove center console assembly screws.
  17. Disconnect the harness connectors from the center console assembly and remove.
