Component Description
- Curtain air bag module is built into roof side portion LH and RH.

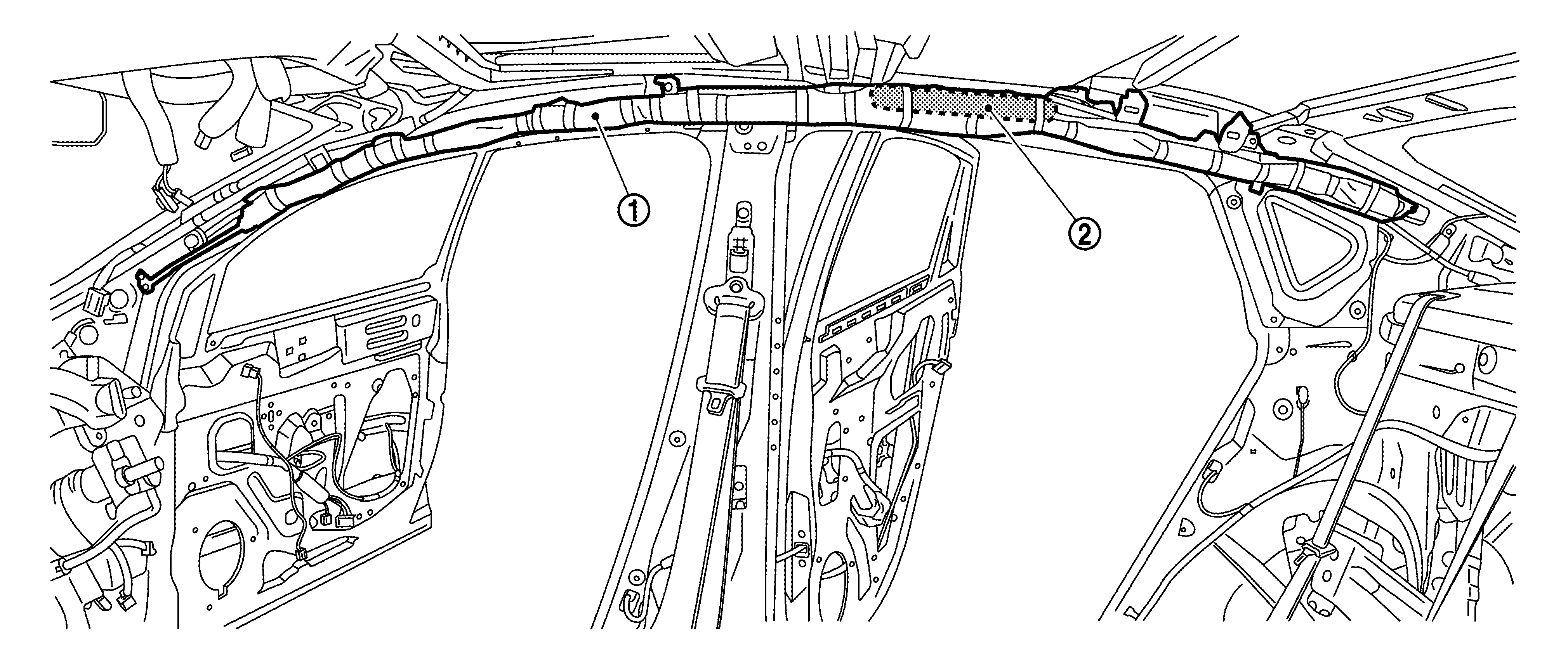

- Curtain air bag module mainly consists of air bag
and inflator
which inflates air bag.

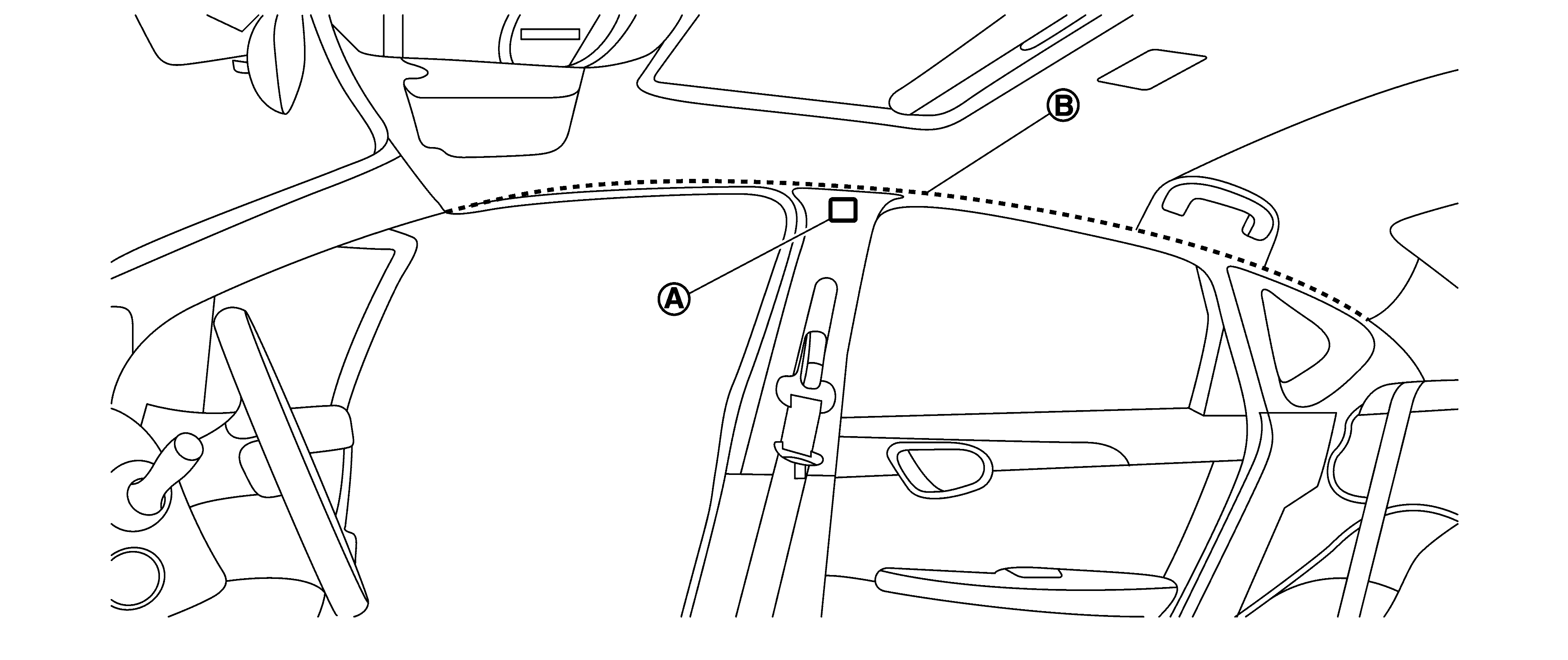

- Identification mark
is installed to center pillar upper garnish upper indicating that SRS curtain air bag is equipped.
- Curtain air bag inflates through a space
between headliner and roof side portion.
