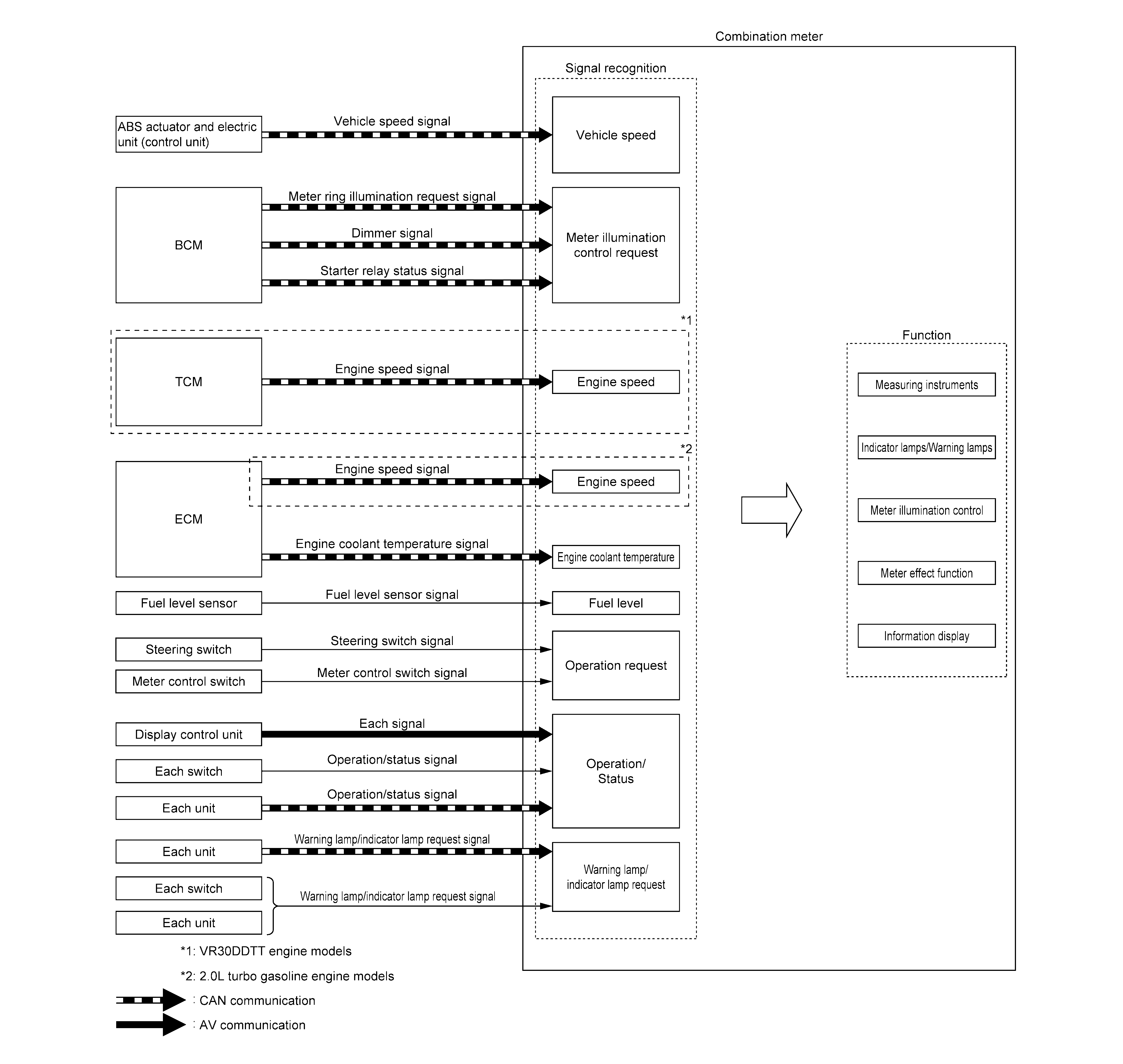

System Diagram
Combination Meter Input Signal (CAN Communication Signal)
|
Transmit unit |
Signal name |
|
ABS actuator and electric unit (control unit) |
Vehicle speed signal |
|
ABS warning lamp signal |
|
|
VDC warning lamp signal |
|
|
VDC OFF indicator lamp signal |
|
|
Brake warning lamp signal |
|
|
BCM |
Dimmer signal |
|
Position light request signal |
|
|
Door switch signal |
|
|
Front fog light request signal |
|
|
High beam request signal |
|
|
Meter display signal |
|
|
Sleep wake up signal |
|
|
Buzzer output signal |
|
|
Tire pressure data signal |
|
|
Trunk switch signal |
|
|
Key ID signal |
|
|
Turn indicator signal |
|
|
TPMS malfunction warning lamp signal |
|
|
Low tire pressure warning lamp signal |
|
|
High beam assist indicator lamp signal |
|
|
Starter relay status signal |
|
|
Meter ring illumination request signal |
|
|
Shipping mode status signal |
|
|
Rear window defogger control signal |
|
|
TCM |
Shift position signal |
|
Engine speed signal |
|
|
Manual mode shift refusal signal |
|
|
ECM |
ASCD status signal |
|
Engine coolant temperature signal |
|
|
Fuel consumption monitor signal |
|
|
Malfunctioning indicator lamp signal |
|
|
Engine status signal |
|
|
ECO drive indicator control signal |
|
|
Fuel filler cap warning display signal |
|
|
Remaining distance signal |
|
|
Shift position signal |
|
|
Oil change reminder signal |
|
|
Remaining distance reset request signal |
|
|
Steering force control module |
Power steering warning lamp signal |
|
Power steering control module |
Power steering warning lamp signal |
|
AFS control unit |
AFS warning signal |
|
Chassis control module |
Active Lane Control display signal |
|
Active Trace Control display signal |
|
|
Chassis control malfunction signal |
|
|
Interrupt display signal |
|
|
Key link signal |
|
|
Log-in permit signal |
|
|
Tire display signal |
|
|
Turn display signal |
|
|
Vehicle display signal |
|
|
Master warning signal |
|
|
Display control unit |
User information signal |
|
AWD control unit |
AWD warning display signal |
|
ADAS control unit |
FEB warning lamp signal |
|
Meter display signal |
|
|
ASCD status signal |
|
|
System display signal |
|
|
ADAS control unit 2 |
Meter display signal |
|
A/C auto amp. |
Ambient sensor signal |
