Meter Control Switch

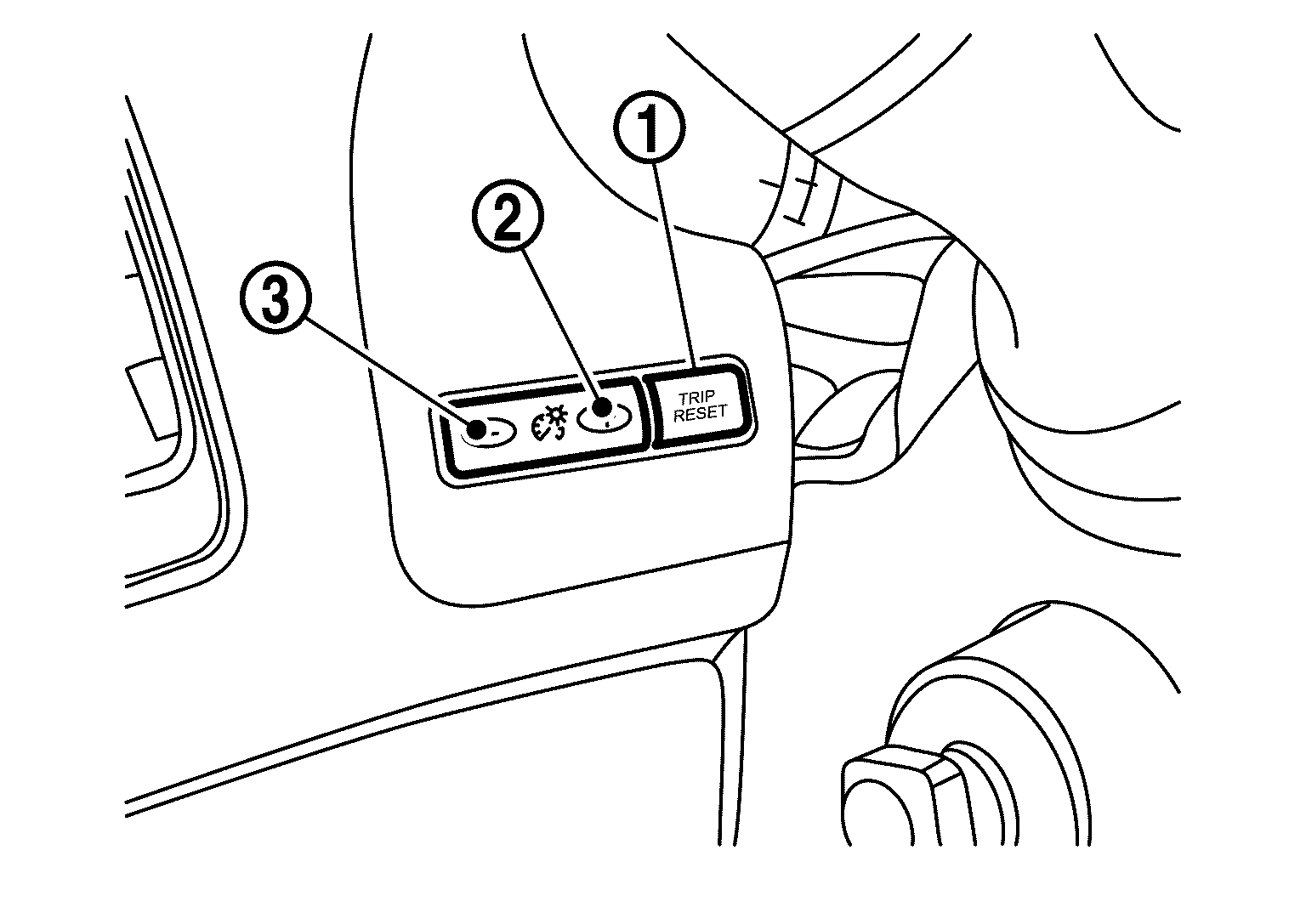

The illumination control switch is located on the cluster lid A.

Courtesy of NISSAN NORTH AMERICA, INC.
Transmits the following signals to the combination meter.
- Trip reset switch signal
- Illumination control switch signal (+)
- Illumination control switch signal (-)

No.	Switch name	Operation	Description
	Trip reset switch	Press	The trip meter can be switched between A and B. Trip meter A/B can be reset by pressing and holding the trip reset switch. A trip computer value displayed on the information display can be reset by pressing and holding the trip reset switch for 1 second or more. All trip computer values can be reset by pressing and holding the trip reset switch for 3 seconds or more.
	Illumination control switch (+)	Press	An illuminance level of the back light of the combination meter can be adjusted.
	Illumination control switch (-)	Press
